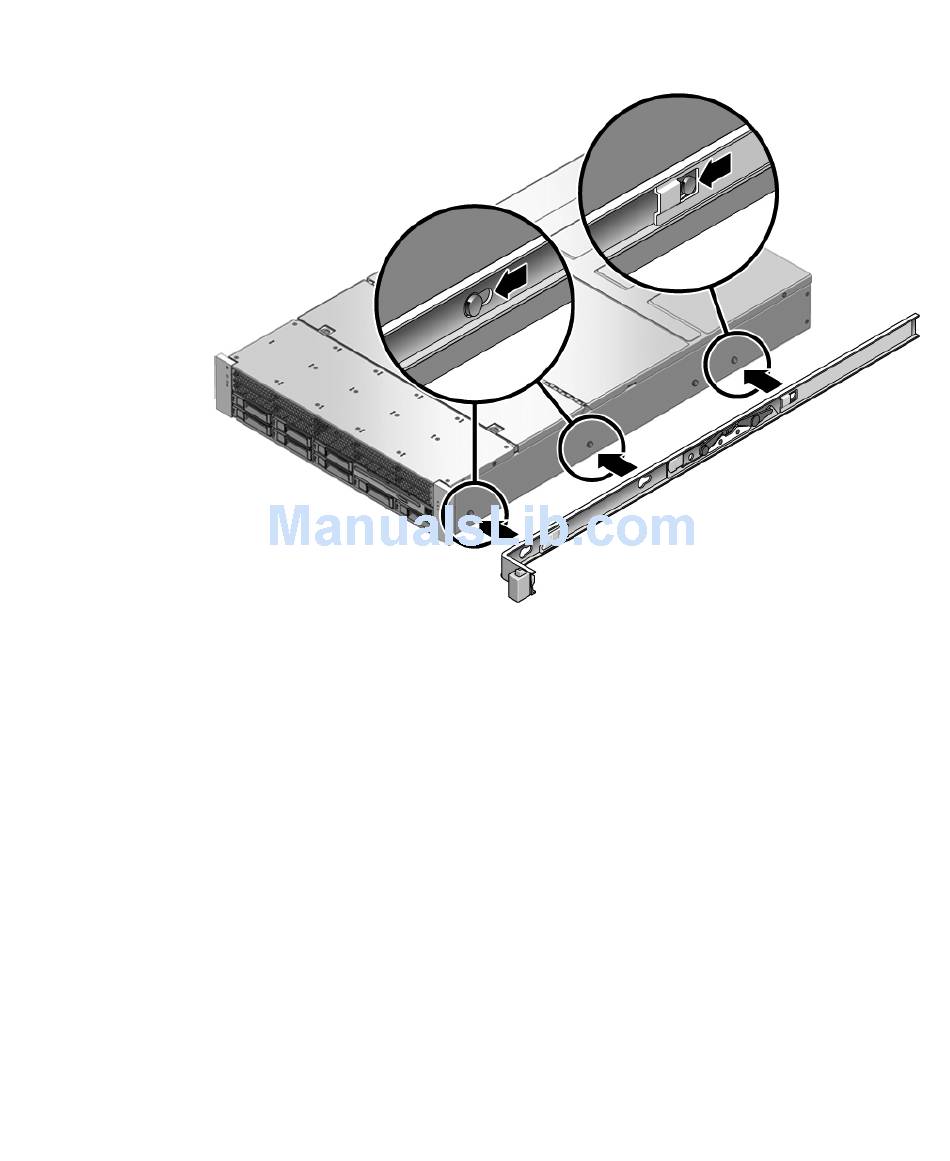

Attaching a Mounting Bracket to the Chassis
FIGURE:
b. Ensure that the heads of the locating pins protrude though the keyed
openings in the mounting bracket. Pull the mounting bracket toward the
front of the chassis until the bracket locks into place with an audible click.
c. Verify that all locating pins are trapped in the keyed openings and that the
correct locating pin has engaged the mounting bracket lock.
4. Attach the second mounting bracket to the left side of the chassis.
5. Determine which rack post holes to use for attaching the slide rails.
Use the mounting holes that are in line with the lower half of the 2U space.
6. Determine which screws you will use to mount the slide rails.
If your rack has threaded mounting holes in the rack posts, determine whether the
threads are metric or standard. Select the appropriate screws from the package
included in the mounting kit.
If your rack does not have threaded mounting holes, secure the mounting screws
with a caged nut.
7. Attach a slide rail to the right front rack post.
