Maintaining and Troubleshooting the Gateway ALR 8200 Server
System board
The system board functions as the main interface between the processor,
memory, and peripherals. See the table below and on the following pages
for the key to Figure 7.

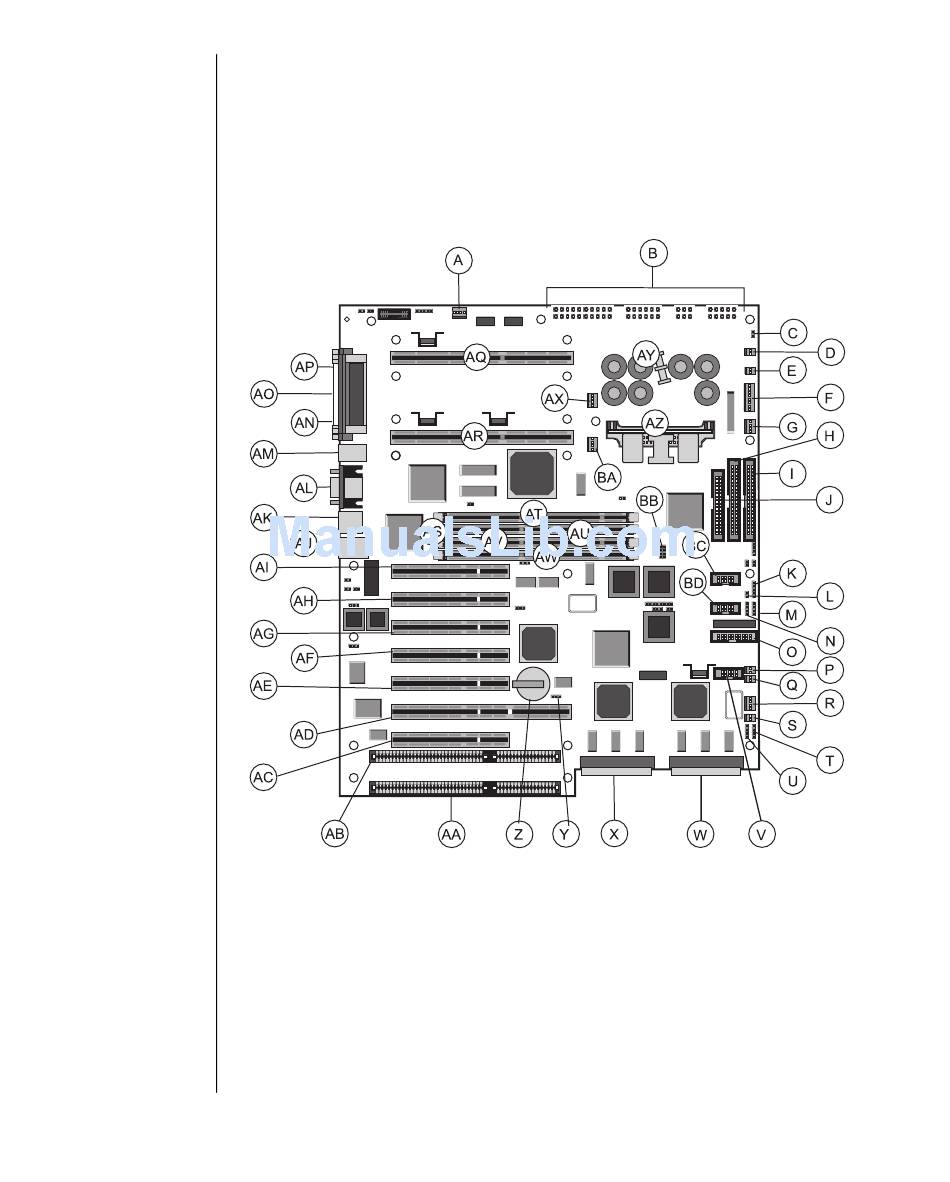

Figure 7: System Board Components
A
Chassis fan connector
B
Power connectors
Standby 3.3-V power connector
C
Soft power connector
D
PS fault reset connector
E
