Device Page

Select a device from the device list:
z
The
Device

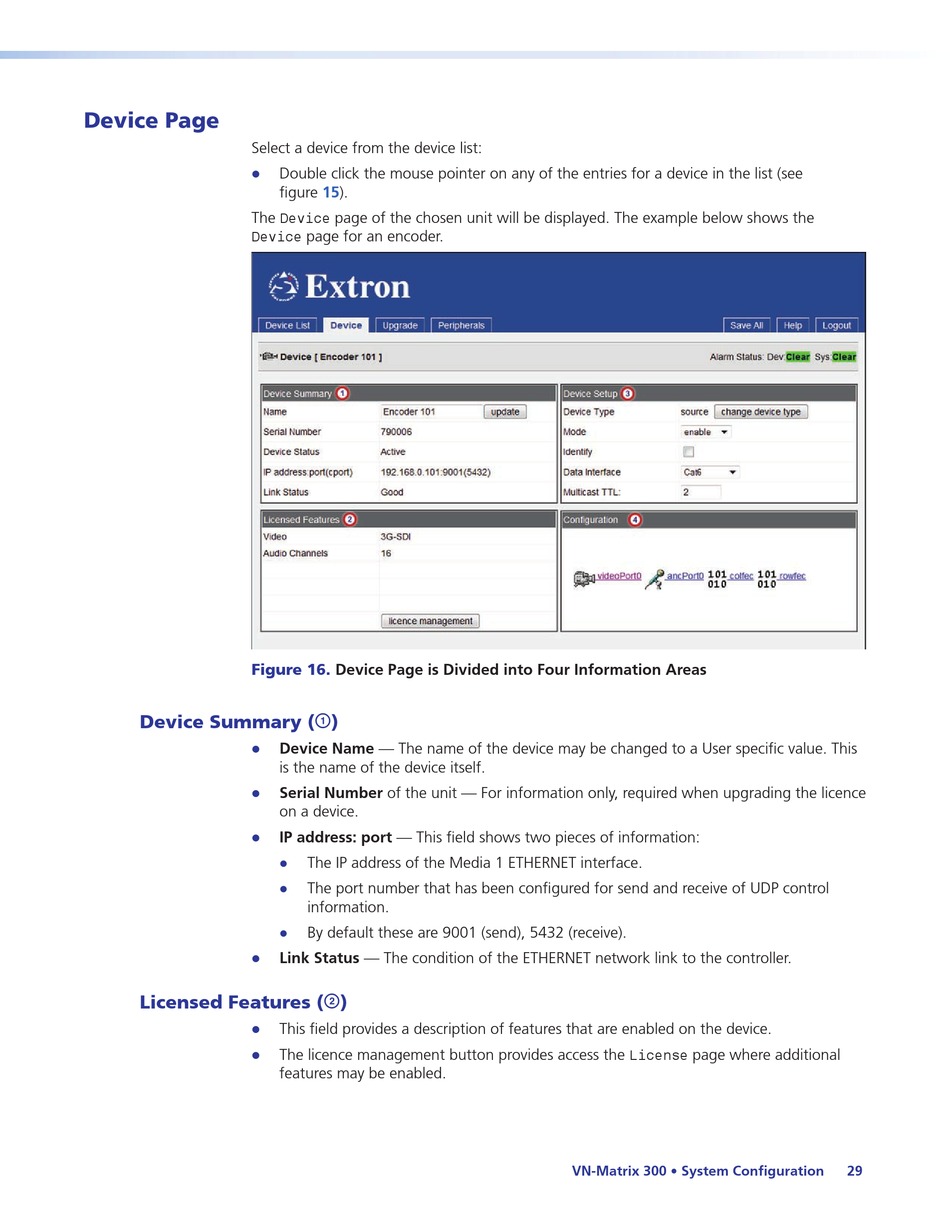

Figure 16.

Device Summary (

z
z
z
z

Licensed Features (

z
z
Double click the mouse pointer on any of the entries for a device in the list (see
figure 15).
Device page of the chosen unit will be displayed. The example below shows the
page for an encoder.
Device Page is Divided into Four Information Areas
a )
Device Name — The name of the device may be changed to a User specific value. This
is the name of the device itself.
Serial Number of the unit — For information only, required when upgrading the licence
on a device.
IP address: port — This field shows two pieces of information:
The IP address of the Media 1 ETHERNET interface.
z
The port number that has been configured for send and receive of UDP control
z
information.
By default these are 9001 (send), 5432 (receive).
z
Link Status — The condition of the ETHERNET network link to the controller.
b
)
This field provides a description of features that are enabled on the device.
The licence management button provides access the
features may be enabled.
License page where additional
