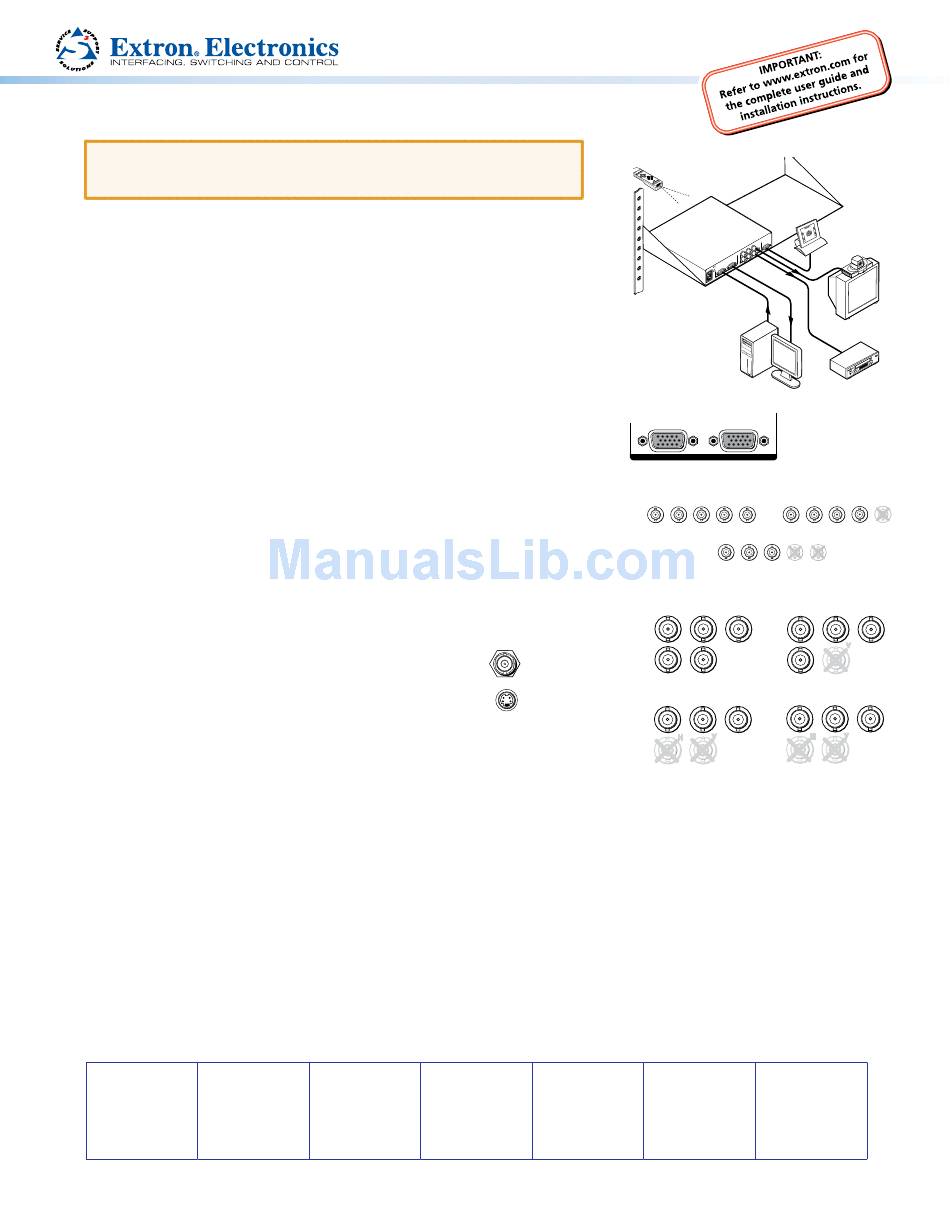

VSC 500/700/700D • Setup Guide
CAUTION: Installation and service must be performed by authorized
personnel only. These units must be installed in accordance
with national and local electrical codes.
To install the VSC 500/700/700D, follow these steps. For detailed instructions
see the VSC 500/700/700D User Guide.
Step 1
Disconnect all power from the VSC and any input or output devices.
If the scan converter is to be set on top of a table top or other furniture,
install the self-adhesive feet on the bottom corners of the VSC. If the VSC
is to be rack mounted, mount the scan converter in a rack (see "Mounting
the VSC" in the VSC 500/700/700D User Guide).
Step 2
Attach an input device and a loop-through device to the rear panel
of the VSC 500.
RGB input (VGA) connector
Buffered loop-through (VGA) connector
Attach an input device and a loop-through device to the
rear panel of the VSC 700/700D.
RGB input connectors and buffered loop-through connectors
Step 3
Attach an RGB or component video output device to the rear panel BNC connectors.
Step 4
Attach an S-video device to the S-video mini DIN connector
and an SDI device (700D only) to the SDI BNC connector.
Step 5
Plug the VSC, and input and output devices into a grounded AC source,
and turn on the input and output devices.
Step 6
Use the LCD menu screens or RS-232 programming to configure the VSC (in the VSC 500/700/700D User Guide, see the
"Installation and Operation" and the "RS-232 Programmer's Guide" sections).
Step 7
Use the front panel Adjust horizontal (
button and rotate the knobs to fill the display screen (see "Front Panel Features" in the VSC 500/700/700D User Guide).
Step 8
Use the front panel Menu and Next buttons to navigate to the Filters menu. Using the front panel Adjust horizontal (
{
or Adjust vertical ( ) adjustment knobs, adjust the flicker level from the Flicker filter submenu and adjust the detail level
from the Horizontal filter submenu (see "Filters menu (Filters)" in the VSC 500/700/700D User Guide).
