Alarm Logs

A historical list of the last 200 alarm events is provided in the page.
Alarm Logs

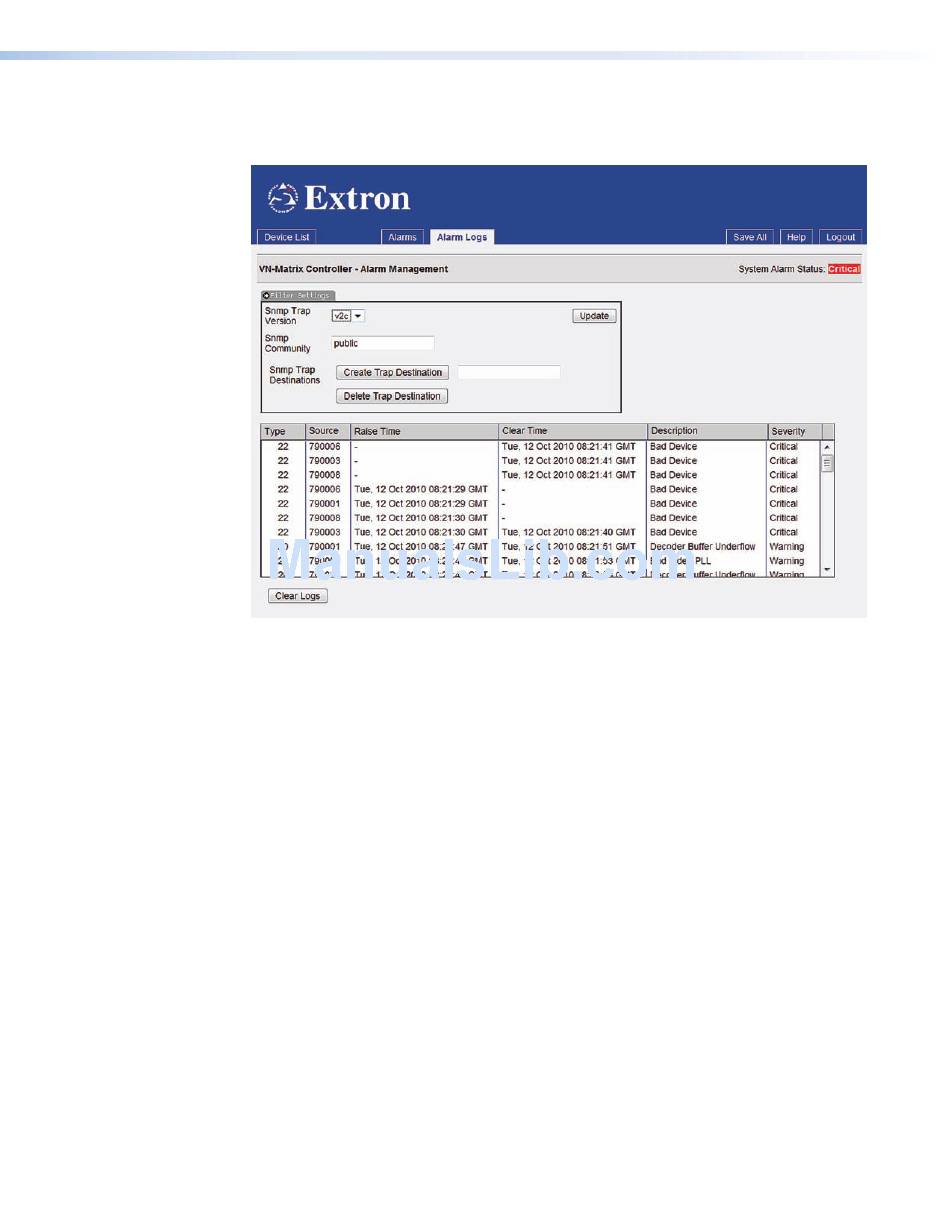

Figure 48.
Alarm Log Page Showing Error Conditions
The log provides data on when an alarm error condition was raised and cleared. Each event
is paired in the log so a raise and clear event is listed together.
The log holds a historical record of the last 200 alarm events. When more that 200 events
occur the oldest event is deleted from the log.
Alarm events that are listed in the log may be sorted by Type, Raise time and Severity.
Position the mouse pointer over the required sorting heading (Type, Raise time, or Severity)
and left click to change the list order. The list will be refreshed each time the sorting criteria
is applied.
VN-Matrix 300 • Alarms and SNMP 62
