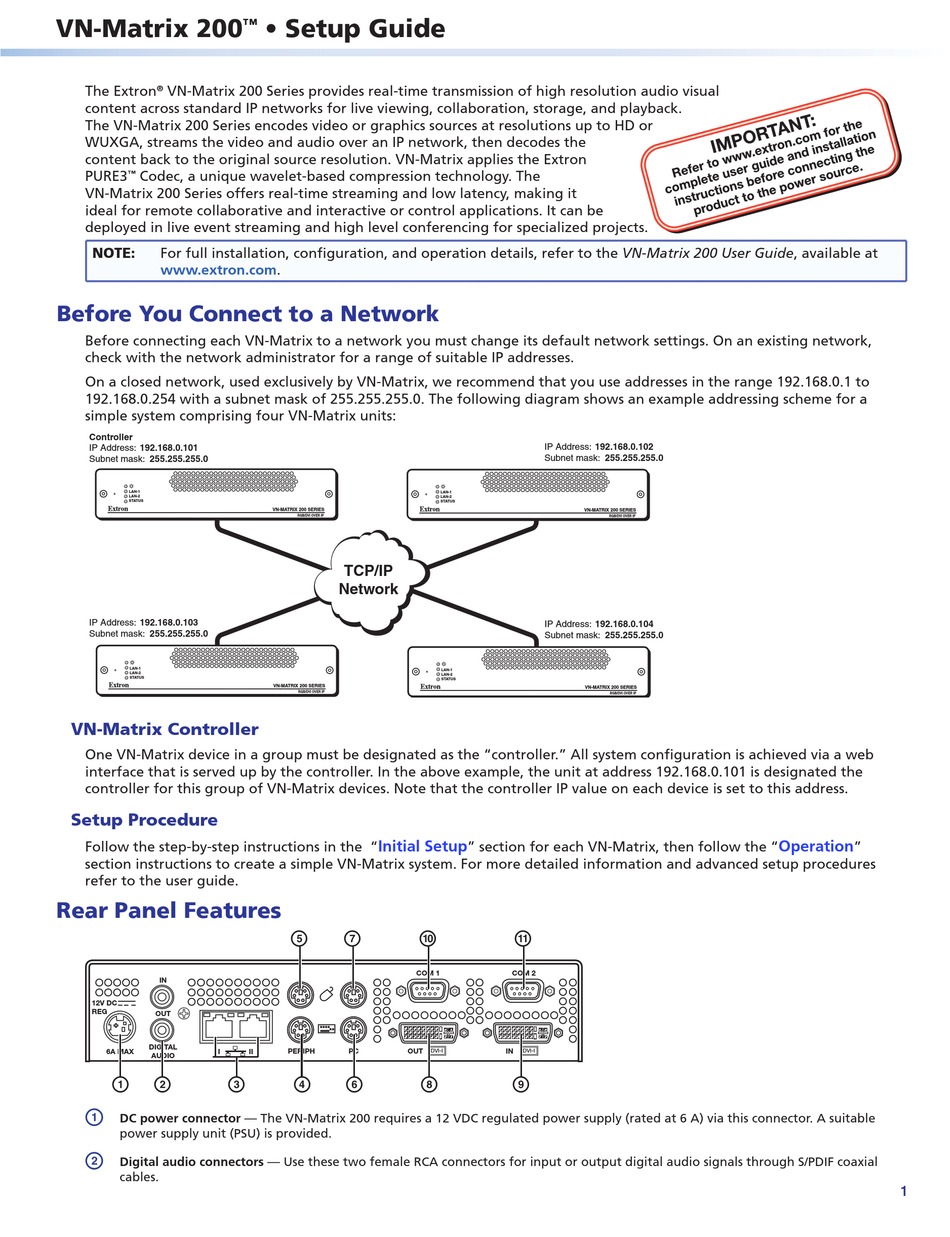

Extron electronics VN-Matrix 200 Series Setup Manual

VN-Matrix 200
The Extron VN-Matrix 200 Series provides real-time transmission of high resolution audio visual
®
content across standard IP networks for live viewing, collaboration, storage, and playback.
The VN-Matrix 200 Series encodes video or graphics sources at resolutions up to HD or
WUXGA, streams the video and audio over an IP network, then decodes the
content back to the original source resolution. VN-Matrix applies the Extron
PURE3 ™ Codec, a unique wavelet-based compression technology. The
VN-Matrix 200 Series offers real-time streaming and low latency, making it
ideal for remote collaborative and interactive or control applications. It can be
deployed in live event streaming and high level conferencing for specialized projects.
NOTE:
For full installation, configuration, and operation details, refer to the VN-Matrix 200 User Guide, available at
www.extron.com.
Before You Connect to a Network
Before connecting each VN-Matrix to a network you must change its default network settings. On an existing network,
check with the network administrator for a range of suitable IP addresses.
On a closed network, used exclusively by VN-Matrix, we recommend that you use addresses in the range 192.168.0.1 to
192.168.0.254 with a subnet mask of 255.255.255.0. The following diagram shows an example addressing scheme for a
simple system comprising four VN-Matrix units:
Controller
IP Address: 192.168.0.101
Subnet mask: 255.255.255.0
LAN-1
LAN-2
STATUS
IP Address: 192.168.0.103
Subnet mask: 255.255.255.0
LAN-1
LAN-2
STATUS
VN-Matrix Controller
One VN-Matrix device in a group must be designated as the "controller." All system configuration is achieved via a web
interface that is served up by the controller. In the above example, the unit at address 192.168.0.101 is designated the
controller for this group of VN-Matrix devices. Note that the controller IP value on each device is set to this address.
Setup Procedure
Follow the step-by-step instructions in the "
section instructions to create a simple VN-Matrix system. For more detailed information and advanced setup procedures
refer to the user guide.

Rear Panel Features

IN
12V DC
REG
OUT
DIGITAL
6A MAX I
AUDIO
a b c
a
DC power connector — The VN-Matrix 200 requires a 12 VDC regulated power supply (rated at 6 A) via this connector. A suitable
power supply unit (PSU) is provided.
b
Digital audio connectors — Use these two female RCA connectors for input or output digital audio signals through S/PDIF coaxial
cables.
• Setup Guide
™
VN-MATRIX 200 SERIES
RGB/DVI OVER IP
RGB/DVI OVER IP
TCP/IP
Network
VN-MATRIX 200 SERIES
RGB/DVI OVER IP
Initial Setup
e g j
COM 1
II PERIPH PC OUT
d f h
IP Address: 192.168.0.102
Subnet mask: 255.255.255.0
LAN-1
LAN-2
STATUS
VN-MATRIX 200 SERIES VN-MATRIX 200 SERIES
RGB/DVI OVER IP
IP Address: 192.168.0.104
Subnet mask: 255.255.255.0
LAN-1
LAN-2
STATUS
VN-MATRIX 200 SERIES
" section for each VN-Matrix, then follow the "
k
COM 2
DVI-I IN DVI-I
i
RGB/DVI OVER IP
RGB/DVI OVER IP
Operation
"
1
