Routed Network Configuration Example

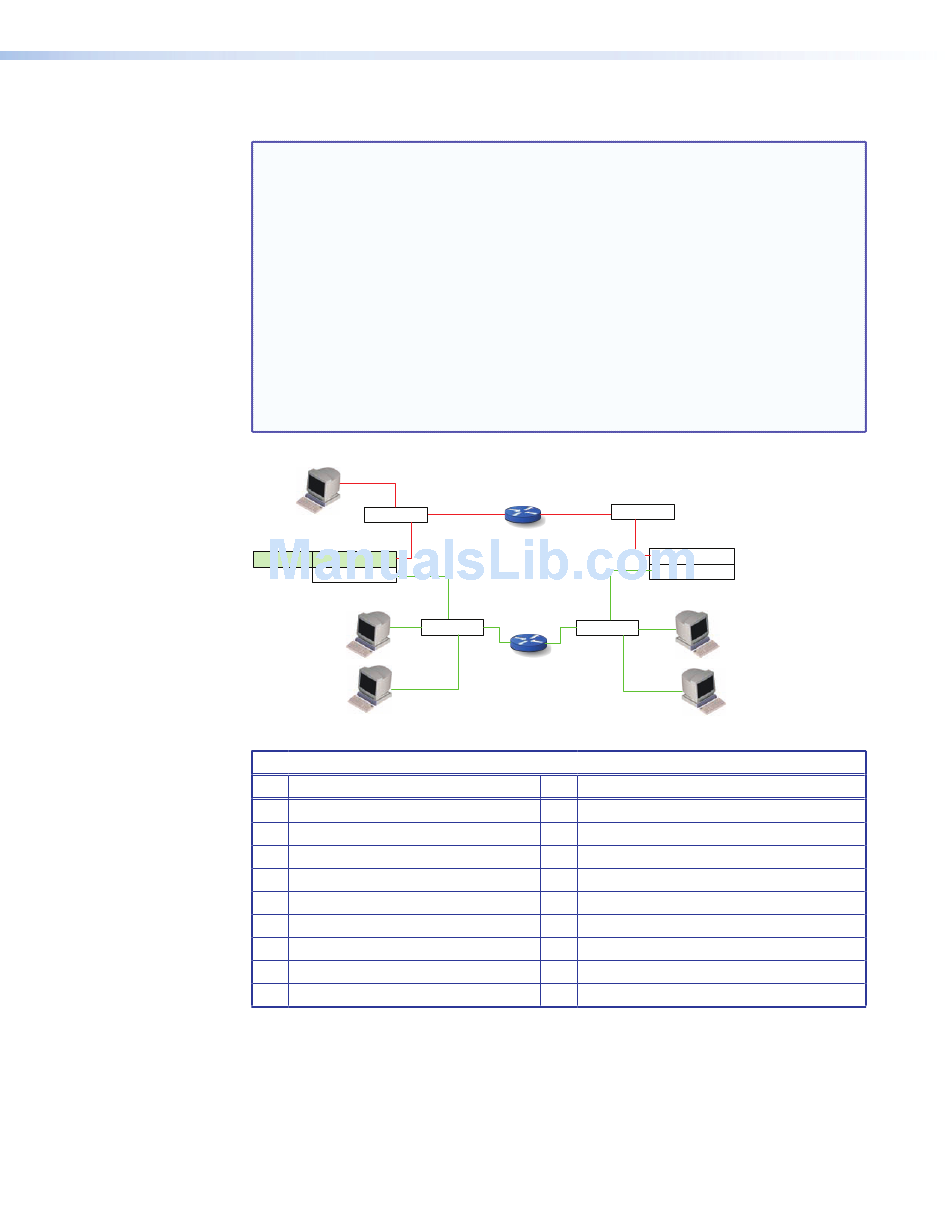

NOTES: This is an example of a routed network configuration.
Browser (NIC2)
192.168.0.3
Controller
Local NMS server
172.28.0.3
Browser (NIC1)
172.28.0.4
Unit 1
Network Port 1 (RJ45)
1 Boot method: static [dhcp]
2 Address: 172.28.0.1
3 Netmask: 255.255.0.0
5 Broadcast:
6 Mtu: 1500
8 Controller port: 5432
9 Exit
Unit 1 is configured as the controller, on IP address 192.168.0.1.
•
The two VN-Matrix 300 units are connected across a WAN via an external
router.
A gateway IP address is now set on NIC port 2 (option 14).
•
Only 1 gateway may be assigned.
•
Image data is transported over NIC 2 (the SFP connector).
The port used for image data transfer is set in the WEB interface, described
•
later.
Browser control is available on either NIC
Enter the IP address of the appropriate NIC in the browser address bar.
•
A network management system connected via NIC 1 (RJ45).
This provides isolation between image and SNMP traffic.
•
Browser address
192.168.0.1
Switch
192.168.0.250
Unit 1
NIC2:192.168.0.1
NIC1:172.28.0.1
Switch
Browser address
172.28.0.1
VN-Matrix 300 • Installation and Basic Setup Procedures
Switch
192.168.1.250
Unit 2
NIC2:192.168.1.1
NIC1:172.29.1.1
Local SNMP
Switch
Local NMS server
172.29.1.3
Browser (NIC1)
172.29.1.4
Network Port 2 (SFP)
11 Boot method: static [dhcp]
12 Address: 192.168.1.1
13 Netmask: 255.255.255.0
14 Gateway: 192.168.0.250
15 Broadcast:
16 Mtu: 1500
17 Controller ip: 192.168.0.1
18 Webserver port: 80
