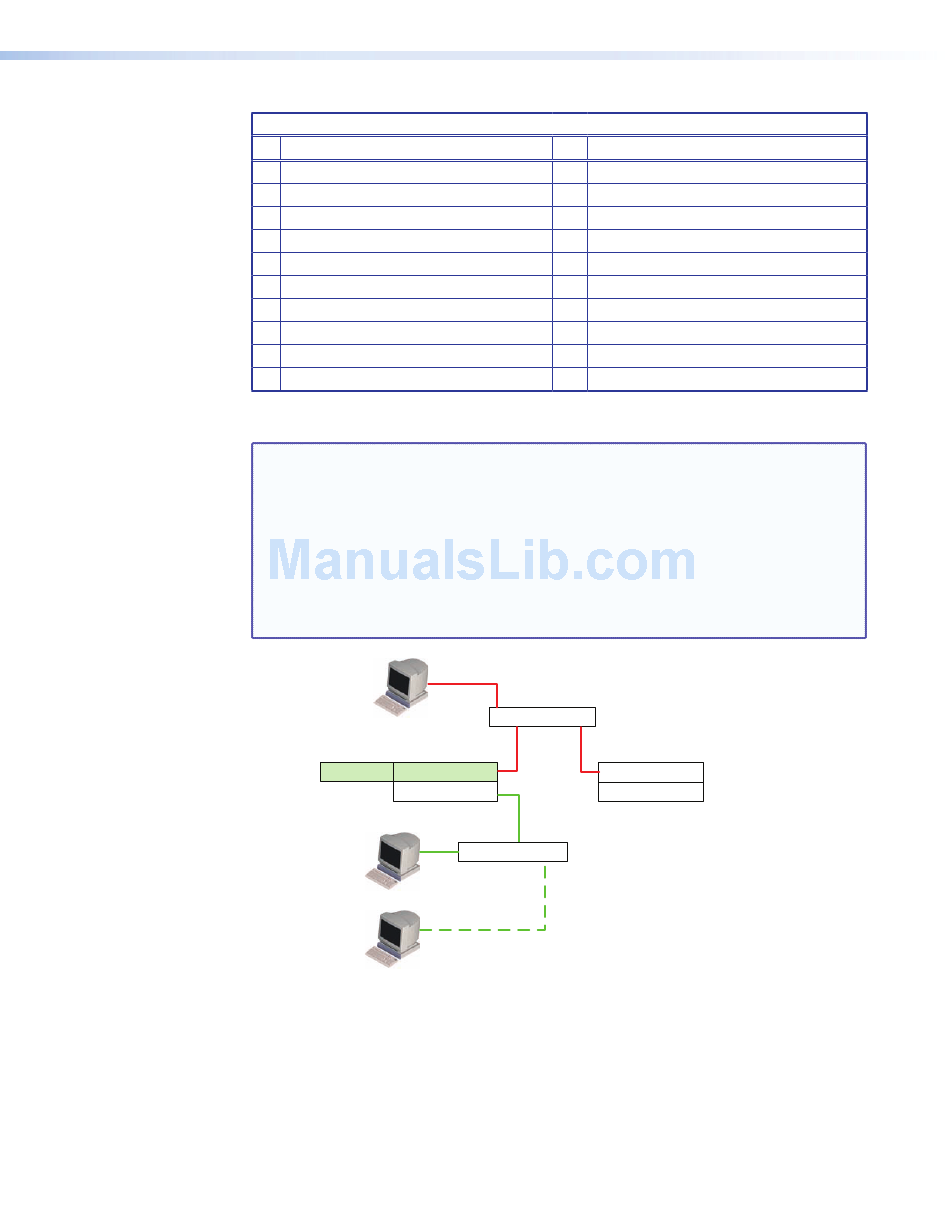

Switched Network Configuration, Example 2

NOTES: This example is the same as the first but the controller has now been assigned to
Browser (NIC2)
192.168.0.3
Local NMS server
172.28.0.3
Browser (NIC1)
172.28.0.3
NIC 2 on unit 1.
The browser interface is also available via NIC 1.
•
The controller interface is available on either NIC.
Image data is configured to run over NIC 2 (the SFP connector).
•
System control data is now sent over the 192.168.0.x network.
The controller IP address is now assigned in Option 17 under network port 2
•
in the configuration for both units.
Option 7 is no longer available under Network port 1.
Browser address
192.168.0.1
Unit 1
Controller NIC2:192.168.0.1
NIC1:172.28.0.1
Switch
Local NMS server
172.28.0.3
Browser address
172.28.0.1
VN-Matrix 300 • Installation and Basic Setup Procedures
Network Port 2 (SFP)
10 Speed/Duplex:Fiber_fixed_1000
11 Boot method: static [dhcp]
12 Address: 192.168.0.2
13 Netmask: 255.255.255.0
14 Gateway:
15 Broadcast:
16 Mtu: 1500
18 Webserver port: 80
Switch
Unit 2
NIC2:192.168.0.2
NIC1:172.28.0.2
