Specifications
Video Input
Connectors .. RCA/HD 15 pin D-Sub, Male
Nominal video level .. 0.5 - 1.2 V p-p
Input impedance .. 75 ohms
Return loss .. -30dB at 5 MHz
Superimposed DC .. 1.5 V
VGA Pass-Through
Gain .. Unity, Active
Bandwidth .. 60 MHz, -3dB
Frequency response .. less than ±0.1 dB to 30 MHz
Video Output
Connector .. HD 15 pin D-Sub, female
Nominal video level .. 1 V p-p fixed ±0.2 volts
Impedance .. 75 ohms
Return loss .. -30 dB at 5 MHz
DC offset .. ±5 mV input to output
Sync (5V TTL) .. Horizontal, Negative, Fixed 31.5kHz
.. Vertical, Negative, Fixed 60Hz
Remote Control System
Connector .. 3.5mm mono jack
Contact type .. non-latching:
.. Open = Video input
.. Closed = VGA input
General
Operating temperature range .. 0 - 40° C
Input voltage .. 9V, 500mA (Wall mount)
Power requirement .. 10 Watts
Safety regulation .. CE Safety / ETL 1950
EMI regulation .. CE / FCC class A
Dimensions .. 1.5" H x 5.0" W x 2.5" D
.. 3.8 cm H x 12.7 cm W x 6.4 cm D
Shipping Weight .. 3.0 lbs. (1.4 kg)
Warranty .. Two years, parts & labor
VLD 50 Part Numbers
USA & Canada .. 60-228-01
World .. 60-228-02
EXTRON ELECTRONICS EXTRON ELECTRONICS, EUROPE
1230 South Lewis Street Beeldschermweg 6C
Anaheim, CA 92805 3821 AH Amersfoort
(714) 491-1500 FAX (714) 491-1517 +31-33-453-4040 FAX +31-33-453-4050
U.S.A. The Netherlands
EXTRON ELECTRONICS, ASIA
79-05
41B Kreta Ayer Road
Singapore 089003
68-316-01
+65-226-0015 FAX +65-226-0019
Rev. A
Singapore

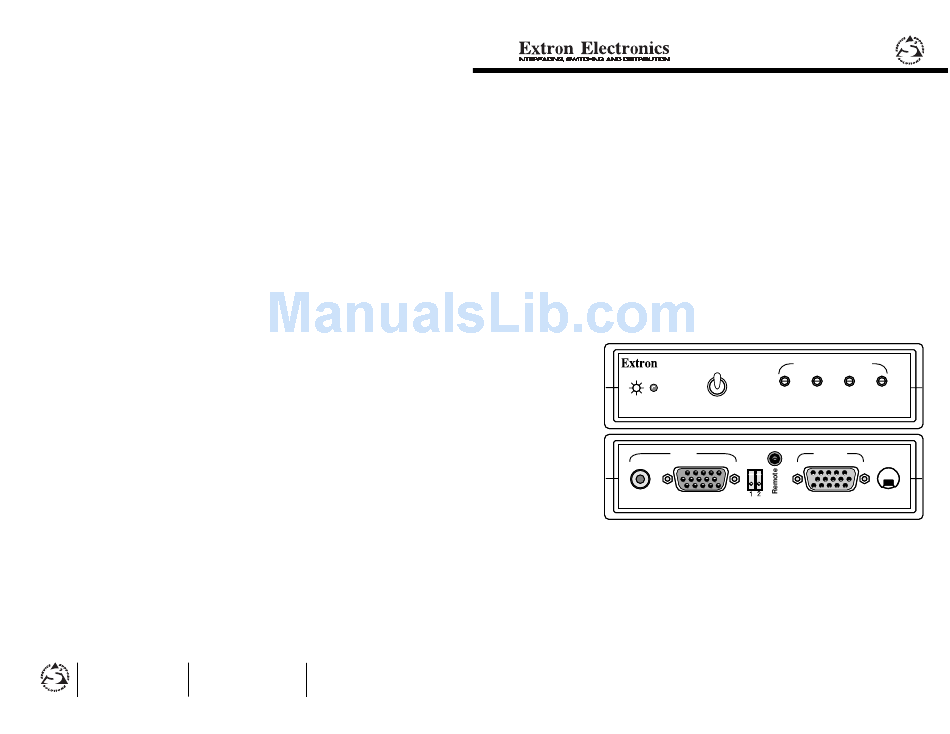

User's Guide
PICTURE CONTROLS
AUTO/VIDEO/REMOTE
COLOR
VGA
VLD 50
INPUT
VGA
VIDEO
VLD 50
Video to VGA
TINT CONT. H SHIFT
OUTPUT
VGA
Converter
