Unicast TCP
This method transports data using standard TCP (Transport Control Protocol) and should only
ever be used for single point-to-point transfer of data.
IP Tx 1
LAN-1
LAN-2 TEST
STATUS
ALARM
VN-MATRIX 300 SERIES
SERIAL DIGITAL VIDEO OVER IP
TCP/IP
Program Data
System Controller
Monitoring &
Control

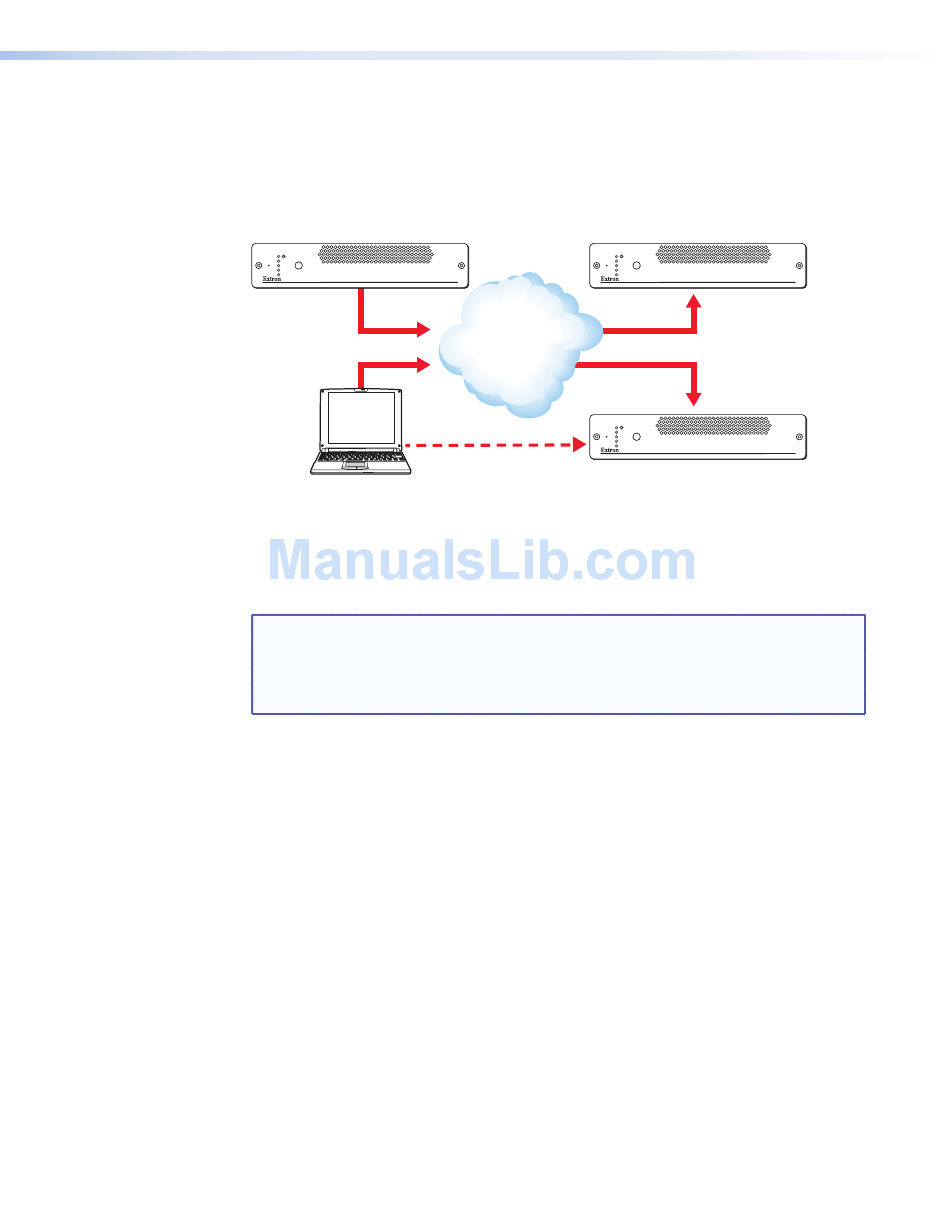

Figure 4.
Using Unicast TCP as a Single Point-to-Point Transfer of Data
TCP is a connection-based protocol and, therefore, data is guaranteed to be delivered.
However, in the event of excessive network traffic, delivery may be delayed impacting
real-time performance.
NOTE:
Multiple decoder connections are theoretically possible using this method but
NOT recommended. Each additional connection creates extra loading on the
encoder CPU which ultimately results in poor display performance. In addition,
multiple TCP streams carrying the same source data is an inefficient use of
network bandwidth.
Each encoder is 'paired' to a decoder
with a point to point data link.
IP Rx (a)
LAN-1
LAN-2 TEST
STATUS
ALARM
TCP/IP
Program Data
Network
IP Rx (b)
LAN-1
LAN-2 TEST
STATUS
ALARM
