Configuration Page — Videoport (Encoder)
The encoder
z
z
z

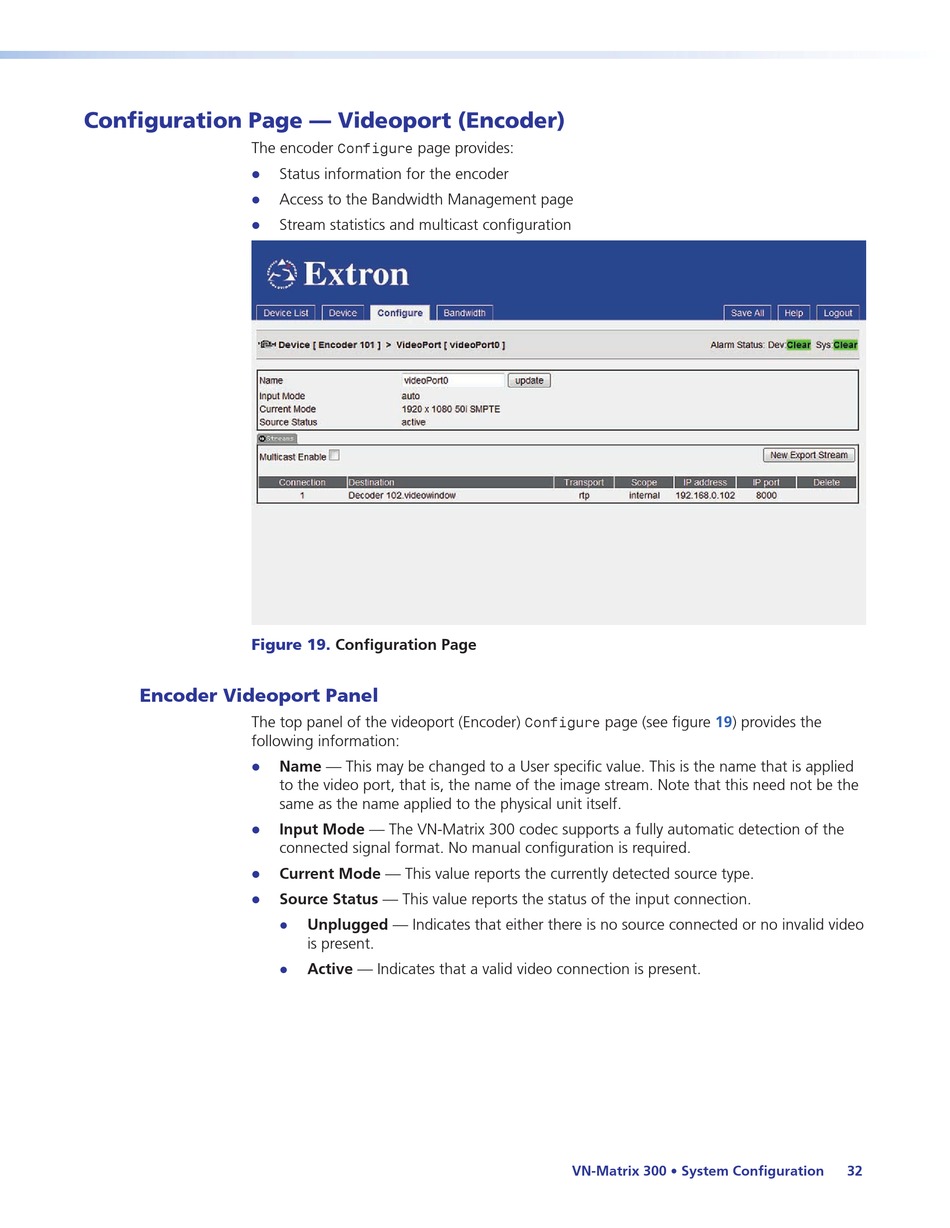

Figure 19.

Encoder Videoport Panel

The top panel of the videoport (Encoder)
following information:
z
z
z
z
page provides:
Configure
Status information for the encoder
Access to the Bandwidth Management page
Stream statistics and multicast configuration
Configuration Page
Name — This may be changed to a User specific value. This is the name that is applied
to the video port, that is, the name of the image stream. Note that this need not be the
same as the name applied to the physical unit itself.
Input Mode — The VN-Matrix 300 codec supports a fully automatic detection of the
connected signal format. No manual configuration is required.
Current Mode — This value reports the currently detected source type.
Source Status — This value reports the status of the input connection.
Unplugged — Indicates that either there is no source connected or no invalid video
z
is present.
Active — Indicates that a valid video connection is present.
z
page (see figure 19) provides the
Configure
