Video and Audio Data

Video and audio data may be transported over either of the NICs on the VN-Matrix 300 unit
and are independent of the system control data.
NOTE:

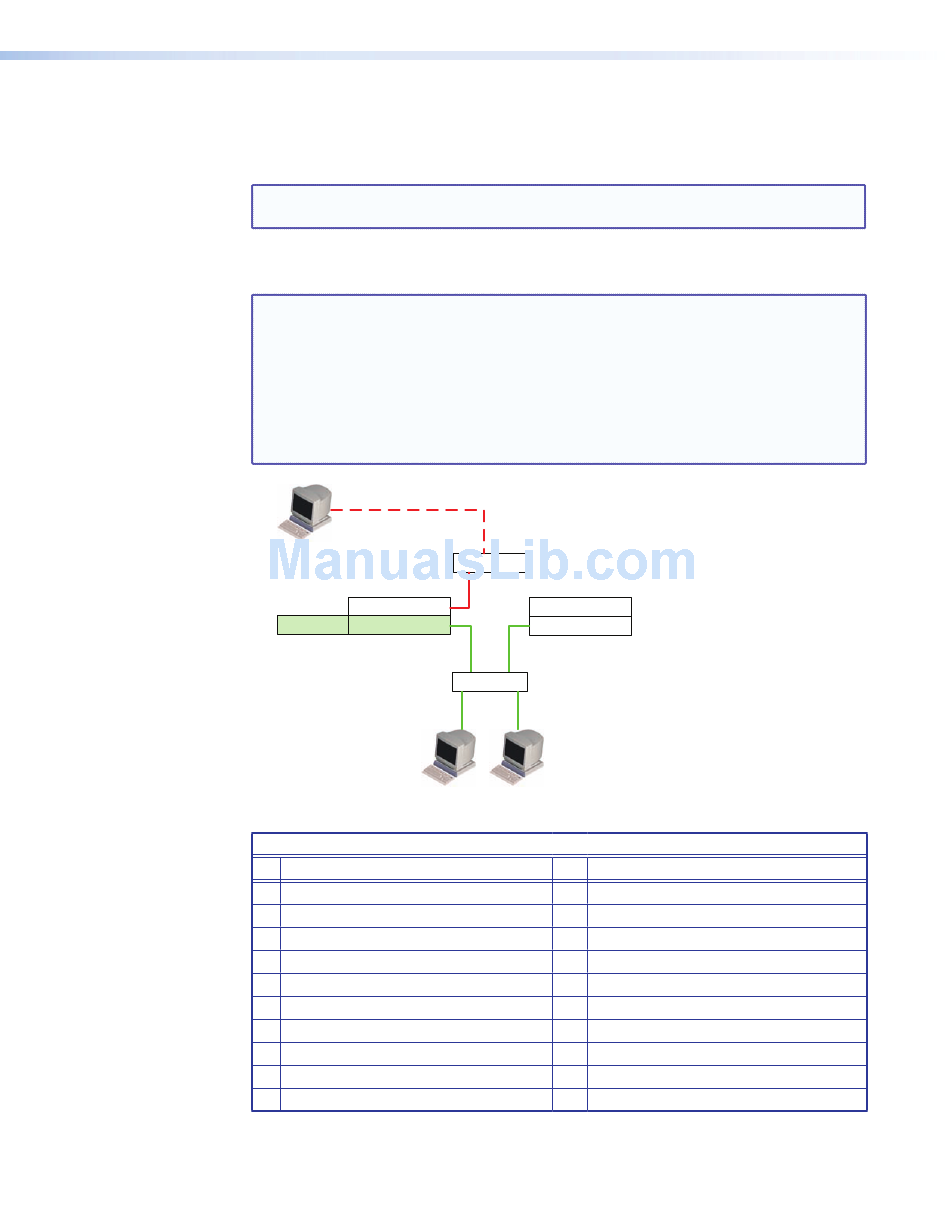

Switched Network Configuration, Example 1

NOTES: In this example, two VN-Matrix 300 units are configured to work across a
Browser (NIC2)
192.168.0.3
Controller
Unit 1
Network Port 1 (RJ45)
0 Speed/Duplex:auto_10_100_1000
1 Boot method: static [dhcp]
2 Address: 172.28.0.1
3 Netmask: 255.255.0.0
4 Gateway:
5 Broadcast:
6 Mtu: 1500
7 Controller ip: 172.28.0.1
8 Controller port: 5432
9 Exit
The browser is accessible via either network port on the unit that is configured
as the controller.
switched network.
Unit 1 is configured as the controller, on IP address 172.28.0.1.
•
This unit serves the management interface (GUI).
The browser (control) PC may be connected to either NIC.
•
System control data is always sent over the 172.28.x.x network
Image data is configured to run over NIC 1 (the RJ45 connector).
•
This is defined in the management interface, described later.
Browser address
192.168.0.1
Switch
Unit 1
NIC2:192.168.0.1
NIC1:172.28.0.1
Switch
Local NMS server
172.28.0.3 172.28.0.4
VN-Matrix 300 • Installation and Basic Setup Procedures
Unit 2
NIC2:192.168.0.2
NIC1:172.28.0.2
Browser address
172.28.0.1
Browser
Network Port 2 (SFP)
10 Speed/Duplex:Fiber_fixed_1000
11 Boot method: static [dhcp]
12 Address: 192.168.0.1
13 Netmask: 255.255.255.0
14 Gateway:
15 Broadcast:
16 Mtu: 1500
18 Webserver port: 80
