Bandwidth Management

The Bandwidth management section provides a method to set a maximum bit rate for the
encoded stream. It duplicates the Control mode settings already described in the
Control area (already described above) but includes two additional modes of control.

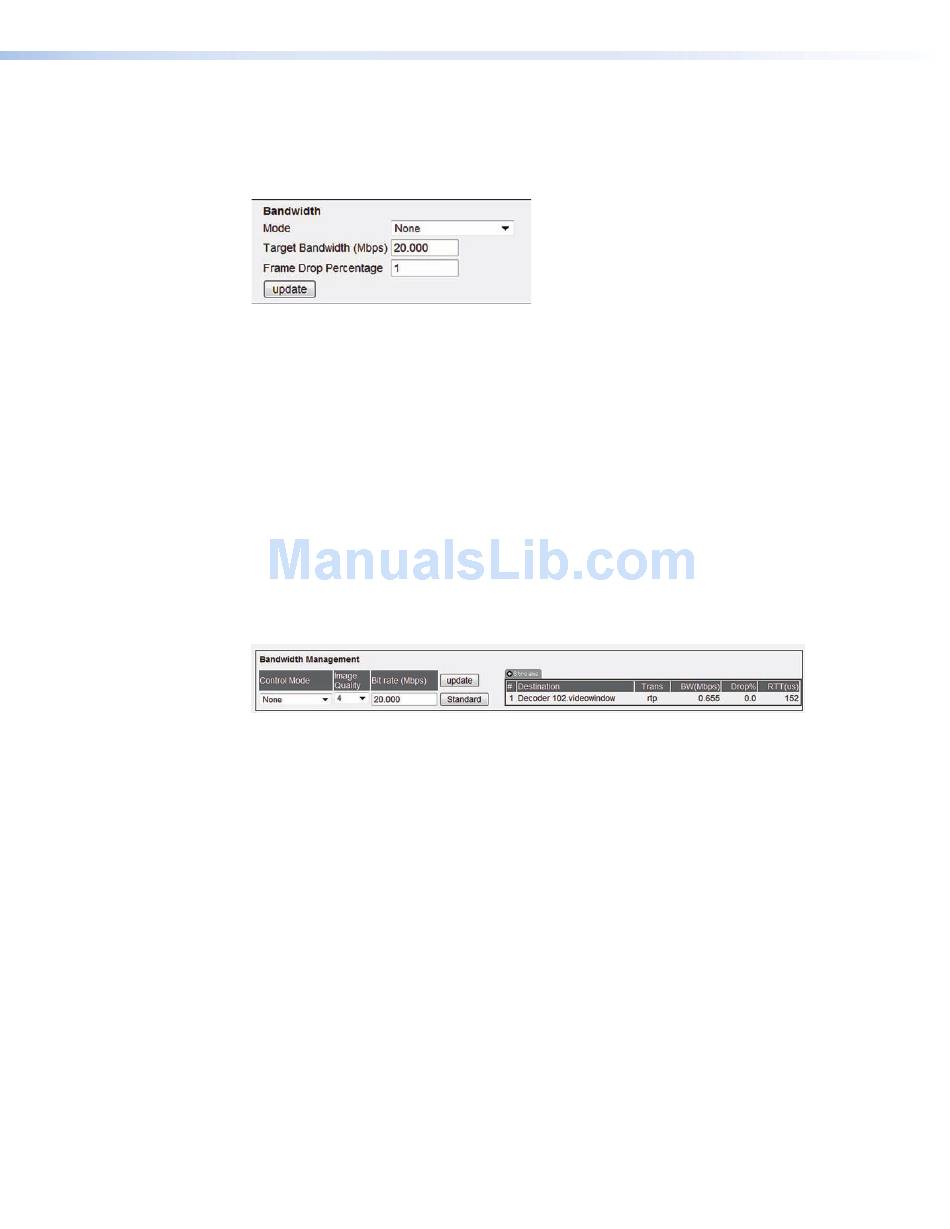

Figure 24.
Control Mode: Manual Frame drop
In this mode, the spatial image quality is held constant. However, a bit rate limit is applied
and maintained by controlling the frame update rate whenever this limit is exceeded. The
frame rate is managed by setting a value for the
percentage of frames that are dropped whenever the bit rate limit is exceeded.
Control Mode: Shared Flow rate
This mode is the same as the
aggregate value for all streams from the encoder, as would be the case if multiple
(maximum 4) Unicast streams are chosen as the data transport method.

Streams Panel

The streams panel provides statistics on all of the active connections running on the encoder.
Figure 25.
The bit rate figure that is reported here is the total for all streams, including video, ancillary
(audio) and FEC.
Bandwidth Management Section
Peak flow
Streams Panel Section
Frame Drop Percentage.
rate but the bit rate control is applied to the
VN-Matrix 300 • System Configuration
Standard
This is the
