Extron electronics VSC 50 User Manual

Specifications

picture detail. It may be appropriate to change the switch
position after changing the position of the Over/Under switch.
Signal Lock LED — When lit, the Signal Lock LED indicates that
12
the input signal is within the range (800 x 600) of the VSC 50;
when blinking, it indicates that the signal is out of range; when
off, it indicates that no signal is present.
Specifications
Video input
Number/signal type ................... 1 VGA, 1 Mac analog RGBHV, RGBS, RGsB
Connectors .................................... VGA ........... 15-pin HD female
Mac ............. 15-pin D female
Nominal level(s) ........................... Analog ....... 0.7V p-p
Minimum/maximum level(s) .... Analog ....... 0V to 2V p-p with no offset
Impedance .................................... High Z or 75 ohms (DIP switch-selectable)
Horizontal frequency .................. Autoscan 24 kHz to 48 kHz
Vertical frequency ....................... Autoscan 50 Hz to 120 Hz
Resolution range .......................... Autoscan 560 x 384 to 832 x 624
Video processing
Encoder ......................................... 10 bit digital
Digital sampling .......................... 24 bit, 8 bits per color; 40 MHz
Colors ............................................ 16.8 million
Vertical filtering ........................... 2 levels
Video output
Number/signal type .................. 1 S-video .................... NTSC, 15.75 kHz, 525 lines,
....................................................... 1 composite video ...... NTSC, 15.75 kHz, 525 lines,
Connectors ................................... S-video ....................... 1 4-pin mini-DIN female
Composite video ...... 1 BNC female
Nominal level ............................... 1.0V p-p
Impedance .................................... 75 ohms
Sync
Input type ..................................... Autodetect RGBHV, RGBS, RGsB
Standards ...................................... NTSC 3.58 and PAL
Input level ..................................... 1.5V to 5.0V p-p
Input impedance .......................... 75 ohms
4 VSC 50 Scan Converter • Specifications
Specifications, cont'd
General
Power ............................................. 100VAC to 240VAC, 50/60 Hz, 15 watts, internal,
Temperature/humidity .............. Storage -40° to +158°F (-40° to +70°C) / 10% to
Rack mount ................................... No
Enclosure type .............................. Metal
Enclosure dimensions ................. 2.25" H x 9.00" W x 6.25" D
Shipping weight .......................... 6 lbs (2.7 kg)
Vibration ....................................... NSTA 1A in carton (National Safe Transit
Approvals ..................................... UL, CUL, CE, FCC Class A
MTBF ............................................. 30,000 hours
Warranty ....................................... 2 years parts and labor
Included and Optional Cables and Adapters
• HV/VGA male-to-male adapter
• SVHS 6' S-video cable (6 feet/1.8 meters)
• SHR 1-6' Super High Resolution cable
• RCA-6' male-to-male cable
• BNC male to RCA female adapter
or PAL, 15.5 kHz, 625 lines
or PAL, 15.5 kHz, 625 lines
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Note: This unit was tested with shielded cables on the peripheral devices. Shielded cables
must be used with the unit to ensure compliance.
Extron Electronics, USA
1230 South Lewis Street, Anaheim, CA 92805
800.633.9876 714.491.1500 FAX 714.491.1517
USA
auto-switchable
90%, non-condensing
Operating +32° to +122°F (0° to +50°C) / 10% to
90%, non-condensing
5.72 cm H x 22.86 cm W x 15.88 cm D
(Add 0.5" for front panel knobs and 0.75" for rear
panel connectors.)
Association)
Specifications are subject to change without notice.
Included
Included
Optional
Optional
Optional
FCC Class A Notice
Extron Electronics, Europe Extron Electronics, Asia Extron Electronics Information
Beeldschermweg 6C, 3821 AH Amersfoort 135 Joo Seng Rd. #04-01, PM Industrial Bldg. ExtronWEB
+31.33.453.4040 FAX +31.33.453.4050 +65.383.4400 FAX +65.383.4664 ExtronFAX
The Netherlands Singapore 368363 24-hour access—worldwide!
© 2000 Extron Electronics. All rights reserved.
User's Guide
26-462-01
26-316-02
26-383-12
26-345-01
10-264-01
™ : www.extron.com
™ : 714.491.0192

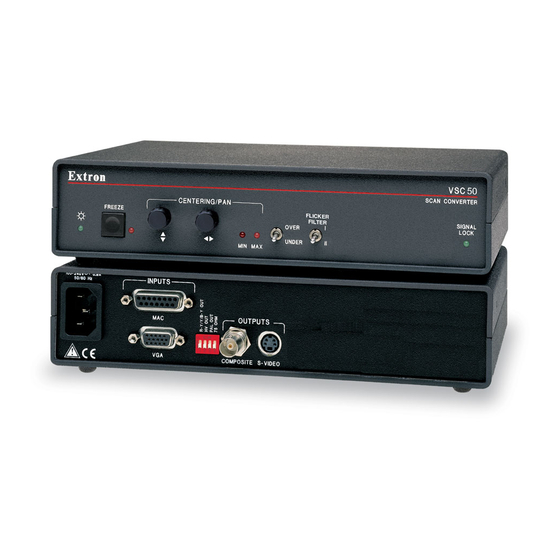

VSC 50
Computer-to-video Scan Converter
68-421-01 C
Printed in the USA
10 00
