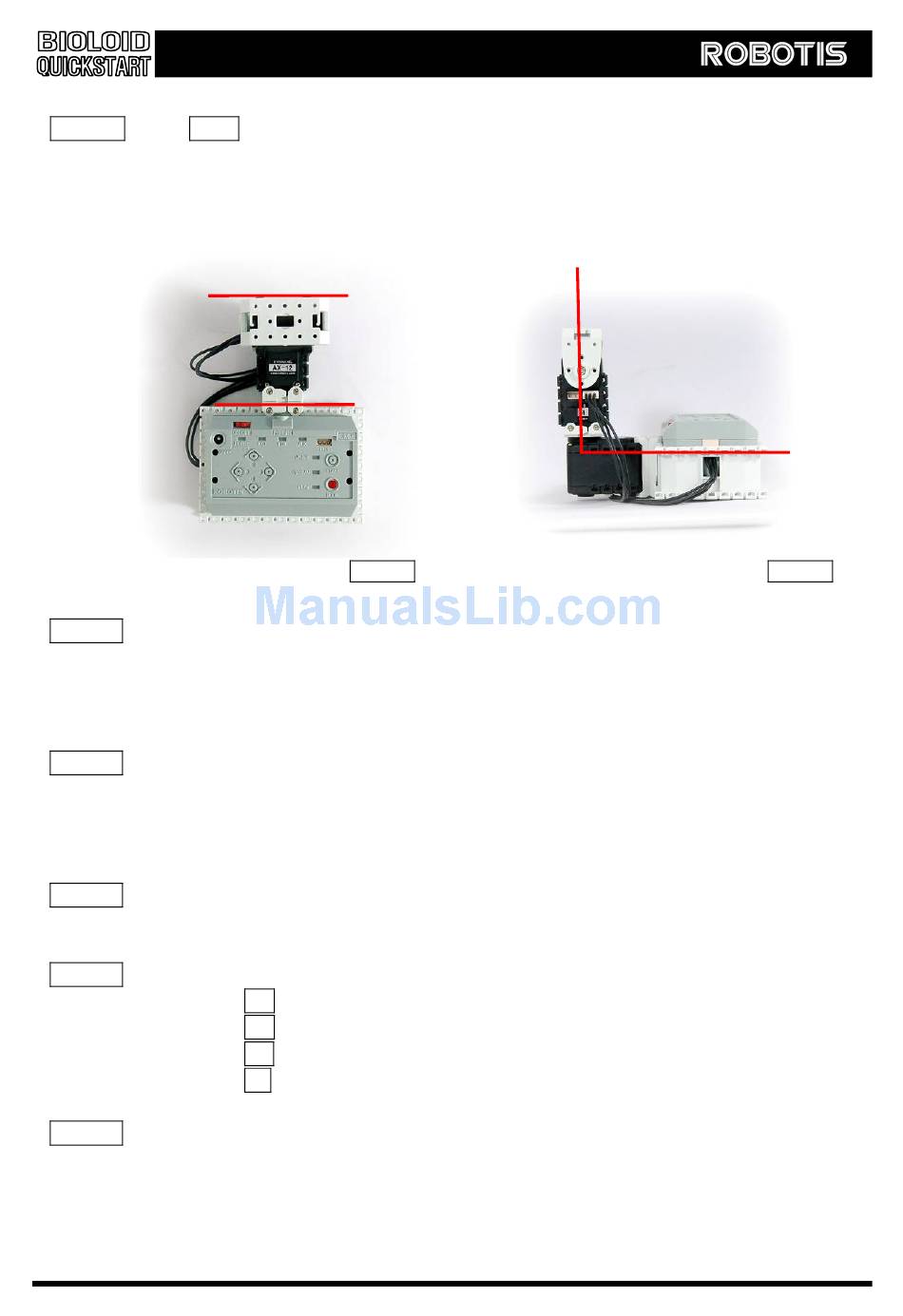

Step 5 When START button of CM-5 is pressed, the robot will look like the figures below. If
different, check the assembly points of Dynamixel using the assembly diagram..
※ Top View
The Pan Tilt is parallel to
Step 6 Close the CM-5 online robot activation.
(4) Operating the Robot
Operate completed robot using demonstration(example)program.
Step 1 Download "Example" file which is behavior control program.
(In CD, Applied Robots\Beginner\Pan Tilt\DemoExample(Pan
※Refer to "How to download Behavior Control Program" from "2-1-2 Downloading Robot
Programs.".
Step 2 Operate offline robot.
※ Refer to "Offline Robot Activation"from "2-1-3. Operating the Robots"
.
Step 3 Operation of the robot
- If you keep pressing
- If you keep pressing
- If you keep pressing
- If you keep pressing
Step 4 Compare with the provided video clip
(In CD, Applied Robots\Beginner\Pan Tilt \DemoExample(Pan
CM-5
U button of CM-5, the tilt joint moves upward.
D button of CM-5, the tilt joint moves downward
R button of CM-5, the pan joint rotates to the right.
L button of CM-5, the pan joint rotates to the left
※ Side View
The Pan Tilt is perpendicular to
Tilt).bpg)
Tilt).wmv)
