3.9.13 CR Encoder Strip and its Guard Film

CR encoder strip

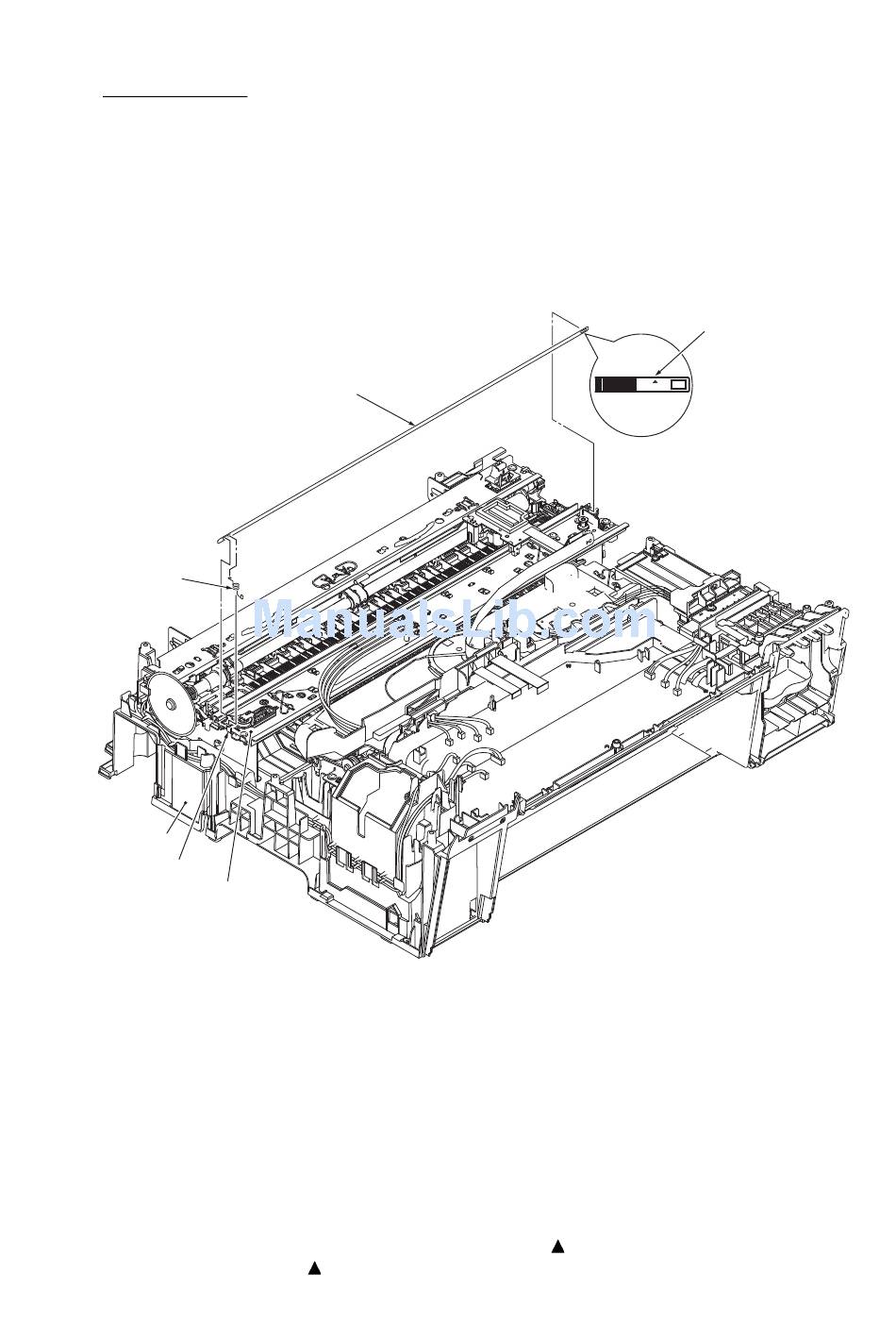

(1) At the left end of the CR support chassis, push the rear end of the encoder strip spring
inwards, unhook the left end of the CR encoder strip from the spring, and then unhook the
right end from the CR support chassis.
(2) Slide the CR encoder strip to the left, align the rectangular hole in the left end of the strip
with the boss of the strip support and take the strip off.
Note: Take care not to scratch or damage the encoder strip. If it is stained or damaged,
replace it.
Encoder strip spring
Lower cover
Strip support
CR support chassis
Assembling Note: Set the CR encoder strip so that the
motor side) and the mark
CR encoder strip
points upwards as shown above.
marked end is to the right (carriage
-
3-105
This should point up.
(3_072)
