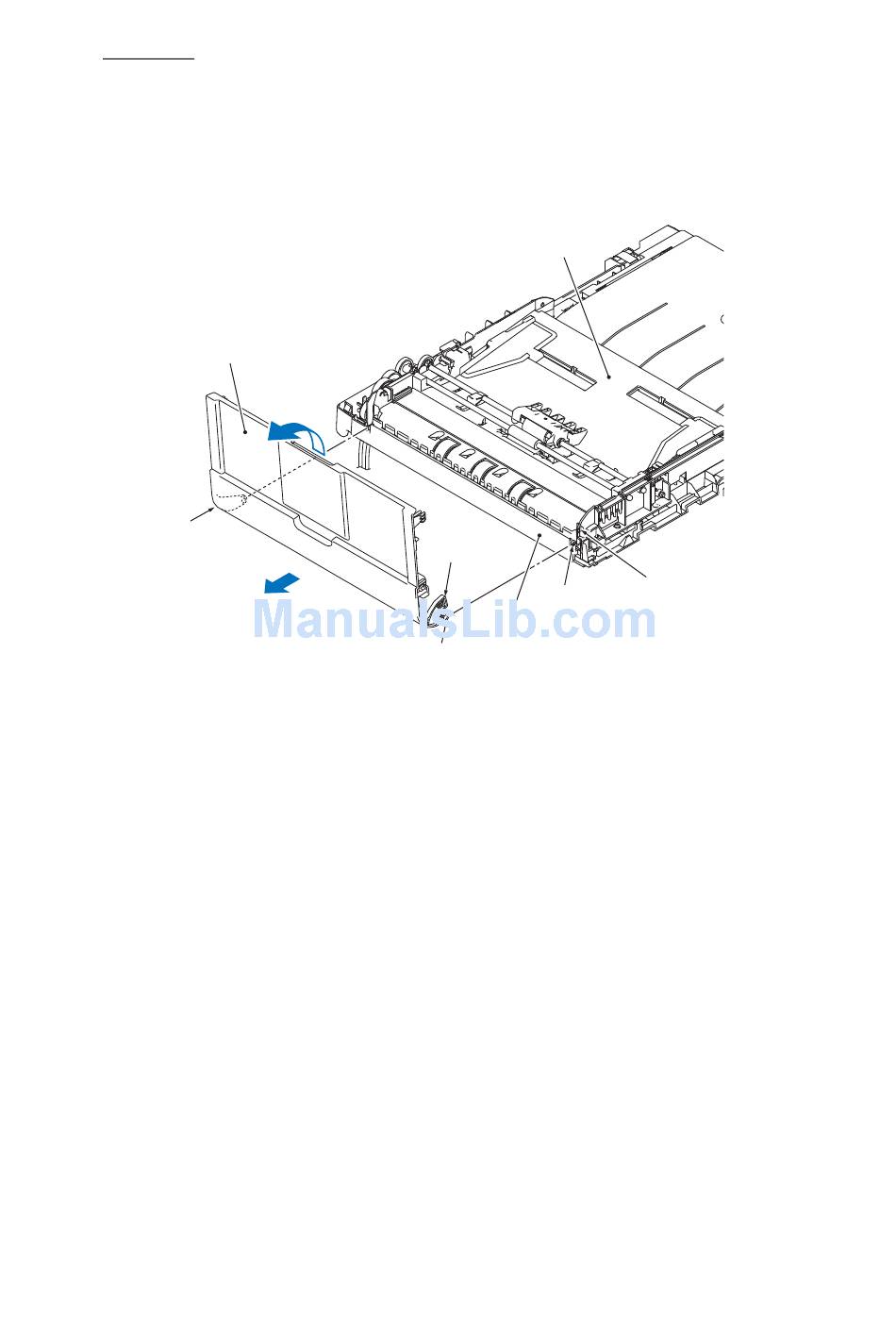

(16) Open the ADF cover fully.

(17) Slightly pull the rear end of the ADF cover to the left to release the rear hinge from the boss

on the document cover. Then release the front-end groove and front hinge from bosses "e"

and "f," respectively.

Upper ADF chute

Document cover
