Post-assembly checks

Perform these checks after you assemble the pump, then continue with pump startup:
• Rotate the shaft by hand in order to make sure that it rotates easily and smoothly and that there is no
rubbing.
• Open the isolation valves and check the pump for leaks.

Reinstall the back pull-out assembly for the HT 3196

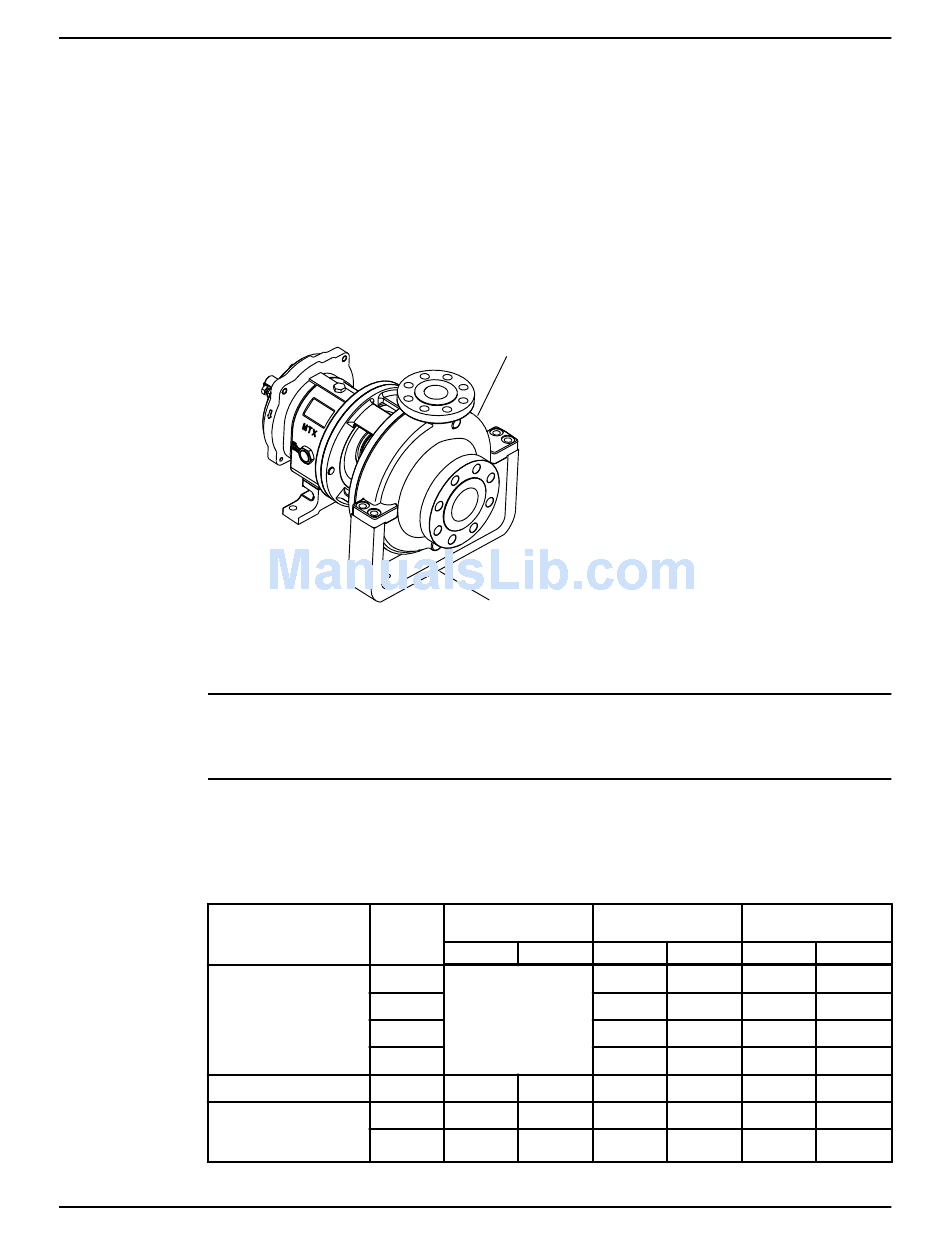

1. Attach the casing support (239) to the casing (100).
The stamped part number on the casing support is located on the left side when you face the casing
suction.
2. Reinstall the coupling guard.
Refer to the Install the coupling guard section for more information.
NOTICE:
Risk of damage to the mechanical seal or shaft sleeve on units supplied with cartridge mechanical seals.
Prior to startup, make sure to tighten the set screws in the seal locking ring and remove the centering clips.

Assembly references

Bolt torque values
This table provides the bolt torque values.
Table 17: Bolt torque, lb-ft (Nm)
Location
Casing bolts (370) or
casing nuts (425)
Frame-to-adapter bolts All
Bearing-clamp ring
bolts (236A) - duplex
bearing only
Model HT 3196 i-FRAME Installation, Operation, and Maintenance Manual
100
239
Frame 3196, CV 3196, LF
3196, 3796
Lube Dry
6-in. STi
Refer to the
8-in. STi
maximum torque
values in lb-ft (Nm)
MTi, LTi
for casing bolts table.
XLT-i, i17
20 (27) 30 (40)
STi, MTi 10* (1.1) 17* (1.9)
LTi 55* (6.2) 83* (9.4)
NM 3196 3198
Lube Dry Lube
27 (36) 40 (53) N/A
20 (27) 30 (40) 35 (47)
27 (36) 40 (53) 35 (47)
N/A N/A N/A
20 (27) 30 (40) 20 (27)
10* (1.1) 17* (1.9) 10* (1.1)
55* (6.2) 83* (9.4) 55* (6.2)
Maintenance
Dry
N/A
53 (71)
53 (71)
N/A
30 (40)
17* (1.9)
83* (9.4)
