Installation
1. Clean all the areas of the baseplate that will come into contact with the grout.
2. Build a dam around the foundation.
3. Thoroughly wet the foundation that will come into contact with the grout.
4. Pour grout through the grout hole into the baseplate up to the level of the dam.
When you pour the grout, remove air bubbles from it by using one of these methods:
5. Allow the grout to set.
1.
2.
3.
4.
5.
6.
7.
6. Fill the remainder of the baseplate with grout, and allow the grout to set for at least 48 hours.
1.
2.
3.
4.
5.
7. Tighten the foundation bolts.

Piping checklists

General piping checklist

Precautions
CAUTION:
• Never draw piping into place by using force at the flanged connections of the pump. This can impose
dangerous strains on the unit and cause misalignment between the pump and driver. Pipe strain
adversely affects the operation of the pump, which results in physical injury and damage to the
equipment.
• Vary the capacity with the regulating valve in the discharge line. Never throttle the flow from the
suction side. This action can result in decreased performance, unexpected heat generation, and
equipment damage.
34
• Puddle with a vibrator.
• Pump the grout into place.
1
7 2
6
4
5

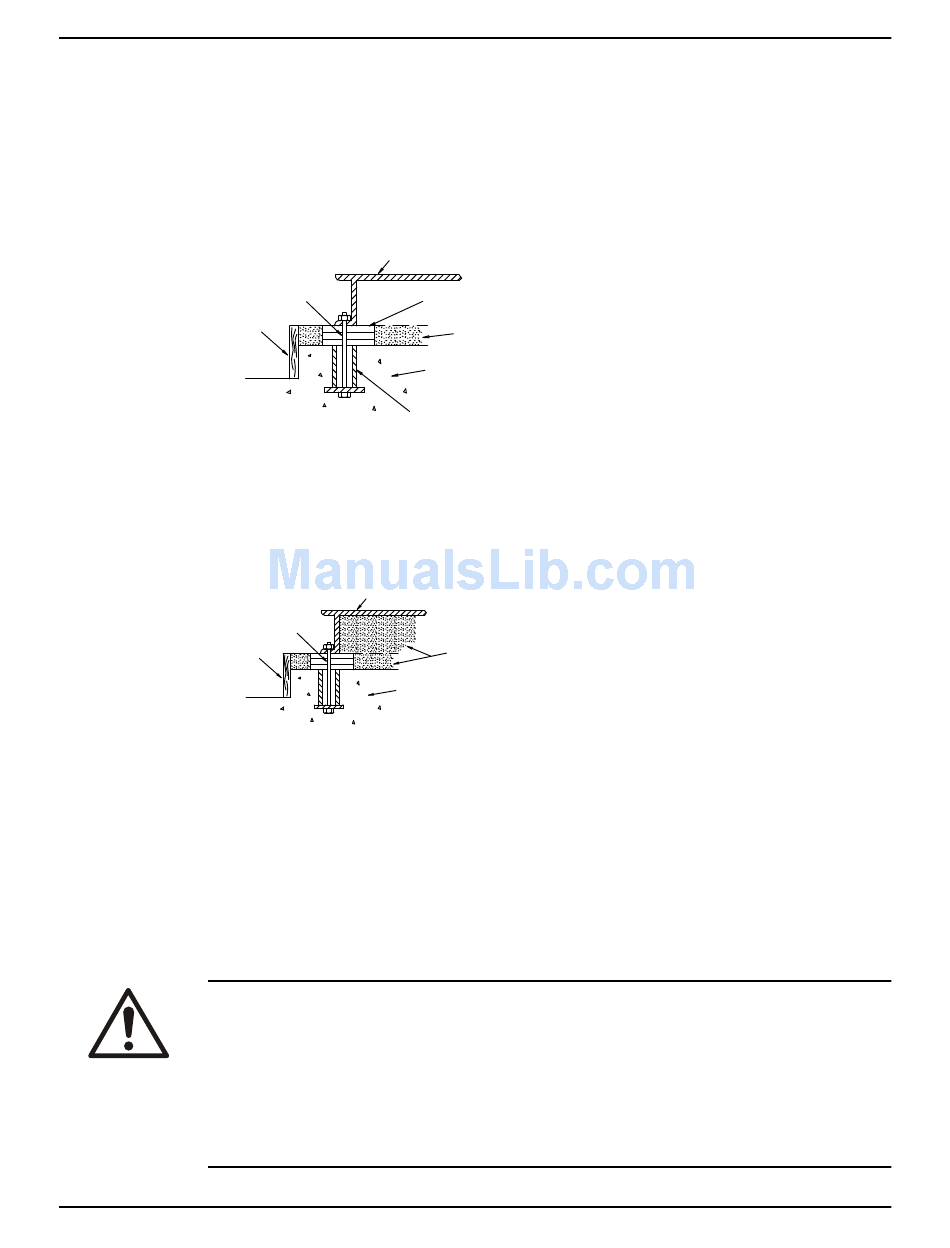

Baseplate
Shims or wedges
Grout
Foundation
Sleeve
Dam
Bolt
1
5
4
3
Baseplate
Grout
Foundation
Dam
Bolt
