Reassembly

Assemble the rotating element and the bearing frame ( STi and MTi )

CAUTION:
Wear insulated gloves when you use a bearing heater. Bearings get hot and can cause physical injury.
NOTICE: Make sure that the pipe threads are clean, and that you apply thread sealant to the plugs and
fittings. Failure to do so may result in equipment damage or decreased performance.
NOTICE: Use an induction heater that heats as well as demagnetizes the bearings when you install
bearings. Failure to do so may result in decreased performance.

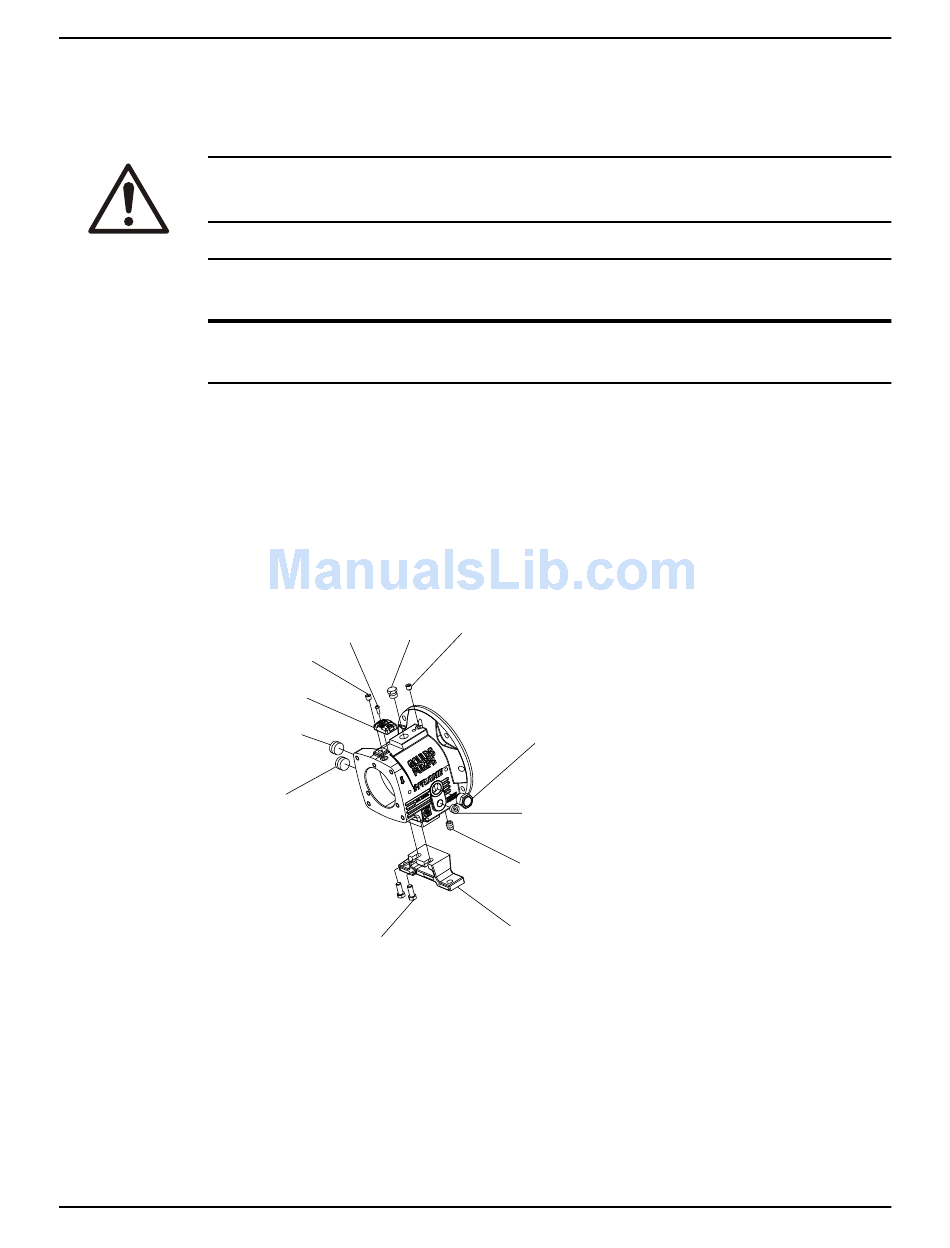

1. Prepare the bearing frame (228) as follows (see the illustration):
a) Install the oil-fill plug (113A).
b) Install the oil-drain plug (408A).
c) Install the sight glass (319).
d) Install the sight oiler plug (408J).
e) Install the plug for the oil-cooler inlet (408L).
f) Install the plug for the oil-cooler outlet (408M).
g) Install four oil-mist connection plugs (408H).
h) Attach the bearing-frame foot (241) and fasten the bolts (370F) by hand.
2. Install the outboard bearing (112A) on the shaft (122).
The regreaseable bearing has a single shield. The outboard bearing is installed with the shield toward
the impeller.
a) Inspect the shaft (122) to ensure that it is clean, dimensionally correct, and is free of nicks and
b) Lightly coat the bearing seating with a thin film of oil.
c) Remove the bearing (112) from its packaging.
d) Wipe the preservative from the bearing (112) bore and outer diameter.
e) Use an induction heater with a demagnetizing cycle to heat the bearing (112) to an inner ring
Model HT 3196 i-FRAME Installation, Operation, and Maintenance Manual
Or: Install two grease fittings (193) and two grease-relief plugs (113).
113A
372T
408W
761B
408N
408M
370F
burrs.
temperature of 230 °F (110 °C).
408W
319
408N
408A
241
