Part description HT 3196

3196
3796
HT 3196
CV 3196
LF 3196
NM 3196
3198

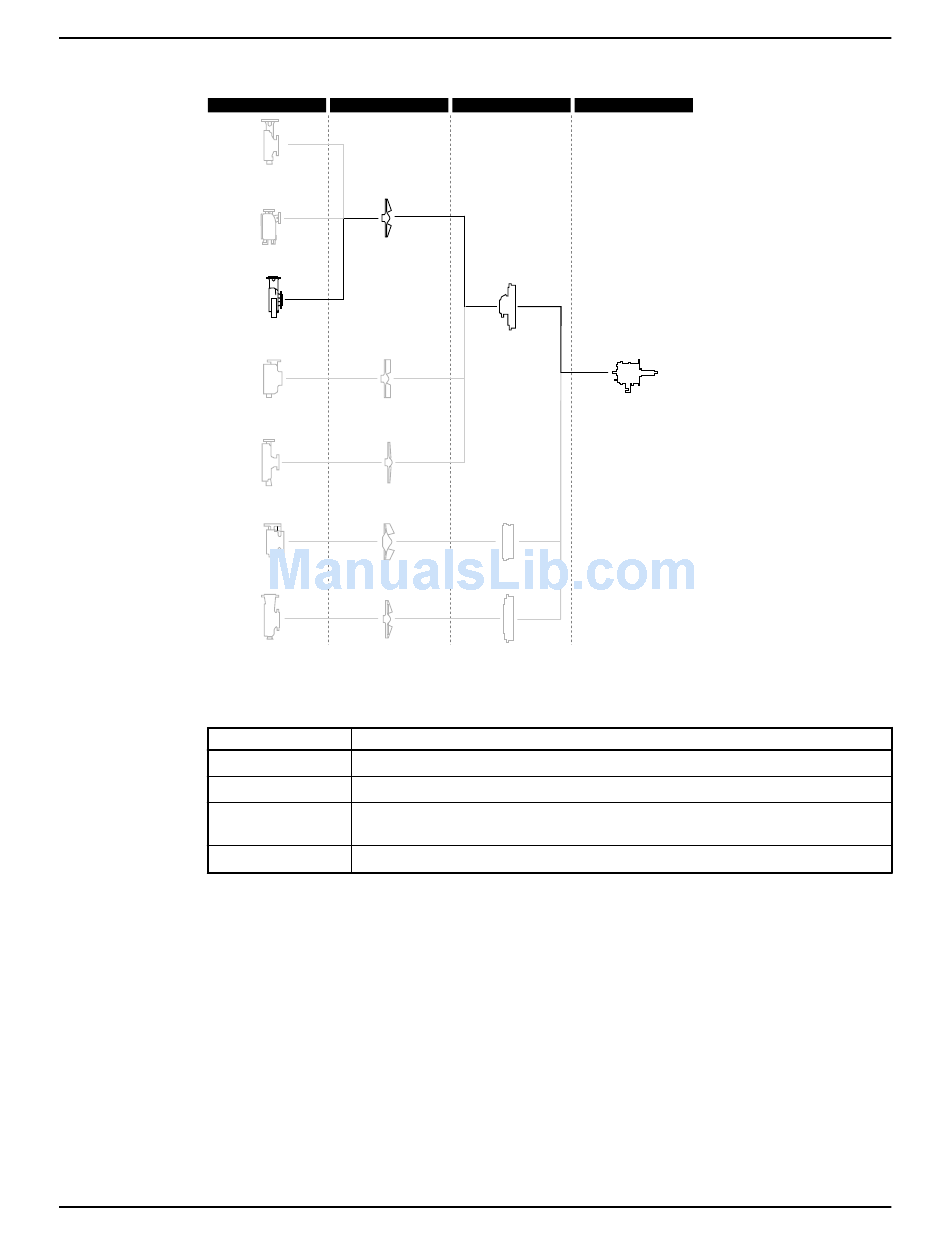

Figure 6: HT 3196 part description
This table describes the pump casing parts.
Table 3: Casing
Part
Discharge
Casing ventilation
Mounting method
Standard flange
Impeller
The impeller is
• fully open
• screwed onto the shaft
The threads are sealed from the pumped liquid by a graphite O-ring.
Model HT 3196 i-FRAME Installation, Operation, and Maintenance Manual
Casing Impeller
Description
Top-centerline
Self venting
Centerline-mounted to withstand misalignment and distortion from thermal piping
loads. It also maintains vertical alignment at elevated temperatures.
ANSI class 300 raised-face serrated flange.
Cover Power end
Product Description
15
