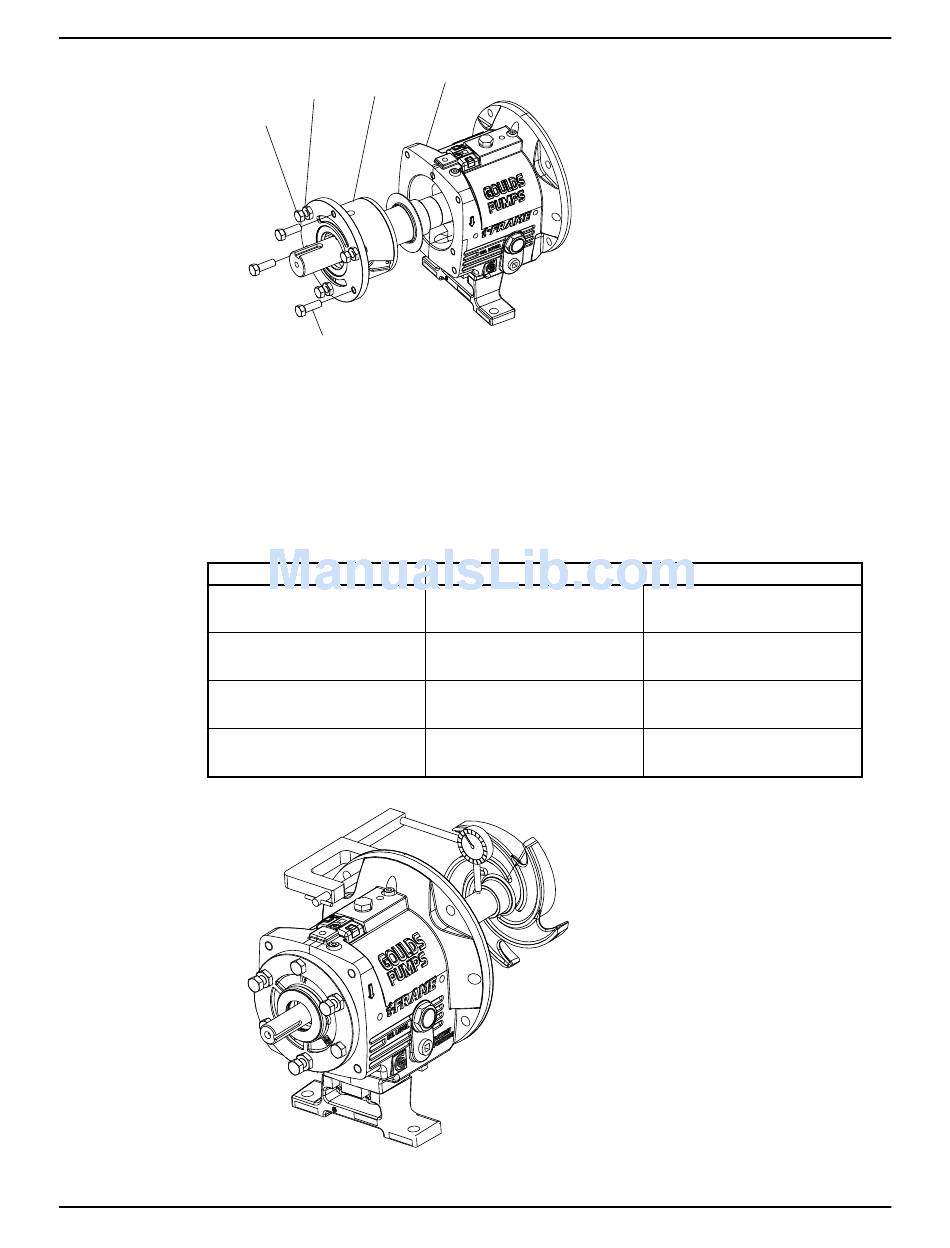

Assemble the frame

1. Support the frame assembly in a horizontal position.
2. Check the shaft-end play by moving the shaft forward and backward by hand, and note any indicator
movement.
If the total indicator reading is greater than the values in this table, then disassemble the shaft and
determine the cause.
Use this table as a reference for shaft-end play values.
Table 14: Shaft-end play
STi inches (millimeters)
MTi inches (millimeters)
LTi inches (millimeters)
XLT-i inches (millimeters)
3. Check the shaft-sleeve (126) runout.
Model HT 3196 i-FRAME Installation, Operation, and Maintenance Manual
134
423
370D
370C
Frame
228A
Double row bearing
0.0011 (0.028)
0.0019 (0.048)
0.0013 (0.033)
0.0021 (0.053)
Not applicable
0.0014 (0.036)
0.0023 (0.058)
Maintenance
Duplex bearing
0.0007 (0.018)
0.0010 (0.025)
0.0009 (0.023)
0.0012 (0.030)
0.0010 (0.025)
0.0015 (0.038)
0.0010 (0.025)
0.0015 (0.038)
