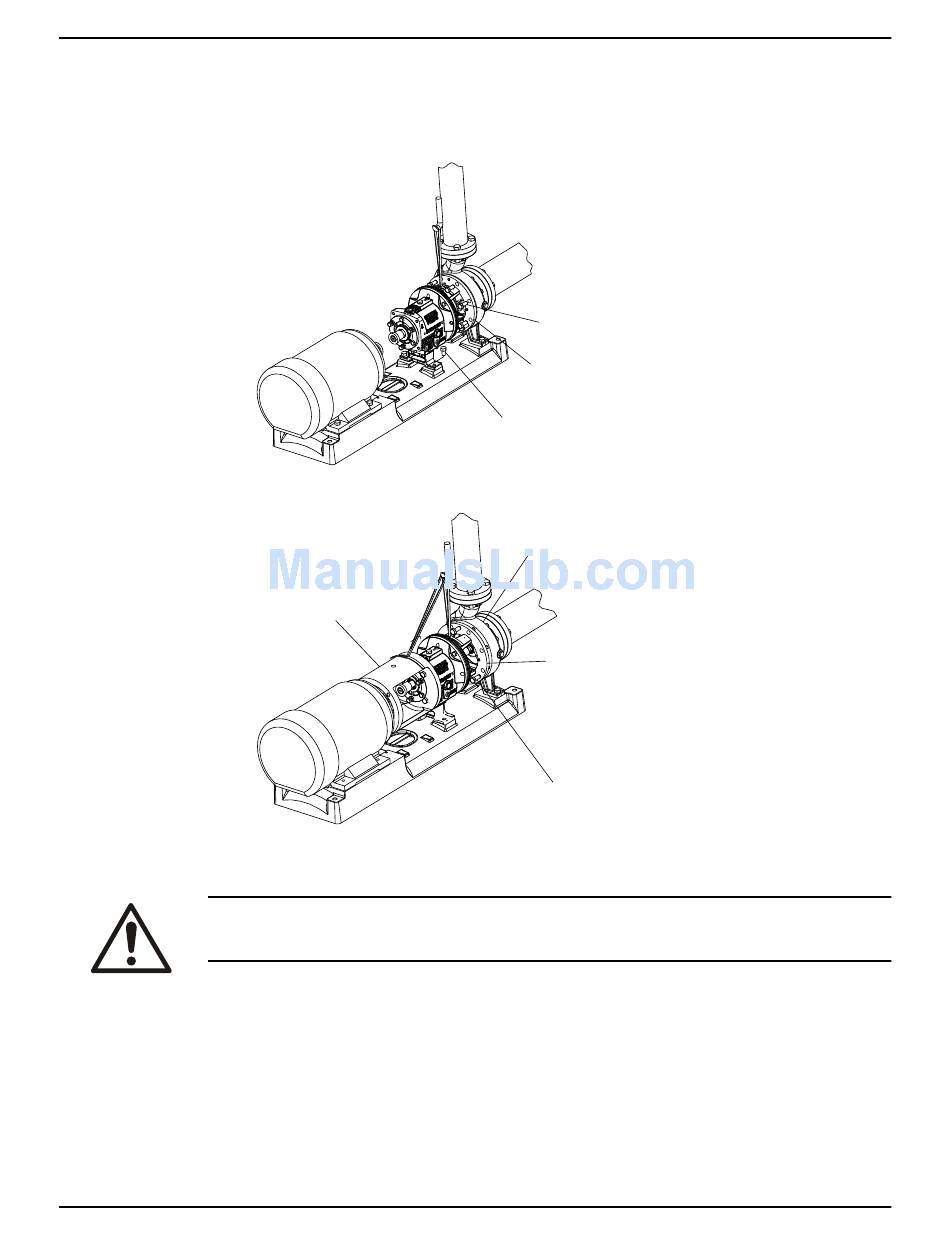

2. Does your pump use a C-face adapter?
•
•
3. Remove the hold-down bolts of the bearing frame foot.
4. Remove the casing bolts.
WARNING:
5. Tighten the jackscrews evenly, using an alternating pattern, in order to remove the back pull-out
assembly.
You can use penetrating oil if the adapter to the casing joint is corroded.
6. Remove the back pull-out assembly from the casing (100).
7. Remove and discard the casing gasket.
You will insert a new casing gasket during reassembly.
8. Remove the jackscrews.
9. Clean all gasket surfaces.
Model HT 3196 i-FRAME Installation, Operation, and Maintenance Manual
If Yes: Place one sling from the hoist through the frame adapter (108) or frame (228A) for the STi
and a second sling from the hoist through the C-face adapter.
If No: Place a sling from the hoist through the frame adapter (108) or the frame (228A) for the
STi.
340
• Never use heat to disassemble the pump due to the risk of an explosion from trapped liquid.
370
108
370F
100
351
418
Maintenance
