Maintenance

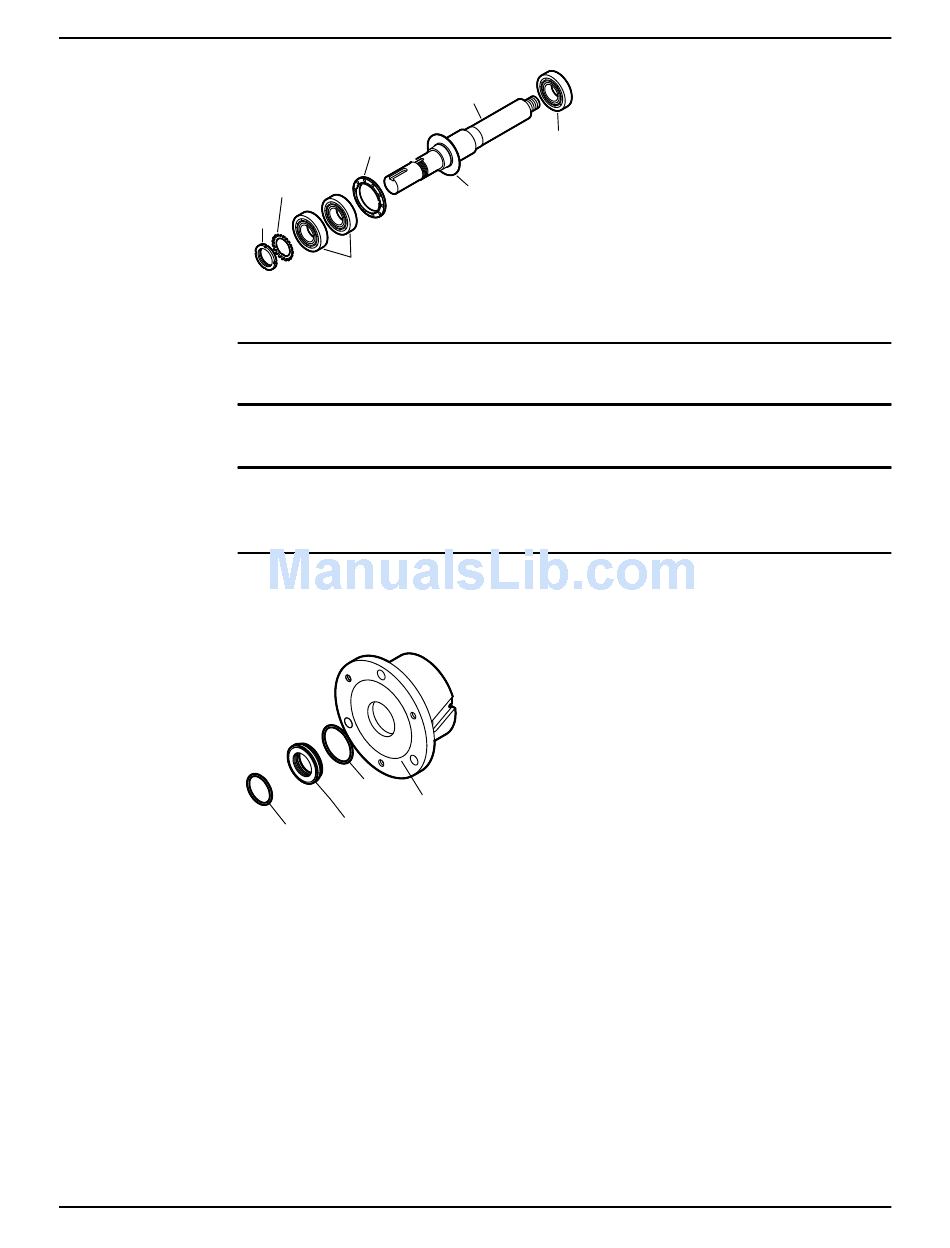

8. Remove the bearing locknut (136) and the bearing lockwasher (382).
9. Remove the outboard bearings (112A) and the clamp ring (253B).
NOTICE: Do not remove the oil flinger unless it is damaged. Doing so may result in unnecessary
shutdown time or equipment damage.
NOTICE: Use force only on the inner race when you press bearings off the shaft. Do not use force
in situations in which you might break a part. Doing so may result in equipment damage.
NOTICE:
Save the bearings for inspection. Do not reuse the bearings. Doing so may result in decreased
performance.
10. Remove the outboard labyrinth oil seal (332A) from the bearing housing (134).
11. Remove the O-rings (497F and 497G) if it is necessary.
Labyrinth oil-seal O-rings are part of the 3196 maintenance kits, and they are sold separately.
Disassemble the power end ( XLT-i and i17 )
1. Remove the bearing frame from the frame foot (241) using the frame-foot bolts (370F).
78
253B
382
136
112A
497G
134
332A
497F
Model HT 3196 i-FRAME Installation, Operation, and Maintenance Manual
122
168A
248A
