Spare parts

Always state the serial number and indicate the part name and item number from the relevant sectional
drawing when you order spare parts. It is imperative for service reliability to have a sufficient stock of
readily available spare parts.
• Impeller (101)
• Shaft (122A)
• Shaft sleeve (126)
• Outboard bearing (112A)
• Inboard bearing (168A)
• Casing gasket (351)
• Frame-to-adapter gasket (360D)
• Bearing-housing retaining ring (361A)
• Bearing lockwasher (382)
• Bearing locknut (136)
• Impeller O-ring (412A)
• Bearing-housing O-ring (496)
• Outboard labyrinth-seal rotary O-ring (497F)
• Outboard labyrinth-seal stationary O-ring (497G)
• Inboard labyrinth-seal rotary O-ring (497H)
• Inboard labyrinth-seal stationary O-ring (497J)
• Lantern ring half (105) (packed stuffing box)
• Stuffing box packing (106) (packed stuffing box)
• Packing gland (107) (packed stuffing box)
• Impeller gasket (428D) (XLT-i and i17 only)

Interchangeability drawings

HT 3196 interchangeability

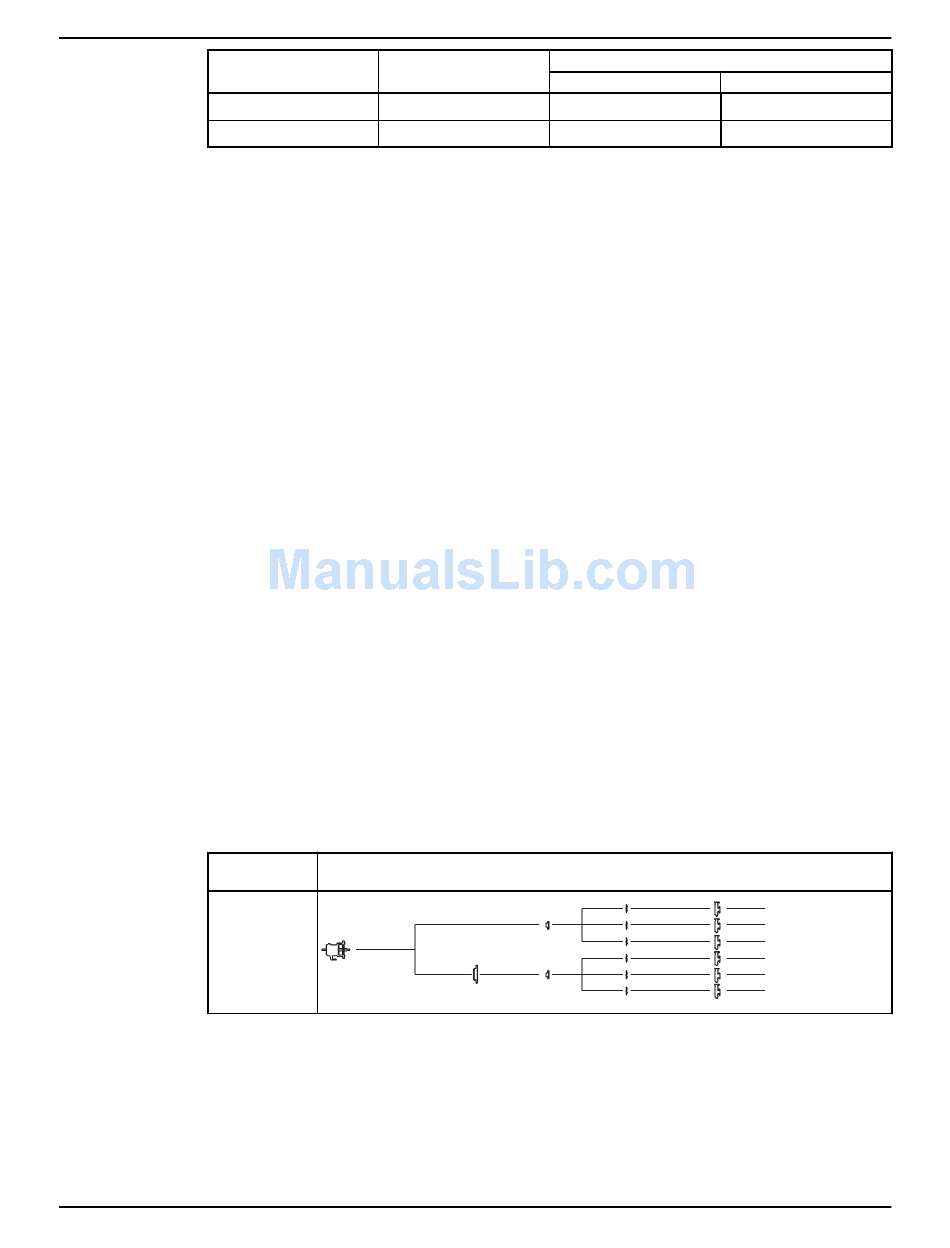

Table 21: HT 3196 interchangeability drawing
Description
Model HT 3196
STi 1–3/8 in.
Shaft Dia. Max
BHP-40 HP
Model HT 3196 i-FRAME Installation, Operation, and Maintenance Manual
Frame Inboard bearing
6311
6313
Shaft and Bearing
Adapter
Frame Assembly
Outboard bearing
Double row
Not applicable
3313
Seal Chamber Impeller
Maintenance
Duplex
7310
7313
Casing Size
1x1.5-6 AA
1.5x3-6 AB
2x3-6 AC
1x1.5-8LF AA
1X1.5-8 AA
1.5X3-8 AB
