C-Face Adapter Inspection - ITT HT 3196 i-FRAME Installation, Operation And Maintenance Manual

Maintenance
Surface inspection locations

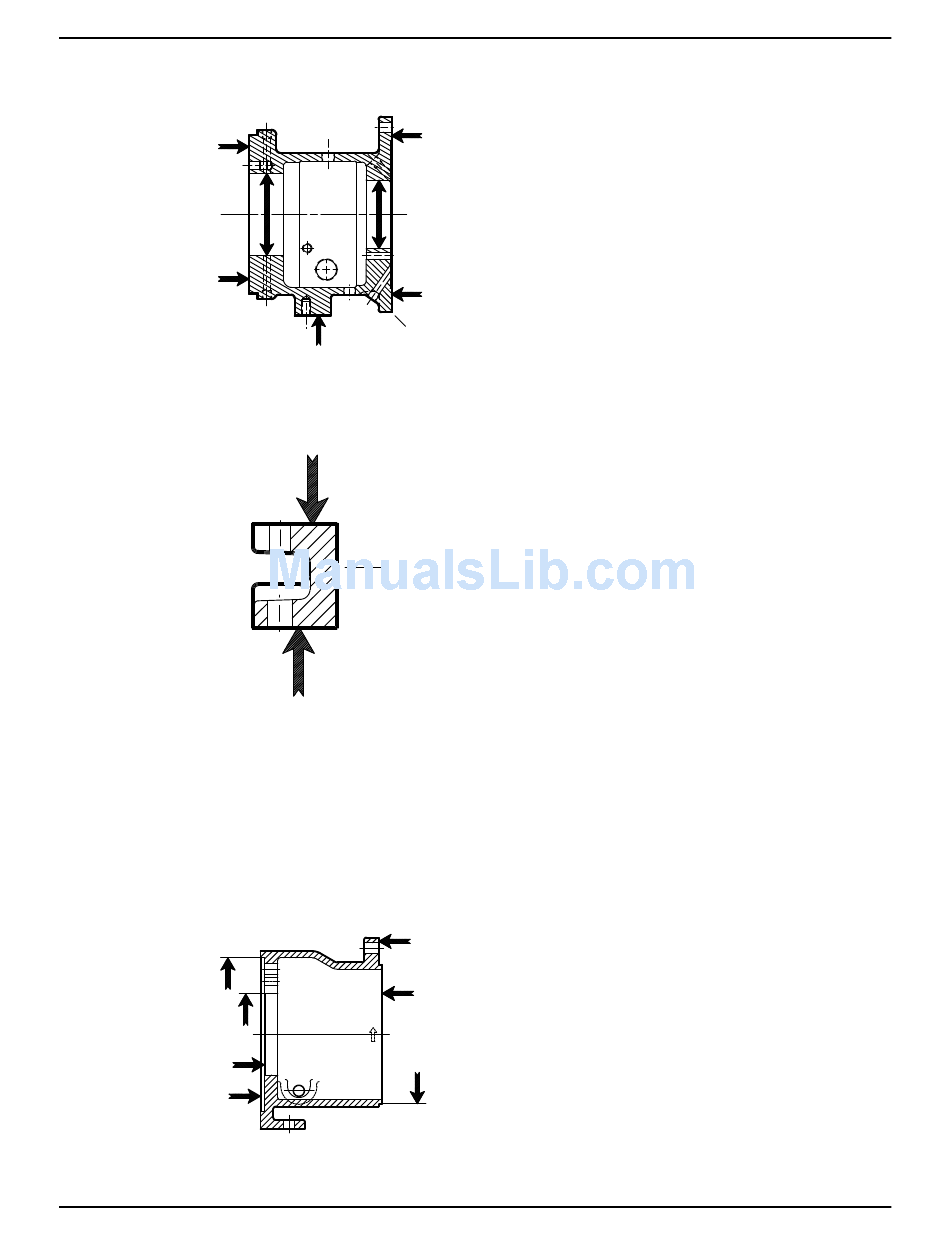

This figure shows the areas to inspect for wear on the bearing frame outside surface.
Figure 20: Outside surface inspection locations
This figure shows the areas to inspect for wear on the bearing frame inside surface.
Figure 21: Inside surface inspection locations

C-face adapter inspection

Checklist
• Visually inspect the C-face adapter (340) for cracks.
• Check all surfaces for rust, scale, or debris and remove all loose and foreign material.
• Check for corrosion or pitting.
This figure shows the areas to inspect for cracks on the C-face adapter.
Figure 22: C-face adapter inspection locations
