Figure 1-8 Disk Drive; Table 1-2 J4200/J4400 Disk Drive Status Indicators - Sun Microsystems J4200 System Overview Manual

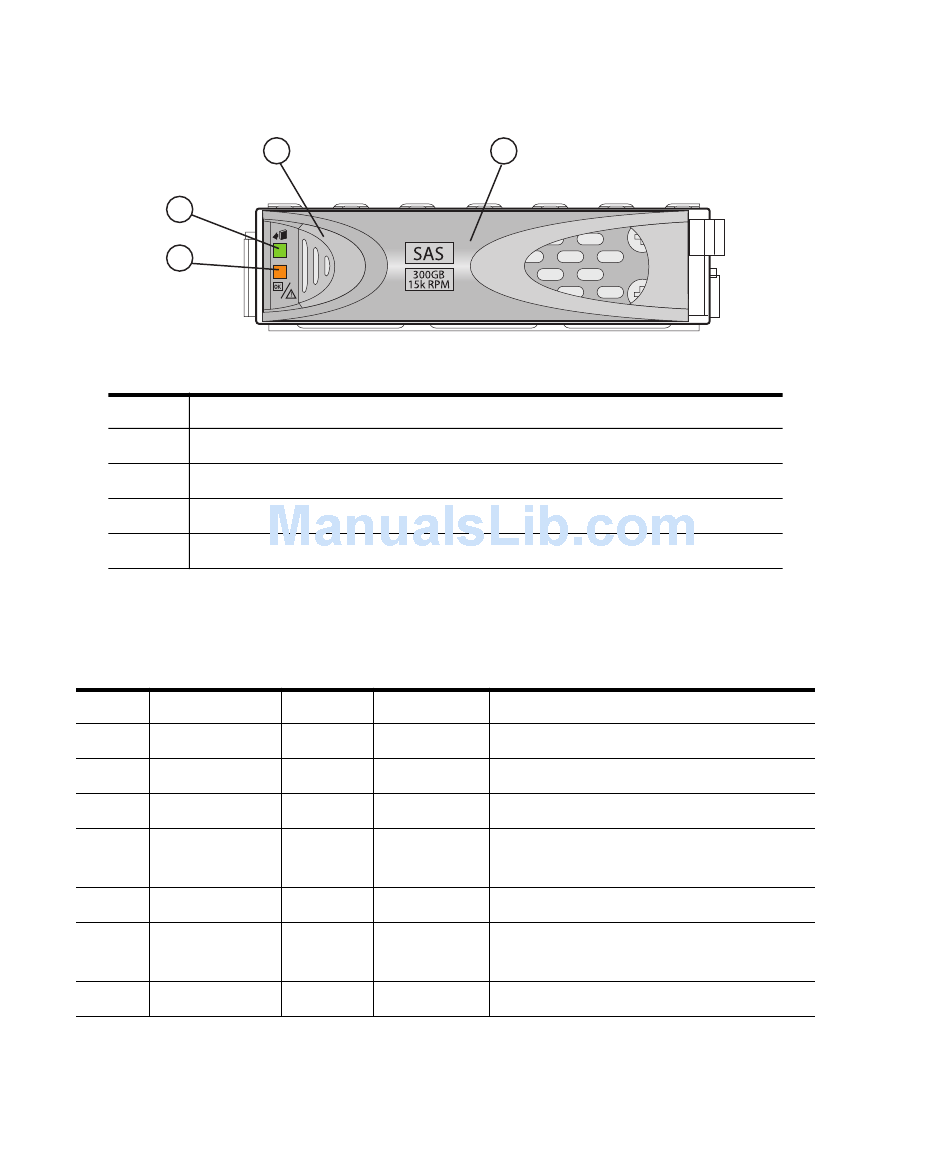

FIGURE 1-8
FIGURE 1-8
3
4
Figure Legend
ID
1 Release button: press to the right to disengage the release handle.
2 Disk handle.
3 OK status indicator.
4 Ready to Remove/Fault status indicators.
Following are the J4200/J4400 disk drive status indicator descriptions.
TABLE 1-2
ID Indicator
3 OK
Ready to
4
Remove/Fault
10 Sun Storage J4200/J4400 Array System Overview • June 2009
shows the disk-release button, the disk handle, and the status indicators.
Disk Drive
1
J4200/J4400 Disk Drive Status Indicators
Color Condition
Green On
Green Blinking
Green Off
Blue On
Amber On
Amber Blinking @
4 Hz 50%
Amber Off
2
Description
Description
Ready for access
Spinning down or accessing drives
Offline or inactive
Drives have no pending writes and can
be removed safely
HDD fault - Service Action Required
HDD locator
No failures
