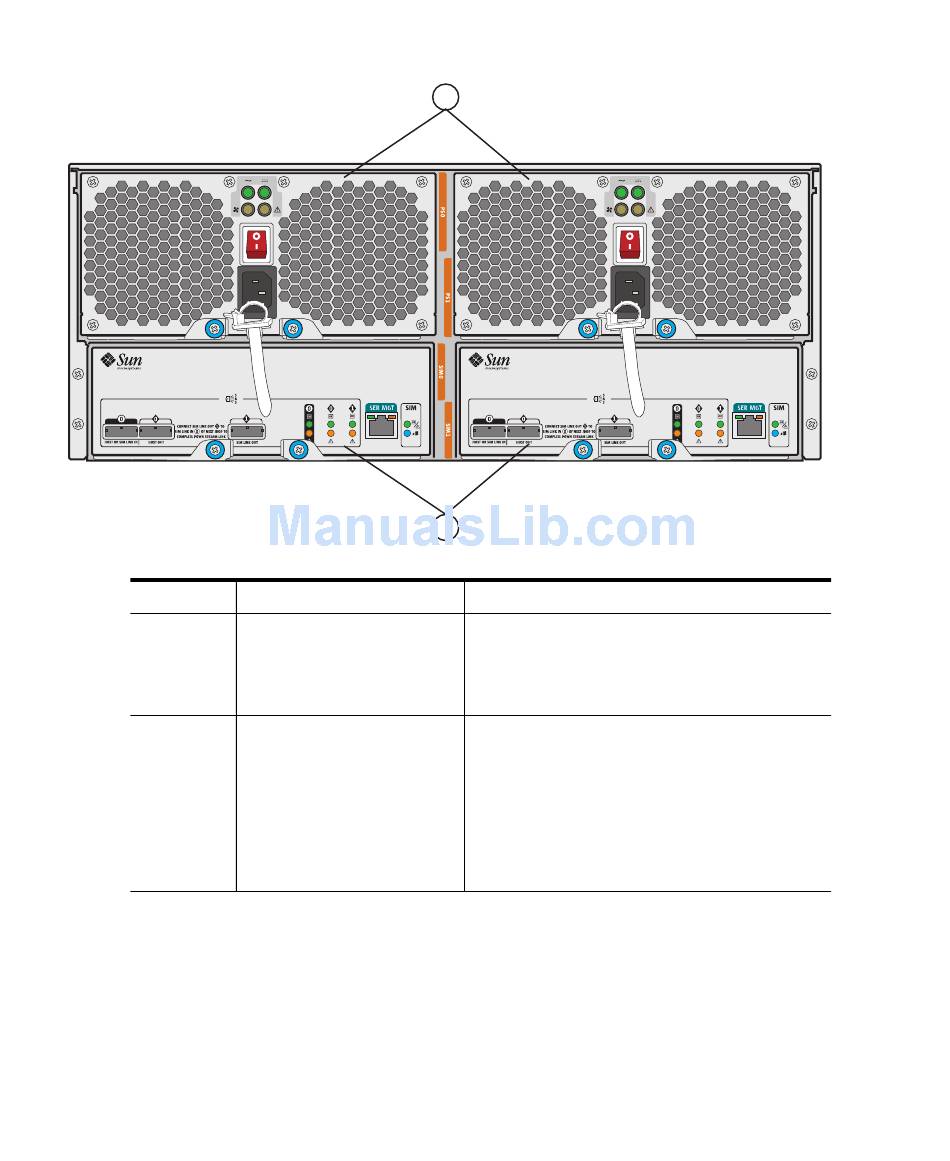

Figure 1-10 J4400 Array Rear-Access Components - Sun Microsystems J4200 System Overview Manual

FIGURE 1-10
Figure Legend
ID
1
2
12 Sun Storage J4200/J4400 Array System Overview • June 2009
J4400 Array Rear-Access Components
Component
Power Supply Modules
SIM Modules
1
2
Description
Two removable power supply modules
with built-in fans. Power Supply 0 is on
the left and Power Supply 1 is on the
right.
Two removable SAS Interface Module
(SIM) boards. Each has a Host or SIM Link
In port, a Host Out port, a SIM Link Out
port, and an RJ-45 port for serial console
access (reserved for Sun Customer Support
personnel). The SIM boards are identified as
SIM 0 (left) and SIM 1 (right).
