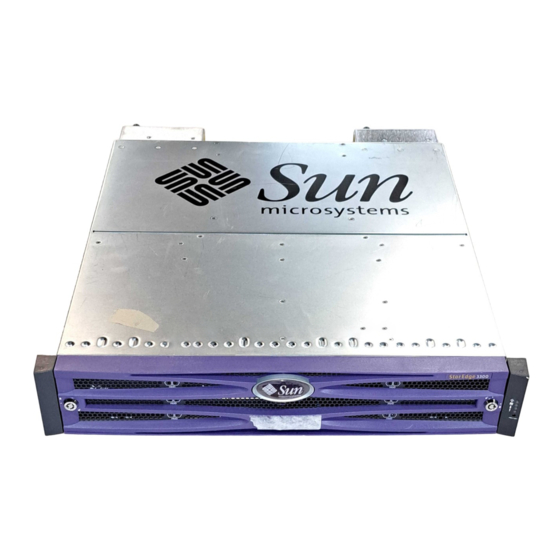

Sun StorEdge
5210 NAS
™
Quick Reference Manual
Sun Microsystems, Inc.
www.sun.com
Part No. 817-6659-11
November 2004, Revision A
Submit comments about this document at: http://www.sun.com/hwdocs/feedback

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sun StorEdge 5210 NAS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sun Microsystems Sun StorEdge 5210 NAS

Summary of Contents for Sun Microsystems Sun StorEdge 5210 NAS

  • Page 1 Sun StorEdge 5210 NAS ™ Quick Reference Manual Sun Microsystems, Inc. www.sun.com Part No. 817-6659-11 November 2004, Revision A Submit comments about this document at: http://www.sun.com/hwdocs/feedback...
  • Page 2 Copyright 2004 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, Californie 95054, Etats-Unis. Tous droits réservés. Sun Microsystems, Inc. a les droits de propriété intellectuels relatants à la technologie qui est décrit dans ce document. En particulier, et sans la limitation, ces droits de propriété...

  • Page 3: Table Of Contents

    About This Quick Reference Manual 1 Sun StorEdge 5210 NAS Features 1 Software Requirements and Updates 3 Turning the Sun StorEdge 5210 NAS On and Off 5 Powering On the Sun StorEdge 5210 NAS 5 Network Setup and System Configuration 7...
  • Page 4 How to Set Up E-mail Notification 69 How to Enable UPS Monitoring 70 Managing RAID 73 Configuring LUNs 73 Configuring Hot Spares 77 Viewing Controller Information 79 Troubleshooting 81 Sending a Diagnostic E-mail Message 81 Sun StorEdge 5210 NAS Quick Reference Manual • November 2004...
  • Page 5 Contacting Technical Support 83 Index 85 Contents...
