Multipathing With One Array and One Host
FIGURE 5-1
to the SIM boards on the back of an array.

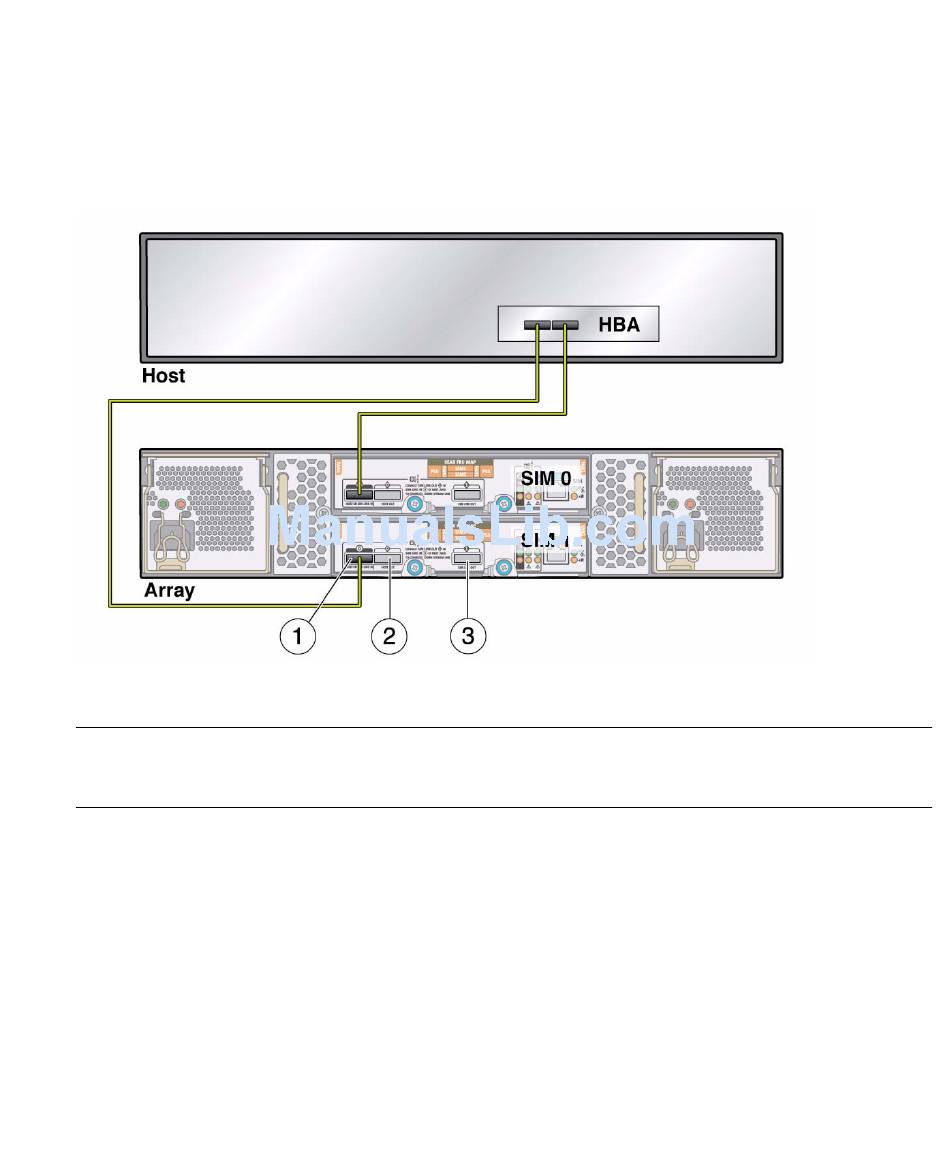

Cabling Example for Multipathing With One Array and One Host
FIGURE 5-1
Figure Legend
1
Host or SIM Link In
2
Host Out
3
SIM Link Out
shows an example of SAS cables connecting the ports on the host's HBA
Chapter 5
SAS Multipathing
53
