Multipathing With Two Arrays and One Host
FIGURE 5-3
host, with two HBAs on that host, and two arrays cabled together.

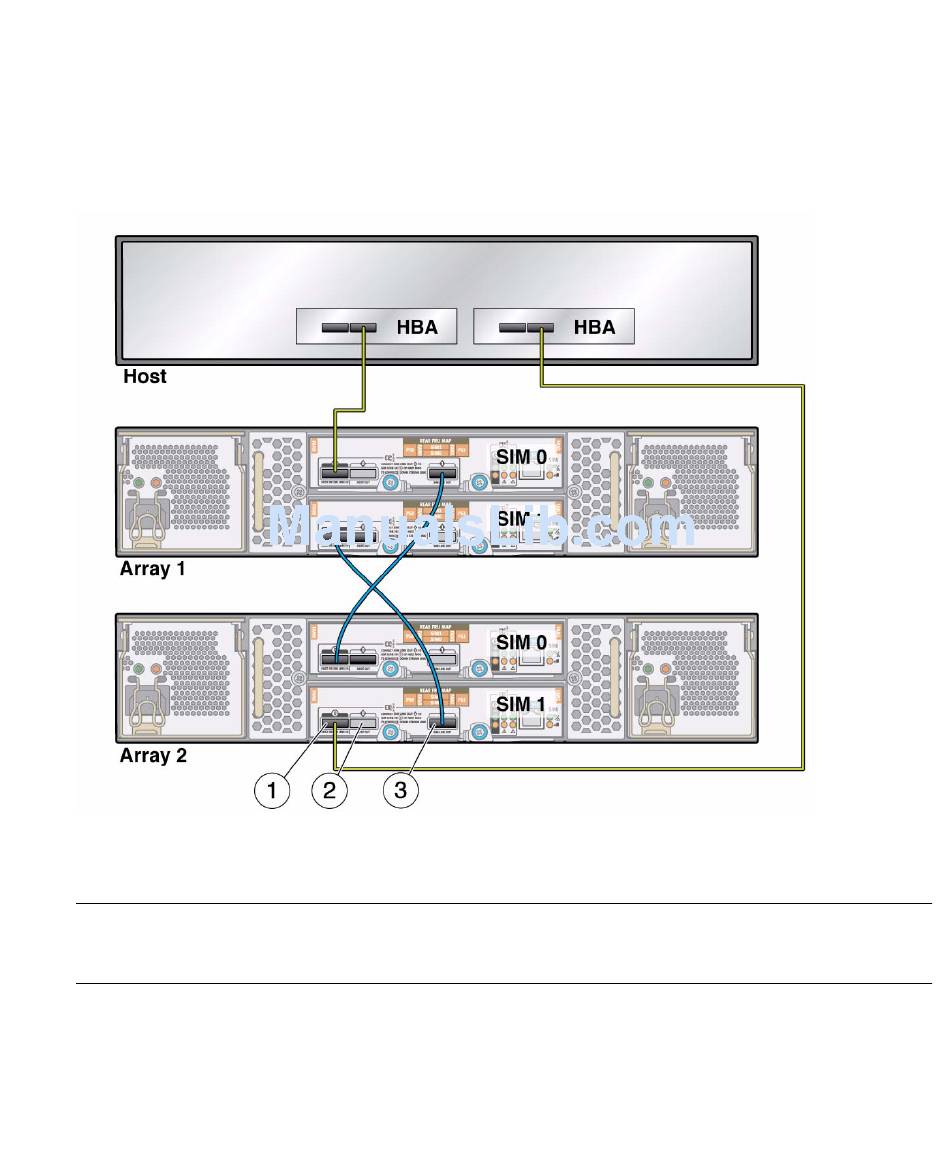

Cabling Example for Multipathing With Two Arrays and One Host
FIGURE 5-3
Figure Legend
1
Host or SIM Link In
2
Host Out
3
SIM Link Out
shows an example of cabling for multipath in a configuration with one
Chapter 5
SAS Multipathing
55
