Multipathing With Two Arrays and Two Hosts
FIGURE 5-2
hosts, with two HBAs on each host, and two arrays cabled together.

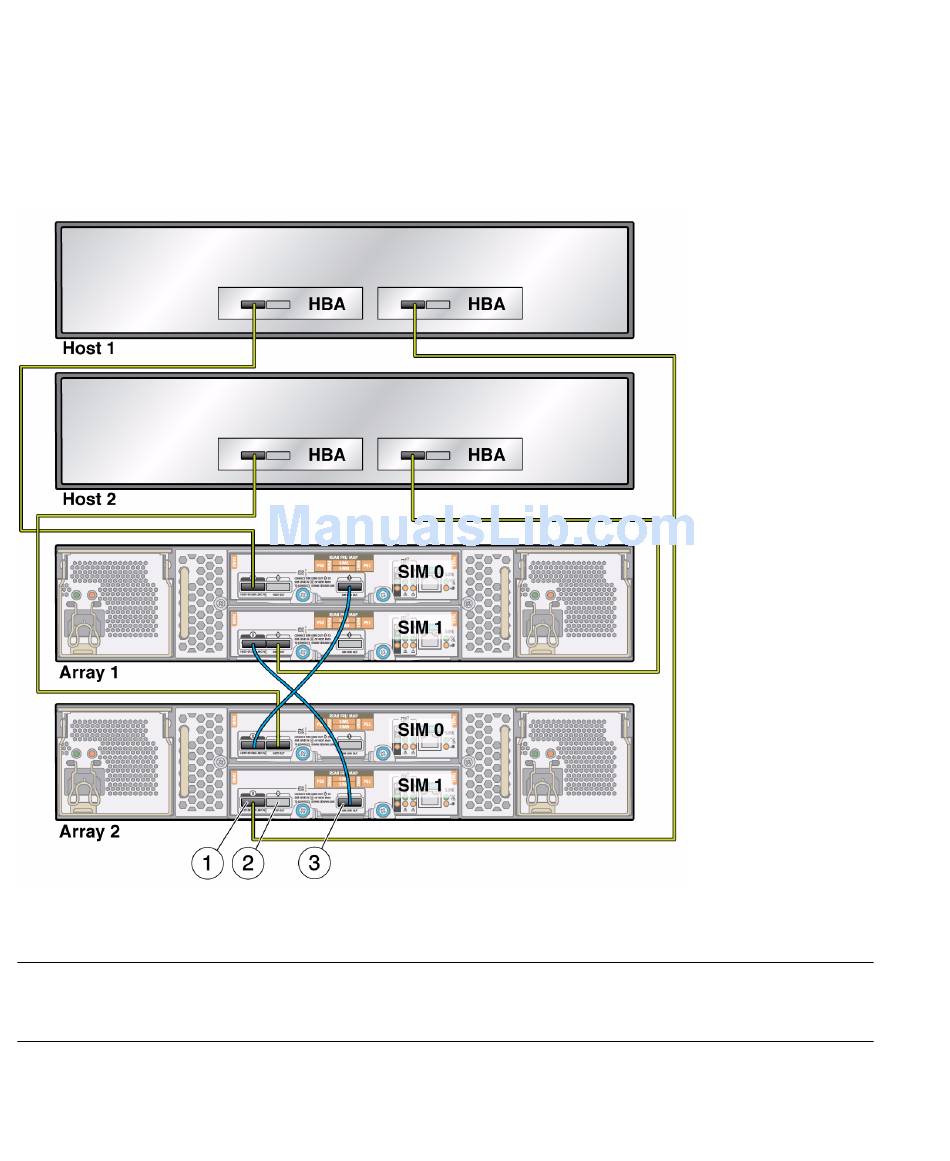

Cabling Example for Multipathing With Two Arrays and Two Hosts
FIGURE 5-2
Figure Legend
1
Host or SIM Link In
2
Host Out
3
SIM Link Out
54
Sun Storage J4200/J4400 Array System Overview • June 2009
shows an example of cabling for multipath in a configuration with two
