J4400 Power Supply Status Indicators
Following are the J4400 power supply status indicator descriptions.
TABLE 3-8
ID
1
2
3
4
J4200 Array Fan Modules
This section provides the fan module indicator descriptions.

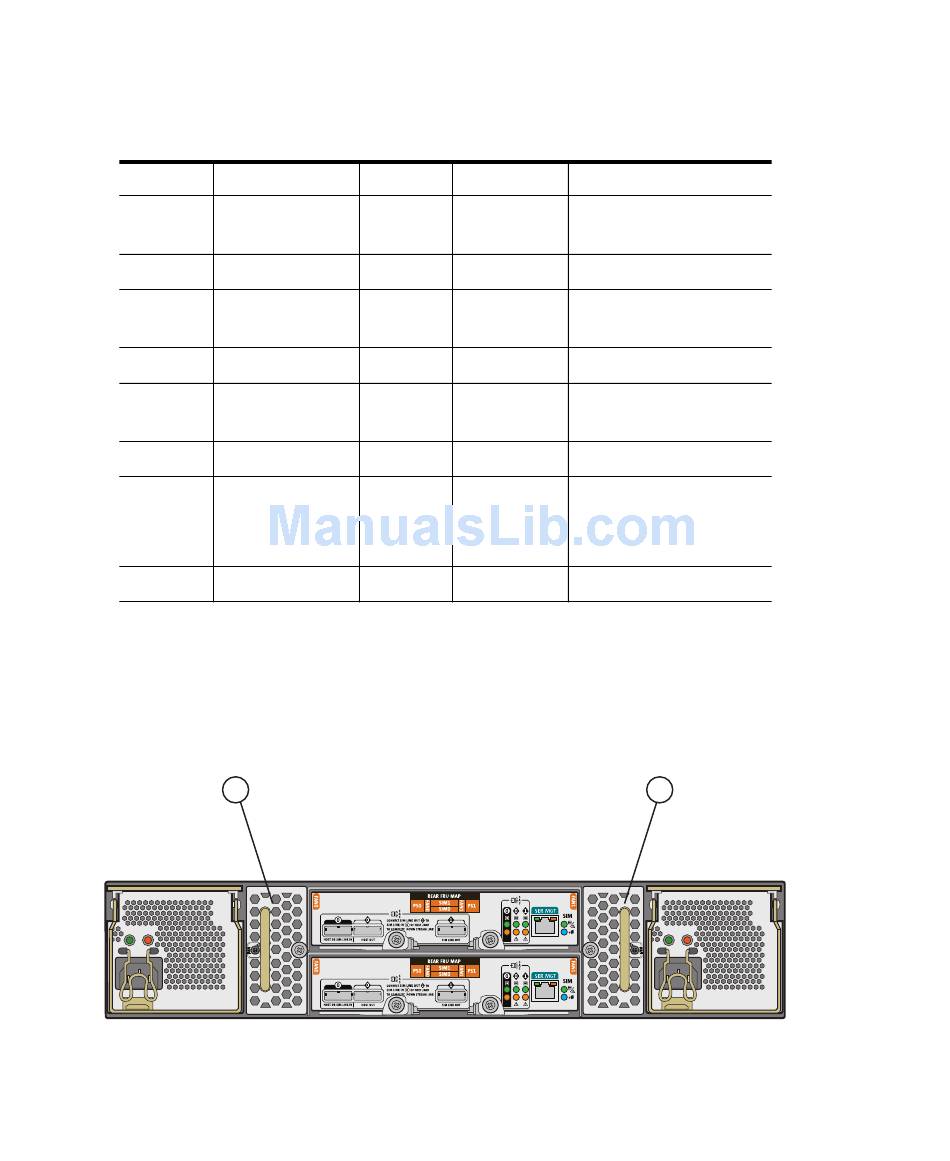

FIGURE 3-9
42
Sun Storage J4200/J4400 Array System Overview • June 2009
J4400 Power Supply Status
Indicator
Color
Cooling fan
Amber
status indicator
Amber
AC power status
Green
indicator
Green
DC power status
Green
indicator
Green
Power supply
Amber
status indicator
Amber
J4200 Array Fans
0
Indicator
s
Condition
Description
On
Fan failure
Off
Fans healthy
On
AC power ready
Off
No AC power input
On
DC power ready
Off
No DC power input
On
Power supply failure
Off
Power supply healthy
