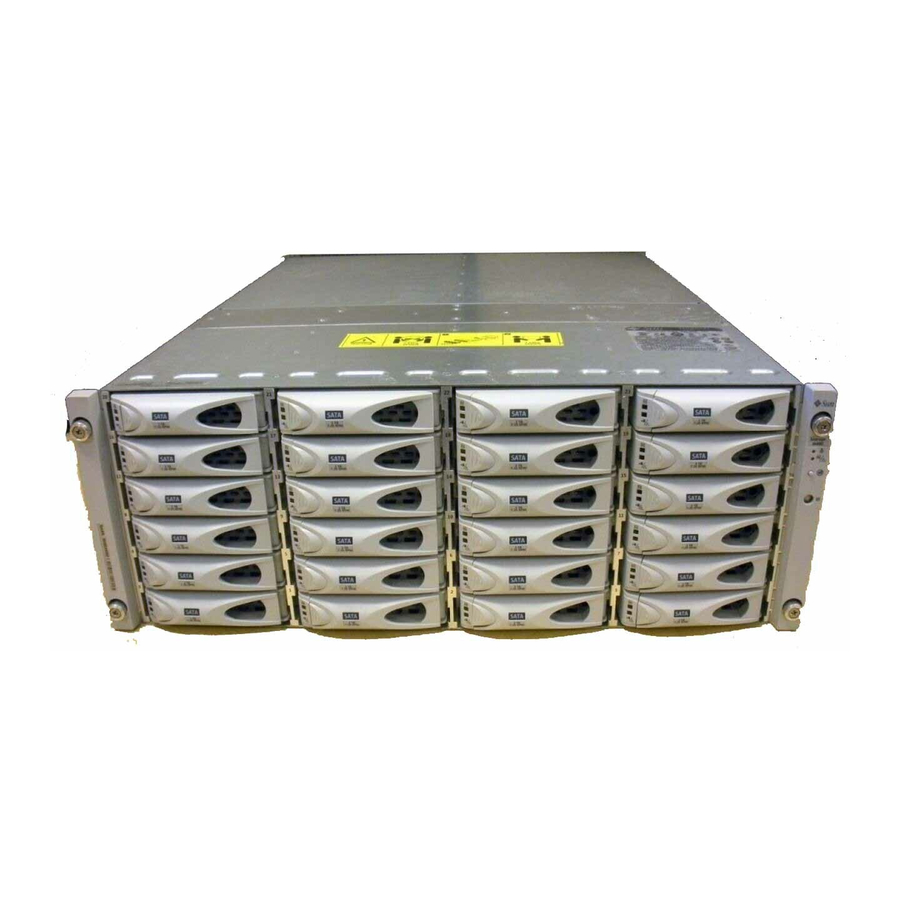

Sun Microsystems Sun Storage J4400 Site Preparation Manual
Hide thumbs
Also See for Sun Storage J4400:
- System overview manual (112 pages) ,
- Replacement manual (21 pages) ,
- Replacement manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Sun Microsystems Sun Storage J4400
Summary of Contents for Sun Microsystems Sun Storage J4400
- Page 1 Sun Storage J4200/J4400 Array Site Preparation Guide Sun Microsystems, Inc. www.sun.com Part No. 820-3219-10 May 2008 Revision A Submit comments about this document at: http://www.sun.com/hwdocs/feedback...
- Page 2 Products bearing SPARC trademarks are based upon an architecture developed by Sun Microsystems, Inc. The OPEN LOOK and Sun™ Graphical User Interface was developed by Sun Microsystems, Inc. for its users and licensees. Sun acknowledges the pioneering efforts of Xerox in researching and developing the concept of visual or graphical user interfaces for the computer industry. Sun holds a non-exclusive license from Xerox to the Xerox Graphical User Interface, which license also covers Sun’s licensees who implement OPEN...
-
Page 3: Table Of Contents
Contents Preface vii Planning for the Installation 1 Customer Obligations 1 Safety Information 1 Handling Precautions 2 Secure Installation Requirements 2 Placement of a Sun Product 3 Site Wiring and Power Requirements 3 Cabinet and Rack Specifications 5 Sun StorEdge Expansion Cabinet 5 Physical Specifications 6 Clearance and Service 6 Weight 7... - Page 4 Physical Specifications 9 Clearance and Service 10 Weight 10 Environmental Requirements 11 Temperature, Humidity, and Altitude 11 Airflow and Heat Dissipation 12 Power Requirements 12 Sun Rack 900/1000 Cabinets 13 Physical Specifications 13 Weight 13 Environmental Requirements 15 Temperature, Humidity, and Altitude 15 Airflow and Heat Dissipation 15 Power Requirements 15 Sun Storage J4200/J4400 Specifications 17...
- Page 5 Tables TABLE 2-1 Sun StorEdge Expansion Cabinet Dimensions 6 TABLE 2-2 Clearance and Service Access 6 TABLE 2-3 Sun StorEdge Expansion Cabinet and J4200 Component Weights 7 TABLE 2-4 Sun StorEdge Expansion Cabinet and J4400 Component Weights 7 TABLE 2-5 Cabinet Environmental Specifications 8 TABLE 2-6 Sun StorEdge Expansion Cabinet AC Power Requirements 9...
- Page 6 TABLE 3-4 J4200/J4400 Relative Humidity (noncondensing) 19 TABLE 3-5 J4200/J4400 Altitude 19 TABLE 3-6 J4200 Shock and Vibration 20 TABLE 3-7 J4400 Shock and Vibration 20 TABLE 3-8 J4200 Tray AC Power Requirements 21 TABLE 3-9 J4400 Tray AC Power Requirements 21 TABLE A-1 Sun Storage J4200/J4400 Configuration Worksheet 23 TABLE A-2...
-
Page 7: Preface
Preface The Sun Storage J4200/J4400 Array Site Preparation Guide describes facilities and system requirements for installing the Sun Storage J4200/J4400 array. Follow the guidelines as outlined in this document when planning your installation. Before You Read This Book Before you begin to install the Sun Storage J4200/J4400 Array, you must have already read the regulatory and safety requirements described in this book: Sun StorageTek Regulatory and Safety Compliance Manual (96272, Rev. - Page 8 How This Book Is Organized Chapter 1 describes the requirements for preparing the customer site for installation of the Sun Storage J4200/J4400 array. Chapter 2 describes the physical, environmental, and electrical requirements for the Sun Storage cabinets. Chapter 3 describes the physical, environmental, and electrical requirements for the Sun Storage J4200/J4400 array.
- Page 9 Shell Prompts Shell Prompt C shell machine-name% C shell superuser machine-name# Bourne shell and Korn shell Bourne shell and Korn shell superuser Typographic Conventions Typeface Meaning Examples The names of commands, files, Edit your.login file. AaBbCc123 and directories; on-screen Use ls -a to list all files. computer output.
- Page 10 820-3219-nn Preparation Guide Installation at a glance Sun Storage J4200 Array Setup Poster 820-3221-nn Installation at a glance Sun Storage J4400 Array Setup Poster 820-4691-nn Complete details of the Sun Storage J4200/J4400 Array Hardware 820-3218-nn hardware components, rail Installation Guide and tray installation, and cabling.
- Page 11 Application Title Part Number Power supply and fan Sun Storage J4400 Array Power 820-3228-nn replacement procedures Supply/Fan Replacement Guide Chassis replacement Sun Storage J4200 Chassis Replacement 820-4413-nn procedures Guide Chassis replacement Sun Storage J4400 Chassis Replacement 820-4601-nn procedures Guide Rail kit installation...
- Page 12 Sun Welcomes Your Comments Sun is interested in improving its documentation and welcomes your comments and suggestions. You can submit your comments by going to: http://www.sun.com/hwdocs/feedback Please include the title and part number of your document with your feedback: Sun Storage J4200/J4400 Array Site Preparation Guide, part number 820-3219-10 Book Title without trademarks, or an abbreviated book title •...
-
Page 13: Planning For The Installation
■ Customer Obligations The customer is obliged to inform Sun Microsystems, Inc. of any and all ordinances and regulations that might affect the installation. The customer is responsible for meeting all government codes and regulations concerning facilities. The customer is... -
Page 14: Handling Precautions
“Handling Precautions” on page 2 ■ “Secure Installation Requirements” on page 2 ■ “Placement of a Sun Product” on page 3 ■ Note – Do not make mechanical or electrical modifications to the equipment. Sun Microsystems, Inc. is not responsible for regulatory compliance of a modified Sun product. -
Page 15: Placement Of A Sun Product
Placement of a Sun Product Allow enough room surrounding the cabinet for access to the cabinet and arrays for maintenance. Caution – Do not block or cover the openings of your Sun product. Never place a Sun product near a radiator or heat register. Failure to follow these guidelines can cause overheating and affect the reliability of your Sun product. - Page 16 Book Title without trademarks, or an abbreviated book title • May 2008...
-
Page 17: Cabinet And Rack Specifications
C H A P T E R Cabinet and Rack Specifications This chapter describes the physical, environmental, and electrical requirements for the cabinets in which the Sun Storage J4200/J4400 array can be installed. This chapter contains information for the following Sun cabinets: “Sun StorEdge Expansion Cabinet”... -
Page 18: Physical Specifications
Physical Specifications provides the physical dimensions of the Sun StorEdge expansion cabinet. TABLE 2-1 Sun StorEdge Expansion Cabinet Dimensions TABLE 2-1 Height Width Depth Empty Weight 73.5 in. 24 in. 36.5 in. 350 pounds 187 cm 61 cm 93 cm 159 kg Clearance and Service lists cabinet clearance and service access requirements. -
Page 19: Weight
Weight The total weight of a populated Sun StorEdge Expansion cabinet depends on the number and type of modules installed in the cabinet. lists the weight of an TABLE 2-3 empty cabinet and the maximum weight of each J4200 component, and TABLE 2-4 lists the weight of an empty cabinet and the maximum weight of each J4400 component. -
Page 20: Environmental Requirements
Environmental Requirements This section describes the environmental conditions that are prerequisite to installing the cabinet. Environmental Specifications lists operating and nonoperating temperature, relative humidity, and TABLE 2-5 altitude ranges for the Sun StorEdge Expansion cabinet. Cabinet Environmental Specifications TABLE 2-5 Specification Operating Nonoperating... -
Page 21: Power Requirements
Power Requirements The AC power sources must provide the correct voltage, current, and frequency specified on the model and serial number label. The module can run without interruption within the limits shown in TABLE 2-6 Sun StorEdge Expansion Cabinet AC Power Requirements TABLE 2-6 Parameter Requirements... -
Page 22: Clearance And Service
Clearance and Service Sun Fire cabinets can be placed next to each other, without space between them, since there are no side clearance requirements during operation. However, if access is desired for removal of side panels, allow approximately 2 feet (60 centimeters) of space on each side. -
Page 23: Environmental Requirements
Sun Fire Cabinet and J4400 Component Weights TABLE 2-10 Component Quantity Weight Total Component Weight (each) (lbs or kg) Cabinet 325 lbs (141 kg) 325 lbs or 141 kg J4400 Tray 31.28 lbs (14.19 kg) SIM Board 3.81 lbs (1.73 kg) Power Module 9.54 lbs (4.33 kg) SAS Drive... -
Page 24: Airflow And Heat Dissipation
Airflow and Heat Dissipation The air intake screens act as electro-magnetic interference (EMI) and radio frequency interference (RFI) filters, stopping both EMI and RFI emissions from the system. These screens are honeycomb screens, which also collect and trap dust and debris particles. -
Page 25: Sun Rack 900/1000 Cabinets
Sun Rack 900/1000 Cabinets This section describes the physical, electrical, and environmental requirements for the Sun Rack 900/1000 cabinets. The floor area at the installation site must provide enough stability to support the weight of the cabinet and installed trays, sufficient space for installation and servicing of the cabinet and components, and sufficient ventilation to provide a free flow of air to the cabinet. -
Page 26: Table 2-14 Sun Rack 900/1000 Cabinet And J4200 Component Weights
Sun Rack 900/1000 Cabinet and J4200 Component Weights TABLE 2-14 Component Quantity Weight Weight (lbs (each) or kg) Cabinet 360 lbs (163.3 kg) or 380 lbs (172.7 kg) J4200 Tray 20.04 lbs (9.09 kg) SIM Board 2.66 lbs (1.21 kg) Power Module 4.87 lbs (2.21 kg) Fan Module... -
Page 27: Environmental Requirements
Environmental Requirements This section describes the environmental conditions that are prerequisite to installing the cabinet. Temperature, Humidity, and Altitude lists operating and nonoperating temperature, relative humidity, and TABLE 2-16 altitude ranges for the Sun Rack 900/1000 cabinets. Cabinet Temperature, Humidity, and Altitude TABLE 2-16 Specification Operating... -
Page 28: Table 2-17 Cabinet Ac Power Requirements
Cabinet AC Power Requirements (Continued) TABLE 2-17 Parameter Requirements AC power plug NEMA L6-20P (North American) IEC 309 16A 3 Position (International) AC power receptacle NEMA L6-20R (North American) IEC 309 16A 3 Position (International) Power cords required Book Title without trademarks, or an abbreviated book title • May 2008... -
Page 29: Sun Storage J4200/J4400 Specifications
C H A P T E R Sun Storage J4200/J4400 Specifications This chapter describes the physical, environmental, and electrical requirements for the Sun Storage J4200/J4400 arrays. Where information for both arrays is the same, a single table is used. This chapter contains the following sections: “Dimension and Weight Specifications”... -
Page 30: Environmental Requirements
Dimensions and Weight (with rails) TABLE 3-1 Weight (Fully Height Width Depth Populated) J4400 6.88 in. 17.5 in. 23.4 in. 103.20 lbs 17.48 cm 44.5 cm 59.4 cm 46.81 kg Environmental Requirements This section describes the environmental conditions that are prerequisite to installing the unit, and heat conditions that are generated by normal operation of the unit. -
Page 31: Humidity
Based on a configuration of two power supplies, two SIMs, two fan modules, and 12 drives. Based on a configuration of two power supplies, two SIMs, and 24 drives. Humidity Table 3-4 lists the relative humidity of the J4200/J4400 array. J4200/J4400 Relative Humidity (noncondensing) TABLE 3-4... -
Page 32: Vibration And Shock
Vibration and Shock Table 3-6 lists the vibration and shock specifications for the J4200 array, and Table 3-7 lists the vibration and shock specifications for the J4400 array. J4200 Shock and Vibration TABLE 3-6 Condition Parameter Specification Vibration Operating 0.25 G (peak), 3 to 200 Hz sweep @ 1/2 octave per minute, bottom side tested only Nonoperating (unpacked) 10 Hz to 250 Hz, 1.54 GRMS random vibration, 15... -
Page 33: Electrical Requirements
Electrical Requirements This section provides information regarding site power and wiring, module AC power requirements, and power cord routing instructions. Site Wiring and Power The tray uses wide-ranging redundant power supplies that automatically accommodate voltages to the AC power source. The power supplies operate within the range of 100 VAC to 240 VAC, at a minimum frequency of 47 Hz and a maximum frequency of 63 Hz. -
Page 34: Power Cords And Receptacles
Power Cords and Receptacles All trays are shipped with two AC power cords that are appropriate for use in a typical outlet in the destination country. Each power cord connects one of the power supplies in a tray to an independent external power source, such as those provided in the supported Sun cabinet, a wall receptacle, or uninterruptible power supply (UPS). -
Page 35: Configuration Worksheets
A P P E N D I X Configuration Worksheets Use the worksheets in this appendix to help you collect the information you need to perform the installation. lists the information you need to collect to TABLE A-1 configure the array. Sun Storage J4200/J4400 Configuration Worksheet TABLE A-1 SIM 0 SAS address:... -
Page 36: Table
lists the information you need to collect for each data host connected to TABLE A-2 the Sun Storage J4200/J4400 Sun Storage J4200/J4400 Data Host Information TABLE A-2 Host name: Vendor: Model: Operating system: Patch/Service pack: Number of HBAs: HBA World Wide Name (WWN): HBA model: HBA driver:...
