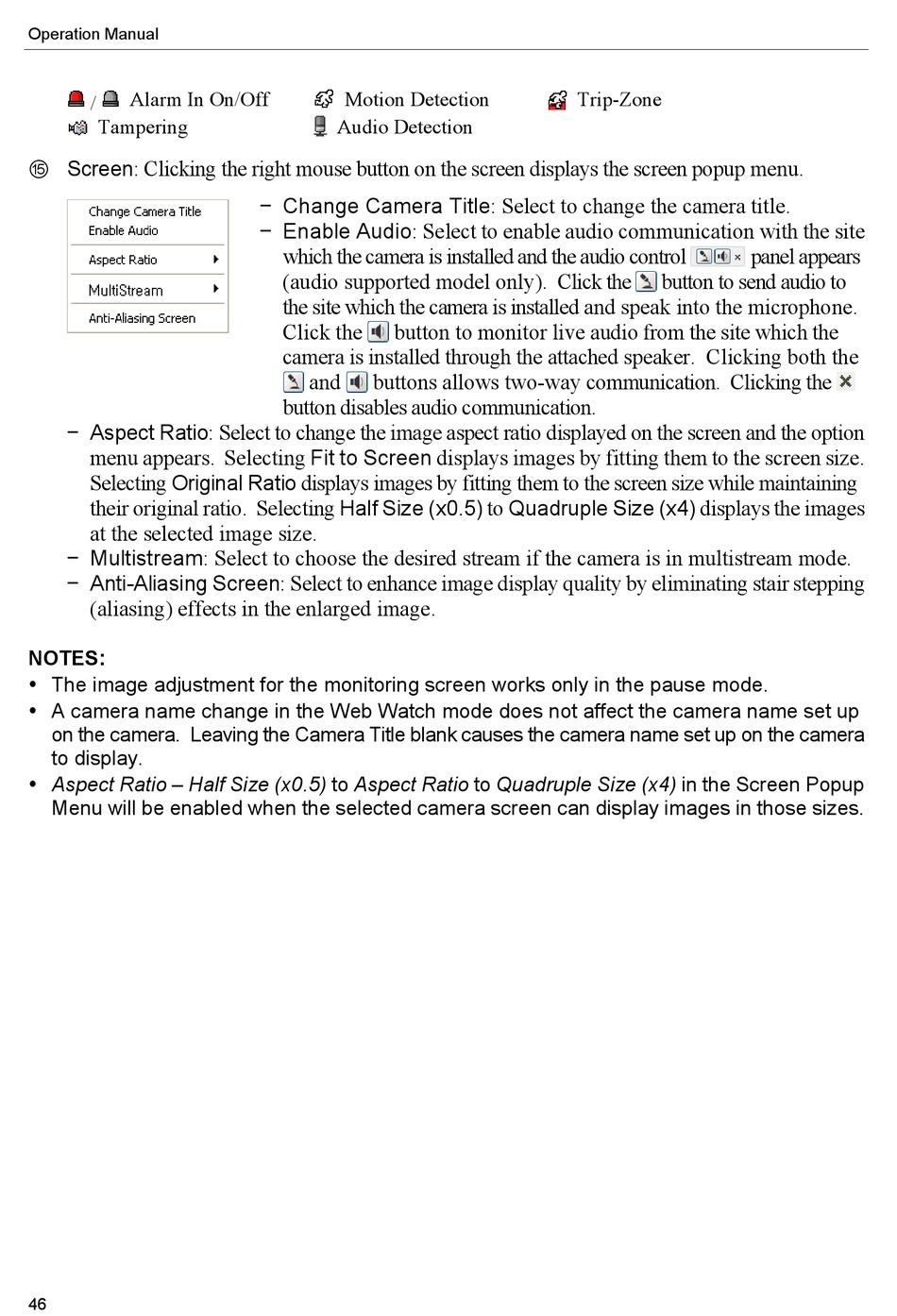

Syscom Video Direct IP Operation Manual page 52

Operation Manual
Alarm In On/Off
/
Tampering
⑮ Screen: Clicking the right mouse button on the screen displays the screen popup menu.
− Aspect Ratio: Select to change the image aspect ratio displayed on the screen and the option
menu appears. Selecting Fit to Screen displays images by fitting them to the screen size.
Selecting Original Ratio displays images by fitting them to the screen size while maintaining
their original ratio. Selecting Half Size (x0.5) to Quadruple Size (x4) displays the images
at the selected image size.
− Multistream: Select to choose the desired stream if the camera is in multistream mode.
− Anti-Aliasing Screen: Select to enhance image display quality by eliminating stair stepping
(aliasing) effects in the enlarged image
NOTES:
 The image adjustment for the monitoring screen works only in the pause mode.
 A camera name change in the Web Watch mode does not affect the camera name set up
on the camera. Leaving the Camera Title blank causes the camera name set up on the camera
to display.
 Aspect Ratio – Half Size (x0.5) to Aspect Ratio to Quadruple Size (x4) in the Screen Popup
Menu will be enabled when the selected camera screen can display images in those sizes.
46
Motion Detection
Audio Detection
− Change Camera Title: Select to change the camera title.
− Enable Audio: Select to enable audio communication with the site
which the camera is installed and the audio control
(audio supported model only). Click the
the site which the camera is installed and speak into the microphone.
Click the button to monitor live audio from the site which the
camera is installed through the attached speaker. Clicking both the
and buttons allows two-way communication. Clicking the
button disables audio communication
Trip-Zone
.
.
panel appears
button to send audio to
