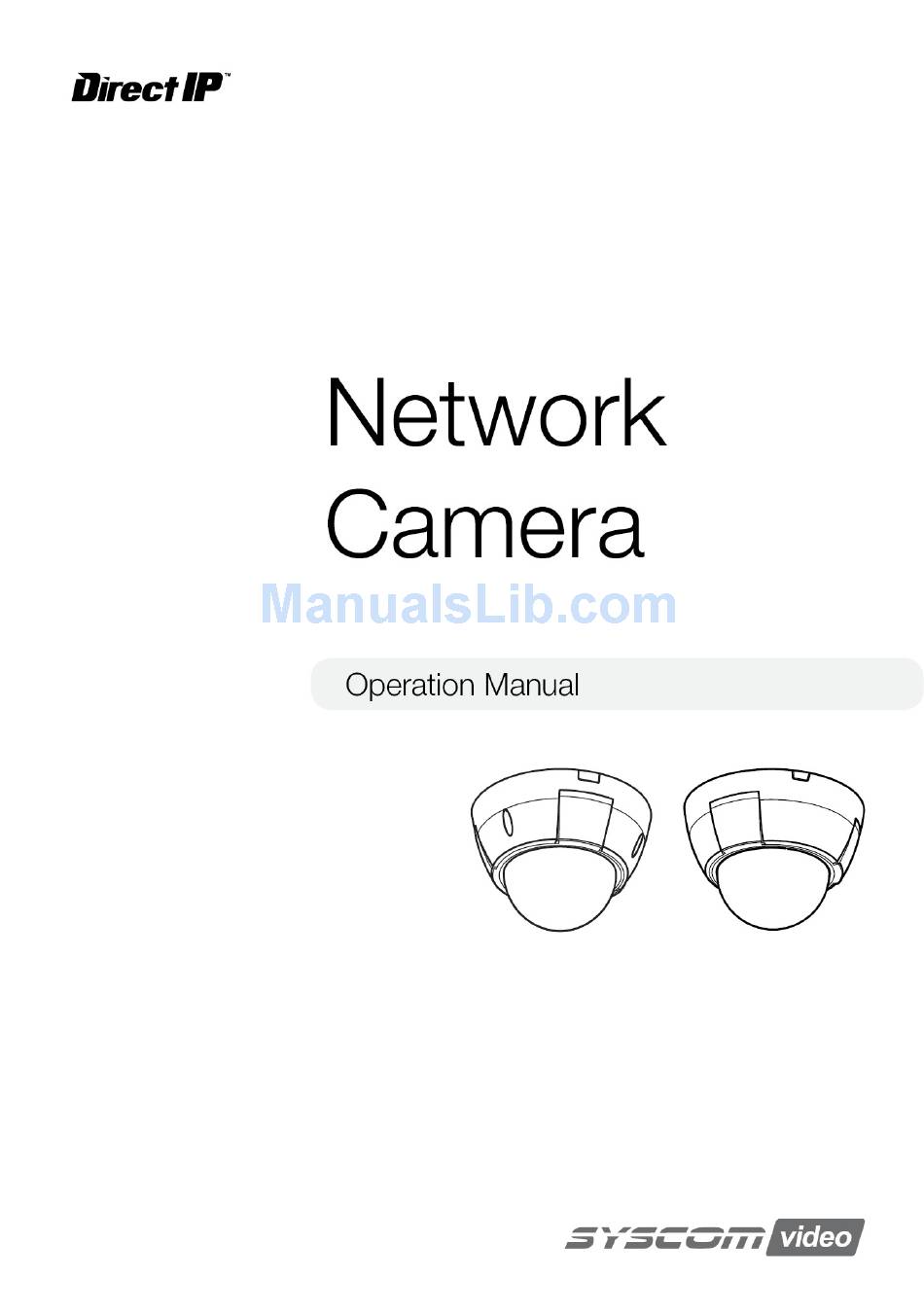

Network Camera WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. COMPLIANCE NOTICE OF FCC: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
Operation Manual Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read Do not overload wall outlets and extension cords as this can before the appliance is operated. result in the risk of fire or electric shock. 2.
Network Camera Table of Contents Chapter 1 — Introduction ................1 In This Manual ..................1 Features ....................1 Typical Applications ................. 2 With DirectIP NVR ................2 With Non-DirectIP NVR or Without NVR ......... 3 Chapter 2 — Installation................5 Package Contents ..................
Network Camera Chapter 1 — Introduction In This Manual This manual is intended for users of the network camera and includes instructions for using and managing the camera on the network. Features This network camera compresses live video and transmits the video over Ethernet connections. The camera can be accessed, configured and managed by using the INIT (Integrated Network Installation Tool) program.
Operation Manual NOTES: In this manual, a “remote system” refers to a PC that the remote program (iNEX Basic or WebGuard) is running. Remote monitoring and recording through multistream are available by using the iNEX Basic program provided with the camera. Typical Applications With DirectIP NOTE: See the NVR operation manual for explanation about setting up the camera.
Network Camera Chapter 2 — Installation Package Contents Network Camera Installation CD (INIT/iNEX Basic software and operation manual) Quick Guide Mount Kits Desiccant*, Cable Access Hole Rubber* * It is provided only for the models that support IP-66 level. Dimensions Vandal Dome Model Plastic Dome Model...
Operation Manual Illustrated Parts List Vandal Dome Model < Dome Cover > < Dome Cover – Bottom Side View > ① Side Cable Access Hole ② Safety Wire ③ Dome Cover Setscrew < Shield Case* > < Body > * The shield case is provided for IR LED non-supported models only. ①...
Network Camera Plastic Dome Model < Dome Cover > < Shield Case* > ① Side Cable Access Hole * The shield case is provided for IR LED non-supported models only. < Body > ① IR LED ② Lens ③ Rotation Base ④...
Operation Manual Heater: Allows the camera to operate in a sub-zero temperature (Heater supported model only). It operates with 12 VDC power only. Rotation Base: Allows you to adjust the rotation angle by turning the rotation base clockwise or counterclockwise.
Network Camera Lens ① Focus Lever: Adjust the focus by turning the lever clockwise or counterclockwise. Once it is set, twist the setscrew clockwise to lock it. ② Zoom Lever: Adjust the zoom by turning the lever clockwise or counterclockwise. Once it is set, twist the setscrew clockwise to lock it.
Page 16
Operation Manual Video − CVBS, GND: Connect two wires from the cable to the camera and the other connector from the cable to a monitor. This is intended for video preview while adjusting the camera. Configure the video signal (NTSC or PAL) for video output in Remote Setup (System – General menu). ...
Network Camera Mounting < Vandal Dome Model > < Plastic Dome Model > Mounting Template Mounting Template 1. Screw the bottom cover to the wall or ceiling by using the mounting screws provided with the camera. Use the mounting template provided with the camera. 2.
Operation Manual View Angle Three-axis lens positioning is supported. ① Rotation: Adjusts the rotation angle. Move the rotation base clockwise or counterclockwise. ② Tilt: Adjusts the tilt angle. Loosen the tilt adjustment screws, move the lens up and down and tighten the screws to lock the angle.
Network Camera Chapter 3 — Remote Setup Remote Setup allows you to change all settings of a camera. Camera Protocol The camera supports DirectIP and Open protocols. DirectIP Protocol: − It enables connection to the camera without the need to configure network settings of the camera by using with a DirectIP NVR.
Operation Manual NOTE: You can also change the settings by using remote programs. Clicking a menu on the left side of the Remote Setup screen displays the current settings for that menu on the right side of the screen. Clicking a submenu under each menu allows you to change the settings.
Network Camera System You can change a camera’s system information, import or export all settings, and add users or groups. General Language: Choose the language to be used during remote setup. Name: Enter the camera name (up to 31 characters including spaces). ...
Operation Manual − Import Setup…: Click to apply the settings saved as a .dat file format to the camera. A setup screen appears allowing you to select the setup file. You can select whether or not to include network settings (except FEN setting) when the setup is applied. Refer to the Network setup for details of the network settings.
Network Camera NOTE: If you want to use a domain name instead of the IP address of the time server, the DNS server must be set up properly when setting Network – IP Address setup. If you want to use a name instead of the IP address or the domain name of the time server, the FEN function must be set up properly when setting the Network –...
Operation Manual – Setup: The user can set up the system. – Color Control: The user can control brightness, contrast, hue and saturation for cameras. – Alarm-Out Control: The user can reset the output during an alarm. – System Check: The user can view and check the remote system status. –...
Network Camera − DHCP: Select when the camera is networked via DHCP (Dynamic Host Configuration Protocol). Click the OK button, and a temporary IP address is automatically assigned to the camera. The camera periodically will be issued a new IP address automatically. −...
Operation Manual Camera Name: Enter the camera name to be registered on the FEN server. Check whether or not the name is available by clicking the Check button. Help Desk: Choosing the OK button registers the camera on the FEN server. Proper FEN settings will display the help desk information of the FEN server.
Page 27
Network Camera Use, Port: Check the box to enable and enter the port number. Admin, Watch, Record and Search ports are set to use by default and you cannot change it. Checking the WebGuard or RTSP box allows you to connect to the camera by using the WebGuard program or media players, such as VLC Player, supporting RTSP (Real-Time Streaming Protocol) service.
Operation Manual CAUTIONS: When changing the port settings, you must change the port settings on remote programs too. When using the HTTPS protocol, the ONVIF protocol might not work. Bandwidth Control You can control the network bandwidth by limiting the network bandwidth of the camera depending on the network traffic.
Network Camera Security IP Filtering: Check the box to use the IP filtering function. You can allow or block connections to the camera by designating IP addresses. − Add: Click the button to add IP addresses to the Allow List or Deny List to allow or block connection to the camera.
Operation Manual IEEE 802.1X Check the IEEE 802.1X box to use the IEEE 802.1X network connection authentication function. Certificates: Uploads a certificate or private key for network connection depending on the authentication type. Entering a private key password might be required depending on the authentication type.
Network Camera Video You can set up camera setting and features for streaming, webcasting, MAT and privacy masking. Camera Image Sensor: Click the tab to set up image sensor settings. Mirroring: Check the Horizontal or Vertical box to flip images horizontally or vertically. ...
Page 32
Operation Manual − HSBLC (High Suppress Backlight Compensation): When a certain area of images is very bright in the screen due to backlight under low lighting conditions and it causes the other area to be very dark, this function provides the other area of images brightly and clearly by blocking the backlight in the certain area.
Page 33
Network Camera Exposure: Click the tab to set up exposure settings. AE Target Gain: Set the target gain for the exposure compensation. The camera compensates the exposure automatically based on the selected target gain. The higher the value is, the brighter the images are.
Page 34
Operation Manual Day & Night: Click the tab to set up day & night settings. IR LED Supported Model IR LED Non-Supported Model...
Page 35
Network Camera B&W Mode: When in the black and white mode, images are displayed in black and white and are clearer in low light conditions. This feature will be disabled if the Day & Night Mode event action is enabled during the Event – Alarm In setup. −...
Page 36
Operation Manual Miscellaneous: Click the tab to set up other settings. IR LED Supported Model IR LED Non-Supported Model Video Output: Select t he video signal for video output...
Network Camera Smart IR: Set the brightness of the IR LED (IR LED supported model only). Check the box to adjust the brightness automatically. The sensor in the middle of IR LEDs detects illumination. Uncheck the box to set the brightness manually. The higher the value is set, the brighter it is. Streaming ...
Page 38
Operation Manual Frame Rate: Set the frame rate of images for streaming. The frame rate of the current stream cannot exceed that of a stream of higher priority if the resolution of the current stream is the same as that of the stream of higher priority. ...
Network Camera Webcasting The camera can stream live video from the camera to a website. HTML Code: Copy the HTML Code that is displayed on the screen and paste it in your web page code. Stream: Select a stream to use for webcasting. Only the streams in use are available. NOTE: To use the webcasting service, you must check the Allow Anonymous Login option during 3.2 System –...
Operation Manual Check the MAT box to use the MAT (Motion Adaptive Transmission) function for video streaming and recording. Sensitivity: Set the motion sensitivity. The higher the number is, the more sensitive it is. Inactivity Period: Set the inactivity period. The camera will transmit or record images in Frame Rate set below until any change is detected after the inactivity period when no motion is detected during the preset inactivity period.
Network Camera Privacy Masking Check the Privacy Masking box to restrict monitoring of specific areas for privacy reasons. The privacy masking areas are displayed in the black color during monitoring. Privacy Masking Setup: Set up privacy masking areas (max. 16). −...
Operation Manual Audio You can set up audio in and out. Input/Output Audio CODEC: Select an audio codec. Input: Check the box to enable audio in and adjust the volume. Output: Check the box to enable audio out and adjust the volume. NOTE: The camera does not have amplified audio output, so you need to use a speaker with an amplifier.
Network Camera Event Action You can set up event actions to be taken when the camera detects events. Alarm Out Check the Alarm Out box to activate alarm out. Dwell Time: Select the alarm-out dwell time. An alarm out is activated for the preset dwell time after detecting an event.
Operation Manual Email Check the Email box to send an email. SMTP Server, Port: Enter the IP address or domain name and port number of the SMTP server attained from your network administrator. You can use the domain name instead of the IP address if you set up the DNS server when setting up the network.
Network Camera Remote Callback Check the Remote Callback box to send a callback message to remote systems (Not supported for the WebGuard program). IP Address, Port: Enter the IP addresses and port numbers of the remote systems to send a message. ...
Operation Manual Audio Alarm Check the Audio Alarm box to sound by playing back an audio file. List: Displays the audio file to be played back. You can add or delete an audio file (.wav) (16 bits/16 KHz encoded file only) by clicking the Add or Remove button. Selecting an audio file in the list and clicking the Play or Stop button allows you to test the sound by playing back the selected audio file.
Network Camera FTP Upload Check the FTP Upload box to upload event detected images in JPEG file format to an ftp server. FTP Server: Click the Add button to register an ftp server. Clicking the Remove button deletes the registered ftp server. When an event is detected, the event detected images will be uploaded in JPEG file format to the ftp server registered as a primary server.
Operation Manual − Upload Frequency: Displays only when the upload type is set to Always. Set up the upload rate, and the preset number of images will be uploaded to the ftp server during the preset time. − Upload 1 image per: Displays only when the upload type is set to Event. Set up the upload rate.
Page 49
Network Camera Check the Record box to enable recording on a micro SD memory card. Ensure that the SD memory card (Class 6 or higher) is inserted properly. Total Capacity: Displays the total capacity of the SD memory card when an SD memory card is inserted properly.
Page 50
Operation Manual Settings: Click the tab to set up recording settings. Recording Stream: Select a stream to use for recording. − Time-Lapse/Pre-Event, Event: Allows using a different stream depending on the recording mode. Time-Lapse/Pre-Event: Select the stream to use for recording when in the time-lapse recording mode or for pre-event recording when in the event recording mode.
Network Camera NOTES: Searching and playing back video recorded on the SD memory card is supported by using a remote program. Refer to the User’s Manual for the remote program for details. Searching and playing back video recorded on the SD memory card might not be very smooth when using a remote program while also recording video on the SD memory card.
Network Camera Check the Alarm In box to set up an alarm-in event. When the camera senses an input on the alarm input connector, it considers it as an event. Title: Enter the alarm-in device’s name. Type: Select the alarm-in type. ...
Page 54
Operation Manual Check the Motion Detection box to set up a motion detection event. When the camera detects a motion in a configured motion detection zone, it considers the motion as an event. Sensitivity: Set the motion sensitivity for daytime and nighttime independently. The higher the number is, the more sensitive it is.
Network Camera Trip-Zone Check the Trip-Zone box to set up a trip-zone event. When the camera detects a moving to or from the preset trip-zone, it considers the moving as an event. Sensitivity: Set the moving sensitivity for daytime and nighttime independently. The higher the number is, the more sensitive it is.
Operation Manual − Remote Callback: Check the box and select the remote systems to send a message (Not supported for the WebGuard program). − Audio Alarm: Check the box and select the audio file (.wav) to sound. − FTP Upload: Check the box to upload images to an ftp server. −...
Network Camera − Send Email: Check the box to send an email. Selecting Image Attachment attaches an event detected image file (.JPG) to the email. − Remote Callback: Check the box and select the remote systems to send a message (Not supported for the WebGuard program).
Operation Manual − Remote Callback: Check the box and select the remote systems to send a message (Not supported for the WebGuard program). − Audio Alarm: Check the box and select the audio file (.wav) to sound. − FTP Upload: Check the box to upload images to an ftp server. −...
Page 59
Network Camera − Remote Callback: Check the box and select the remote systems to send a message when the SD memory card is inserted to or removed from the camera (Not supported for the WebGuard program) NOTE: You must properly configure the Email and Remote Callback settings when setting them up to send an email or a message.
Network Camera Chapter 4 — WebGuard You can monitor live video images from the camera or search recorded image saved in the SD memory card on the web browser by using the WebGuard program. Computer system requirements for using WebGuard are: ®...
Page 62
Operation Manual NOTES: Do NOT close the LOGIN window during the WebGuard operation, otherwise, it will cause a script error when switching between Web monitoring and Web search modes, and you will need to restart the WebGuard program. There might be a problem with the bottom of the WebGuard page being cropped caused by the address or status bars.
Network Camera Web Monitoring Mode ① Log Out: Click to log out of the WebGuard program. ② Version: Position the mouse pointer on the logo to see the WebGuard program version. ③ Date/Time: It displays the current date and time. ④...
Page 64
Operation Manual ⑮ Event Status Window: The event status window at the bottom displays a list of events that were detected in the camera. Alarm In On/Off Motion Detection Trip-Zone Tampering Audio Detection Screen: Clicking the right mouse button on the screen displays the screen popup menu. −...
Network Camera Web Search Mode ① Log Out: Click to log out of the WebGuard program. ② Version: Position the mouse pointer on the logo to see the WebGuard program version. ③ Date/Time: It displays the date and time of the recorded image. ④...
Page 66
Operation Manual ⑮ Calendar: It allows you to search for recorded data by date. Dates containing recorded video are highlighted in light blue. Selecting a data containing recorded video loads the earliest recording from that date. Selected date is highlighted in orange. Time-Lapse Search: Click to enter the time-lapse search mode whichIt allows you to search for recorded data by time and then play back images found within the time...
Network Camera Appendix LED Indicators LED Status Description Unlit No power connected to the unit. Power LED Flicker The unit is booting. The unit is operating. Network LED The unit is connected to a network. Power LED & Flicker The unit is upgrading the software. Network LED sequentially Connector Pin Outs...
Operation Manual Map of Screens (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio Input/Output Event Action Alarm Out Email Remote Callback Audio Alarm...
Network Camera Troubleshooting Problem Possible Solution Check power cord connections. No Power Confirm that there is power at the outlet. Check the ground status of the PoE switch and the connected input/ PoE switch is not output devices to the camera. If they are not grounded, use them recognized.
Page 70
Operation Manual CAMERA Image Sensor 1/2.7" CMOS IR LED On: 0 Lux @ F 1.6 (30 IRE) IR LED supported model: 0 Lux @ F 1.2 (30 IRE) Minimum Illumination IR LED non-supported model: 0.5 Lux @ F 1.6 (30 IRE) 0.5 Lux @ F 1.2 (30 IRE) Scanning Mode Progressive scan...
Page 71
Network Camera INPUTS/OUTPUTS Video Output 1 Composite, 1 Vp-p Audio Input 1 line in Audio Output 1 line out 1 TTL, NC/NO programmable, 4.3V (NC) or 0.3V (NO) threshold, Alarm Input 5 VDC Alarm Output 1 TTL open collector, 30mA @ 5 VDC Network Connectivity 10/100 Mbps Ethernet It is intended for video preview while adjusting the camera.
