Operation Manual
− Send Email: Check the box to send an email. Selecting Image Attachment attaches an event
detected image file (.JPG) to the email.
− Remote Callback: Check the box and select the remote systems to send a message (Not
supported for the WebGuard program).
− Audio Alarm: Check the box and select the audio file (.wav) to sound (audio supported model
only).
− FTP Upload: Check the box to upload images to an ftp server.
− Move PTZ to: Select the desired preset number to move to. You must set preset locations
using remote programs.
NOTES:
 You must properly configure the settings related to each event action when setting them up to
enable event actions. Refer to the Event Action setup.
 This setting does not affect the motion detection by the PIR sensor (alarm supported model).

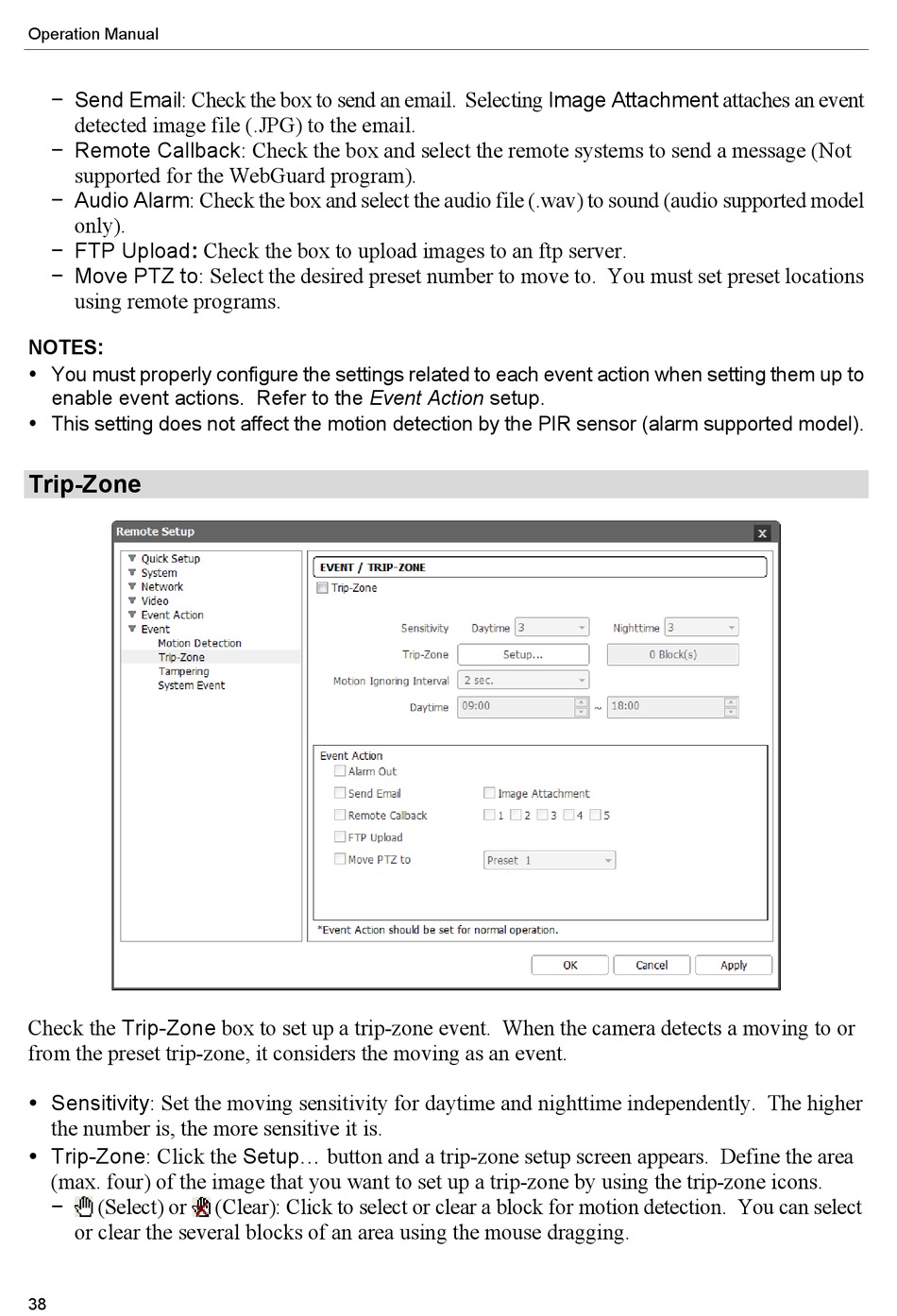

Trip-Zone

Check the Trip-Zone box to set up a trip-zone event. When the camera detects a moving to or
from the preset trip-zone, it considers the moving as an event.
 Sensitivity: Set the moving sensitivity for daytime and nighttime independently. The higher
the number is, the more sensitive it is.
 Trip-Zone: Click the Setup... button and a trip-zone setup screen appears. Define the area
(max. four) of the image that you want to set up a trip-zone by using the trip-zone icons.
−
(Select) or
or clear the several blocks of an area using the mouse dragging.
38
(Clear): Click to select or clear a block for motion detection. You can select
