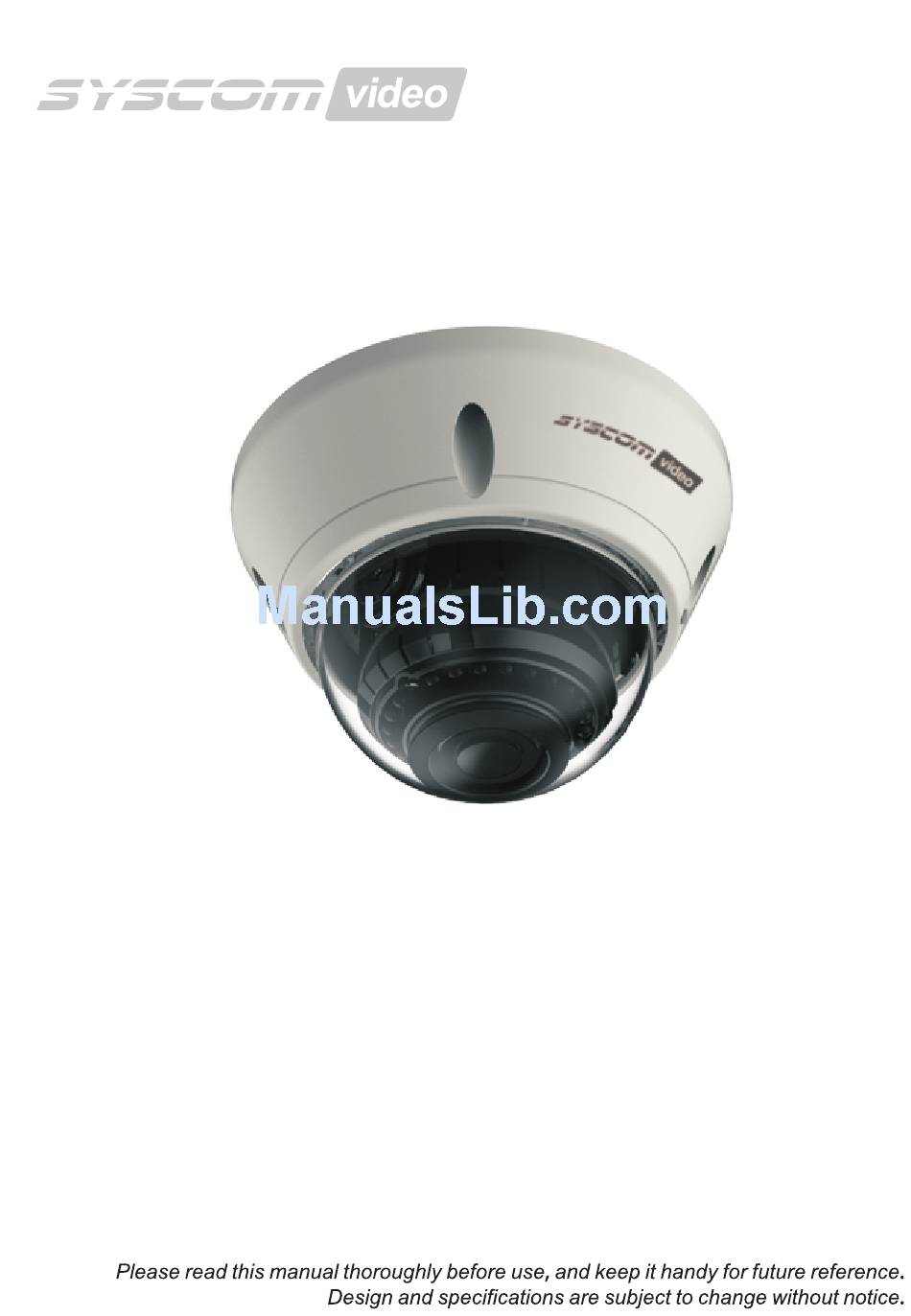

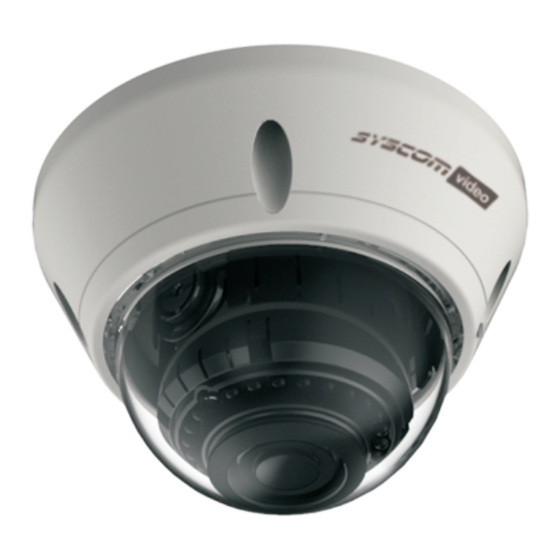

- Page 1 XD1000VA Mega Analog VP Dome Camera Instruction Manual 3-AXIS INFRARED-LED VP DOME CAMERA...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. . Do not block any ventilat ion openings. Install in accord ance with the manufacturer`s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Contents & Package
CONTENTS & PACKAGE VIDEO OUT CHECK... - Page 5 1/3" 1.3M 1/3"...
- Page 6 2.8-12...
- Page 7 1. Make mounting holes and cable hole in the place (ceiling or wall) to which this dome camera is installed using the Drilling guide label. 2. Drill the mounting location, using the Drillng guide. 3. Attach the housing to the ceiling using suitable fasteners, PTS1 5x30 screws are supplied only use if they are suitable.
- Page 9 BACKLIGHT WHITE BAL SENS-UP D-WDR RESET <BACKLIGHT> <WHITE BAL> <DAY&NIGHT> AWC->SET INDOOR HSBLC OUTDOOR MANUAL <RESET> SHARPNESS CAM TITLE FACTORY MONITOR RETURN CVBS CROP D-EFFECT VIDEO OUT LANGUAGE D-ZOOM VERSION SMART D-ZOOM RETURN RETURN...
- Page 10 MAIN MANU MAIN MANU LENS LENS MANUAL EXPOSURE EXPOSURE BACK LIGHT BACK LIGHT WHITE BAL WHITE BAL DAY&NIGHT AUTO DAY&NIGHT AUTO IMAGE IMAGE FUNCTION FUNCTION SYSTEM SYSTEM RESET RESET EXIT EXIT AGC, SENS-UP, BRIGHTNESS, D-WDR and DEFOG function of the camera. 1/50000, x2 ~ x30 Adjust the Auto Gain Control level.
- Page 11 BACKLIGHT The BACKLIGHT menu is used to the ability to expand the dynamic range and to prevent back lighting from the image. 1)WDR Select the Dynamic Range level. * When WDR is ON, D-WDR, D-ZOOM, SMART D-ZOOM and DIS function can not turn on. 2)BLC Prevents such a back light effect to secure a clear image under All illumination environments.
-
Page 12: White Balance
WHITE BALANCE The screen color can be adjusted by using the Auto White Balance function. It compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. 1) AUTO Automatically adjust color temperature. - Page 13 DAY&NIGHT mode are changed according to the brightness of the image. Use only when the camera is installed in a dark place but the camera is viewing a bright place. When used in a normal installation, hunting may occur. BURST ON, OFF IR SMART LEVEL 1~15...
- Page 14 The IMAGE menu provides the ability to adjust the SHARPNESS, LSC, D-EFFECT, DIS, D-ZOOM and SMART D-ZOOM functions of the camera. Adjust the SHARPNESS level. ▶ 0 - 15 1) SHARPNESS Select the lens Lens Shading Compensation. ▶ ON, OFF 2) LSC Select real or still mode ▶...
- Page 15 1) DNR Select Digital Noise Reduction. ▶ ON, OFF ▶ ON, OFF ▶ ON, OFF (Sensitivity 0 - 100) SMART NR Adjust the 3DNR level ▶ 0 - 100 LEVEL Detects the Motioned Object in the image. ▶ ON, OFF 2) MOTION Select the Motion area ▶...
- Page 16 <FUNCTION> MAIN MANU FUNCTION LENS EXPOSURE MOTION BACK LIGHT PRIVACY WHITE BAL DEFECT DET DAY&NIGHT AUTO RETURN IMAGE FUNCTION SYSTEM RESET EXIT <DNR> RETURN <MOTION> MOTION FUNCTION SELECT AREA1 DISPLAY MOTION SENSITIVITY |▪▪▪▪▪| 60 PRIVACY MOTION VIEW DEFECT DET DEFAULT RETURN RETURN <...
- Page 17 SYSTEM The IMAGE menu provides the ability to adjust the CAM TITLE, RS485, MONITOR, CVBS CROP, VIDEO OUT, LANGUAGE and, VERSION functions of the camera. 1) CAM TITLE Maximum of 15 characters are allowed. Select the Monitor type ▶ LCD, CRT 2) MONITOR Select the Gamma level ▶...
- Page 18 < DISPLAY > SYSTEM CAM TITLE GAMMA AUTO MONITOR ADAPT.LEVEL |▪▪▪▪▪| 100 CVBS CROP BLUE GAIN |▪▪|▪▪| 64 VIDEO OUT NTSC RED GAIN |▪▪|▪▪| 66 LANGUAGE ENGLISH RETURN VERSION RETURN ▪▪ ▪▪ BLACK LEVEL | | | + BLUE GAIN |▪▪|▪▪| +0 RED GAIN |▪▪|▪▪| +0...
- Page 19 XD1000VA MAX 4.3 Watts (360mA) 1/3" 1.3M Sony CMOS 1312(H) x 1069(V) 1296(H) x 1041(V) 1000 TVL NTSC / PAL Changed by OSD OFF / WDR / BLC / HSBLC AUTO, 1/60(1/50), FLK ~ 1/50,000sec 0 ~ 100 0 ~ 15...
- Page 20 1/3" 2.8 - 12mm 2.8mm : 109˚ 12mm : 37.8˚ 1.14 lb. (0.530kg) 1.44 lb. (0.650kg)
- Page 24 PRINTED IN KOREA 5030XXXXA...
