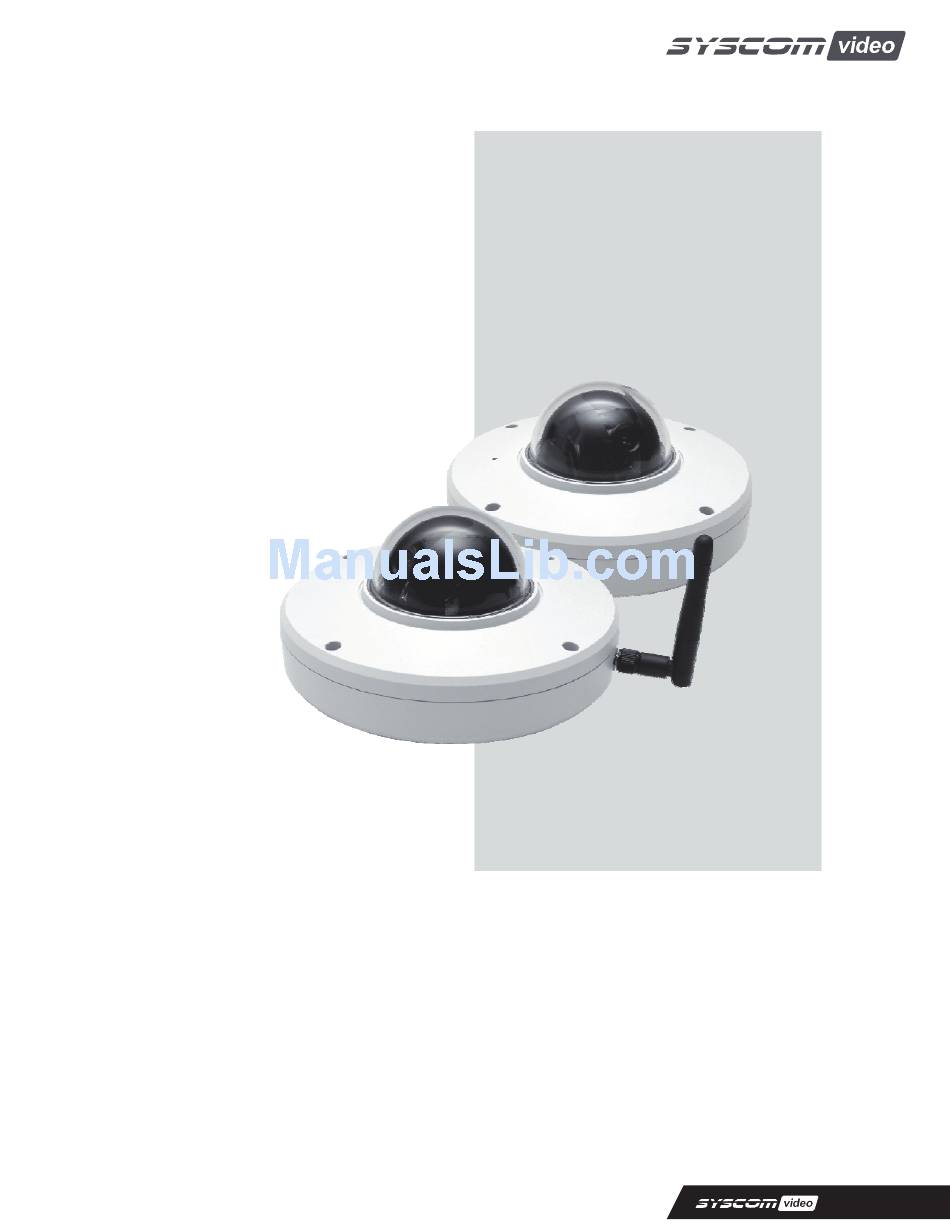

Page 1: Network Camera

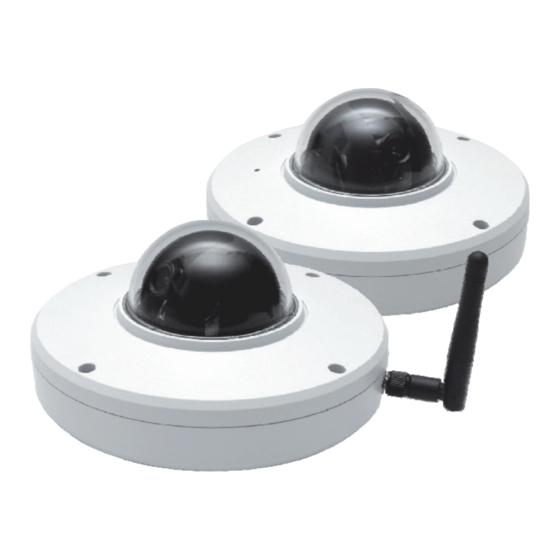

Quick Installation Guide PT Mini Dome Full HD Network Camera Please read this manual thoroughly before use, and keep it handy for future reference. - Page 2 1. Description The Network Camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Camera at once or a single user can monitor various network cameras at the same time.
- Page 3 1.2 Layout onnection Cable Wire Color Description Gray Audio line output, RCA Jack Red: DC12V Main Power, 2pin terminal White: GND Blue: GND Ethernet, RJ-45 port compatible with 10/100Mbps having Gray: ALARM INPUT Brown: GND PoE functionality. Modular Jack Yellow : ALARM OUT...
- Page 4 Camera Dimension See the diagrams below for the exact dimension - WIFI MODEL Dimensions Unit: mm - Non WIFI MODEL Dimensions Unit: mm...
-
Page 5: Camera Installation
2. Installation • Camera Installation Carefully remove the contents from the box, and verity that nothing was damaged in shipment. 1) Make screw holes for camera on the ceiling with Template Sheet 2) Disassemble a camera by Camera Cover 3) Fix the camera set using Anchors(2x) and Screws(2x) to the ceiling. •... - Page 6 • Connecting the Wireless using WPS function (wifi model only) Follow steps for a proper operation. 1. Make sure your AP (Access Point) and Operating System support WPS (Wi-Fi Protected Setup) functions. WPS enables easy setup with compatible APs. 2. Press the WPS button on the camera board. You can then see the Status LED is blinking.
-
Page 7: Network Connection And Ip Assignment
2.2 Network Connection and IP assignment The Network Camera supports the operation through the network. When a camera is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager”... -
Page 8: Operation
3. Operation The Network Camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls. -
Page 9: Access From The Internet
3.2. Access from the internet Access from the internet once connected, the Network Camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the network camera. -
Page 10: Control Toolbar
The resolution drop-down list allows you to select the most suitable one out of video resolutions to be displayed on live view page. out of video resolutions to be displayed on live view page. The protocol drop-down list allows you to select which combination of protocols and methods to use depends on your viewing requirements, and on the properties of your network. -
Page 11: Network Camera Setup
3.5 Network Camera Setup This section describes how to configure the network camera, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic, Live View, Video & Image and System Configuration. You can configure the network camera by clicking Setup in the top right-hand corner of the Live View page. - Page 12 PT Mini Dome Full HD Network Camera Printed in Korea...
