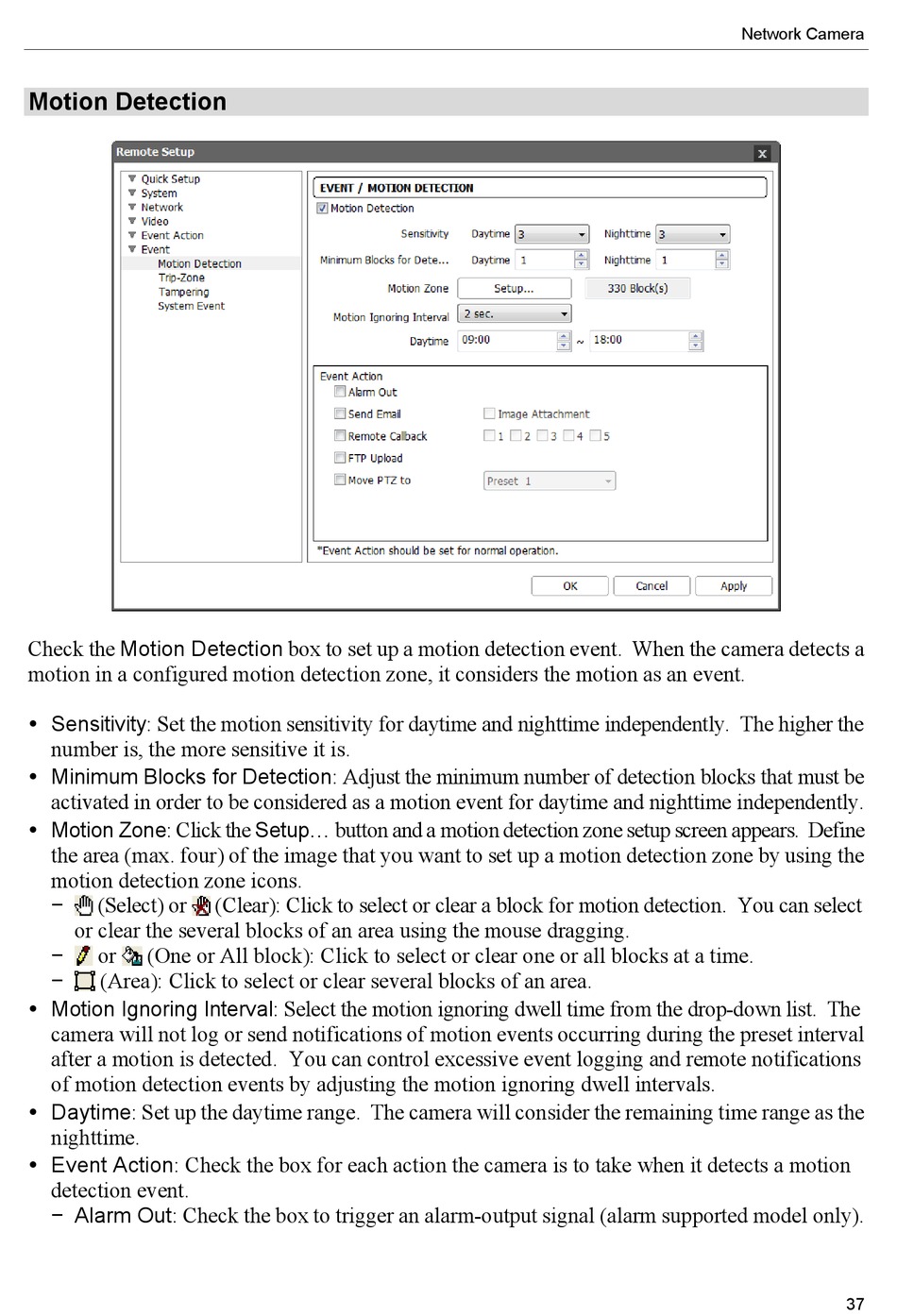

Motion Detection

Check the Motion Detection box to set up a motion detection event. When the camera detects a
motion in a configured motion detection zone, it considers the motion as an event.
 Sensitivity: Set the motion sensitivity for daytime and nighttime independently. The higher the
number is, the more sensitive it is.
 Minimum Blocks for Detection: Adjust the minimum number of detection blocks that must be
activated in order to be considered as a motion event for daytime and nighttime independently.
 Motion Zone: Click the Setup... button and a motion detection zone setup screen appears. Define
the area (max. four) of the image that you want to set up a motion detection zone by using the
motion detection zone icons.
−
(Select) or
or clear the several blocks of an area using the mouse dragging.
− or (One or All block): Click to select or clear one or all blocks at a time.
− (Area): Click to select or clear several blocks of an area
 Motion Ignoring Interval: Select the motion ignoring dwell time from the drop-down list. The
camera will not log or send notifications of motion events occurring during the preset interval
after a motion is detected. You can control excessive event logging and remote notifications
of motion detection events by adjusting the motion ignoring dwell intervals.
 Daytime: Set up the daytime range. The camera will consider the remaining time range as the
nighttime.
 Event Action: Check the box for each action the camera is to take when it detects a motion
detection event.
− Alarm Out: Check the box to trigger an alarm-output signal (alarm supported model only).
(Clear): Click to select or clear a block for motion detection. You can select
