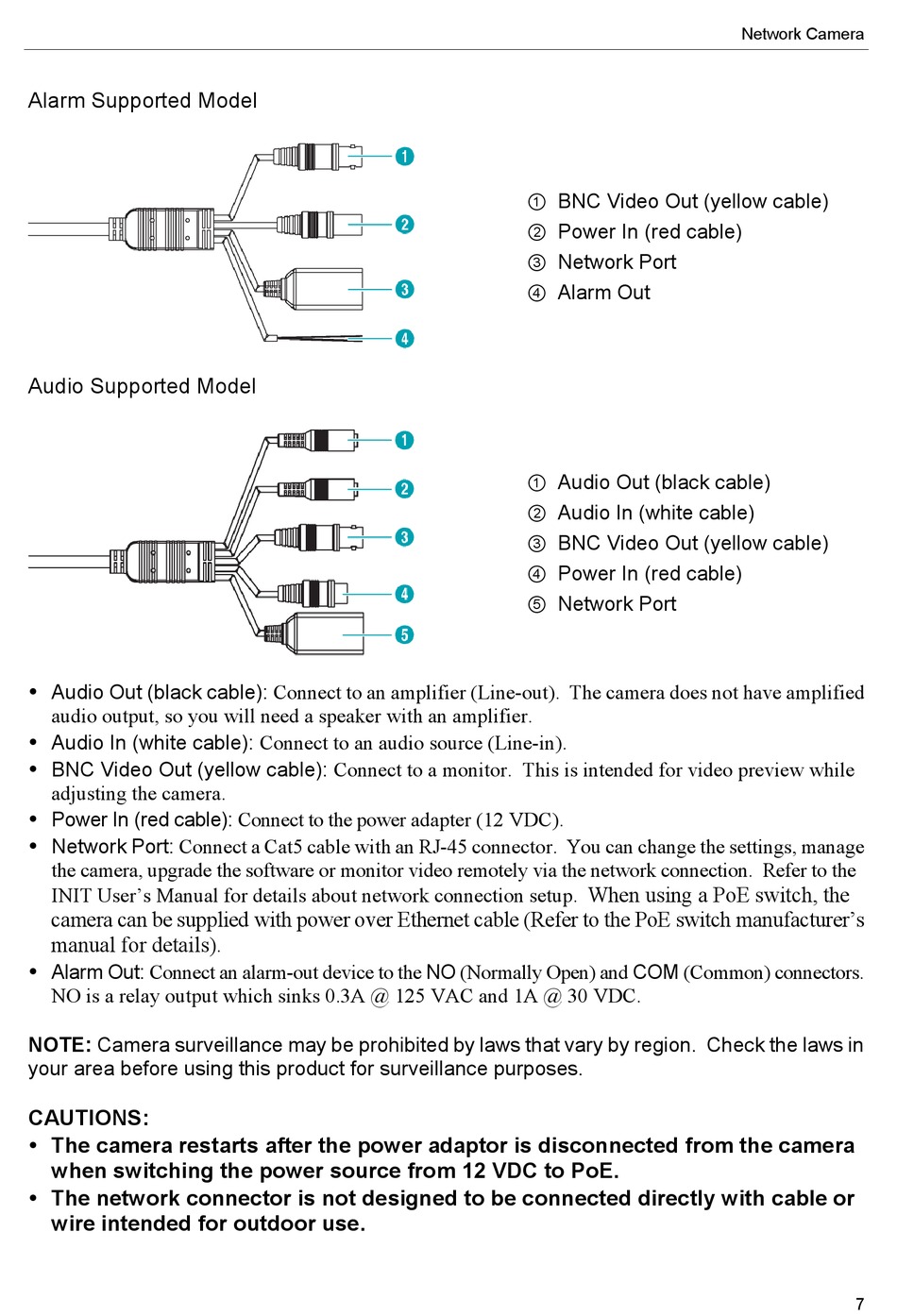

Syscom Video Direct IP Operation Manual page 13

Alarm Supported Model
Audio Supported Model

Audio Out (black cable): Connect to an amplifier (Line-out). The camera does not have amplified
audio output, so you will need a speaker with an amplifier.

Audio In (white cable): Connect to an audio source (Line-in).

BNC Video Out (yellow cable): Connect to a monitor. This is intended for video preview while
adjusting the camera.

Power In (red cable): Connect to the power adapter (12 VDC).

Network Port: Connect a Cat5 cable with an RJ-45 connector. You can change the settings, manage
the camera, upgrade the software or monitor video remotely via the network connection. Refer to the
INIT User's Manual for details about network connection setup.
camera can be supplied with power over Ethernet cable (Refer to the PoE switch manufacturer's
manual for details).

Alarm Out: Connect an alarm-out device to the NO (Normally Open) and COM (Common) connectors.
NO is a relay output which sinks 0.3A @ 125 VAC and 1A @ 30 VDC.
NOTE: Camera surveillance may be prohibited by laws that vary by region. Check the laws in
your area before using this product for surveillance purposes.
CAUTIONS:
 The camera restarts after the power adaptor is disconnected from the camera
when switching the power source from 12 VDC to PoE.
 The network connector is not designed to be connected directly with cable or
wire intended for outdoor use.
① BNC Video Out (yellow cable)
② Power In (red cable)
③ Network Port
④ Alarm Out
① Audio Out (black cable)
② Audio In (white cable)
③ BNC Video Out (yellow cable)
④ Power In (red cable)
⑤ Network Port
When using a PoE switch, the
Network Camera
7
