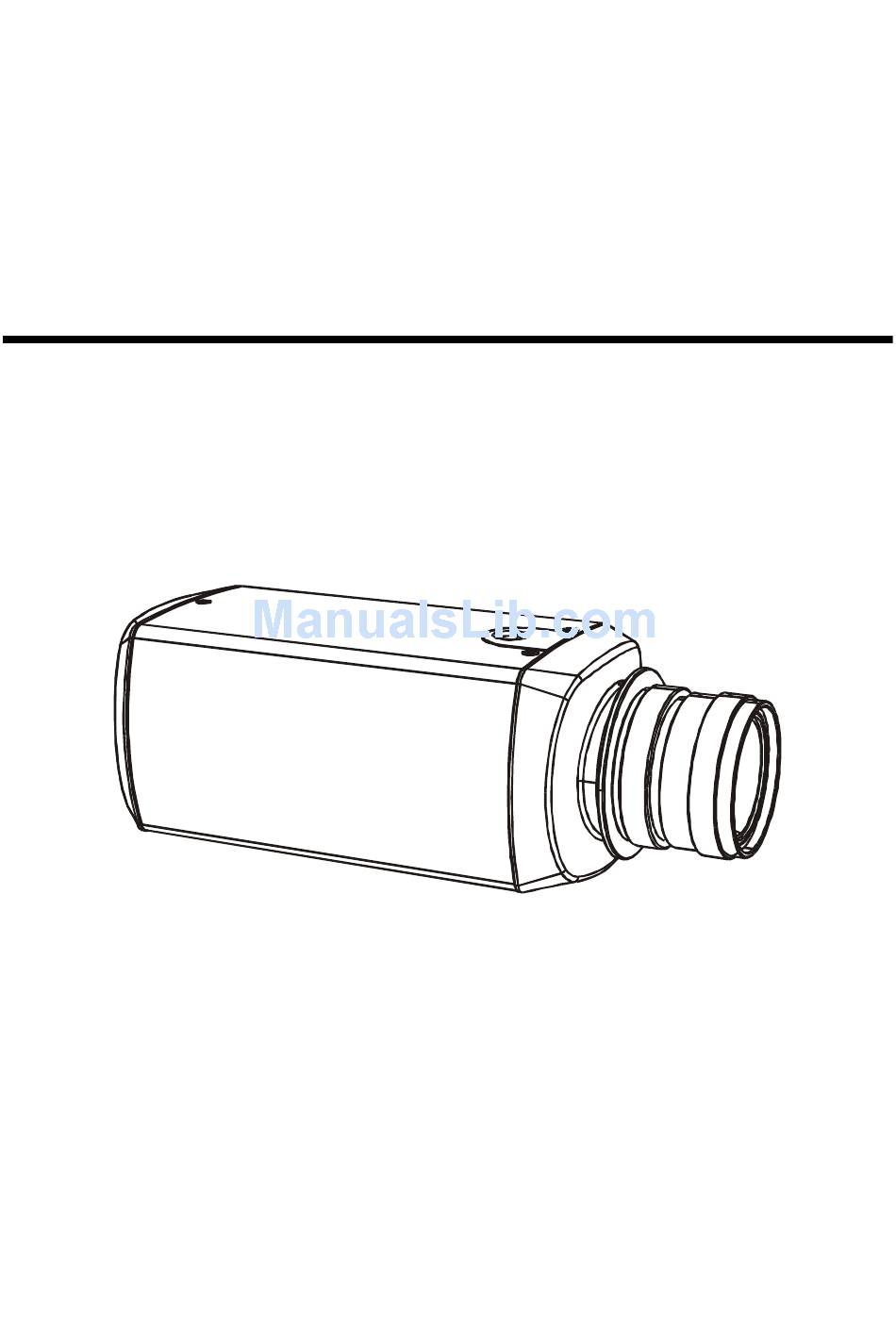

INSTRUCTION MANUAL BLACK & WHITE CAMERA 1/3” INTERLINE TRANSFER CCD STANDARD RESOLUTION HIGH RESOLUTION Please read this manual thoroughly before use, and keep it handy for future reference. - Page 2 ISSUE 2 – MAY 2001...
-
Page 3: Warnings And Cautions
WARNINGS AND CAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 4: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS READ AND RETAIN INSTRUCTIONS GROUNDING OR POLARIZATION Read the instruction manual before Equipment that is powered through a operating the equipment. Retain the polarized plug (a plug with one blade manual for future reference. wider than the other) will fit into the power outlet only one way. - Page 6 13. DAMAGE REQUIRING SERVICE 14. REPLACEMENT PARTS Unplug the equipment from the wall outlet When replacement parts are required, be and refer servicing to qualified service sure the service technician uses personnel under the following conditions: replacement parts specified by the manufacturer or that have the same When the power supply cord or the characteristics as the original part.
-
Page 7: Table Of Contents
TABLE OF CONTENTS INTRODUCTION................1 SYSTEM INSTALLATION ............2 CAMERA OVERVIEW..............4 MANUAL IRIS LENS ADJUSTMENT ........... 6 VIDEO AUTO IRIS INSTALLATION & ADJUSTMENT ....7 DC AUTO IRIS LENS INSTALLATION & ADJUSTMENT..... 9 BACK FOCUS ADJUSTMENT ........... 11 ZOOM LENS BACK FOCUS ADJUSTMENT ......12 TROUBLESHOOTING AND MAINTENANCE ...... - Page 8 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 9: Introduction
BLACK & WHITE CAMERAS STANDARD AND HIGH RESOLUTION INTRODUCTION The Standard and High resolution black and white security cameras provides SONY quality images for use in closed circuit television (CCTV) and security surveillance applications. Features: • High performance 1/3” Interline Transfer SONY CCD •... -
Page 10: System Installation
SYSTEM INSTALLATION Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Perform the following steps to install the camera. Remove all components from the package and identify the items that will be used during installation. - Page 11 Plug the other end of the cable into the video input port on the back of the monitoring device. On 12V DC models: Connect a two-conductor power cable from the power supply to the 12V DC input on the back of the camera. 12V DC CLASS2 Use a UL-listed Class 2 power...
-
Page 12: Camera Overview
CAMERA OVERVIEW SIDE VIEW C Mount Ring Back Focus Lock Screw ( C MOUNT LENS ) ( CS MOUNT LENS ) Camera Mounting Bracket Back Focus Ring BACK VIEW (12V DC) Power LED Level potentiometer (for DC type A/I lens) LEVEL Auto Iris Lens Connector... - Page 13 Back Focus Lock Screw The lock screw locks the back focus ring after adjusting. Auto Iris Lens Connector The auto-iris lens connector supplies either a video signal or DC control signal to an auto iris lens. A standard 4-pin din connector interfaces to any auto iris lens.
-
Page 14: Manual Iris Lens Adjustment
LEVEL Adjustment The LEVEL control adjusts the level of the auto iris when the A/I lens selection switch is set to the DC position and a DC lens is mounted on the camera. The A/I switch should be in the “vid” position when a video type auto iris lens is used. -
Page 15: Video Auto Iris Installation & Adjustment
VIDEO AUTO IRIS INSTALLATION & ADJUSTMENT The camera supports video-type auto iris lenses which adjust to changing light levels. Perform the following steps to install and adjust a video-type auto iris lens. If necessary, solder the lens control wires to the connector supplied with the camera. - Page 16 For ALC adjustments: To slow the reaction of the lens to changing light, set the range to the AVG setting to average the video level from the camera. Use when there are bright spots in the picture such as lights or glare from the sun.
-
Page 17: Dc Auto Iris Lens Installation & Adjustment
DC AUTO IRIS LENS INSTALLATION & ADJUSTMENT The camera supports DC-type auto iris lenses. Perform the following steps to install and adjust a DC-type auto iris lens. Solder the lens control wires to the connector supplied with the camera. Connector Cover Automatic Pin 3... - Page 18 The E/I switch should be in the “OFF” position. The A/I switch should be in the “DC” position. Apply power to the camera. Adjust the auto iris lens for an optimum picture using the LEVEL control on the back of the camera.
-
Page 19: Back Focus Adjustment
BACK FOCUS ADJUSTMENT For best results, perform back focus adjustments at night or while using a #6 or #8 welders glass in front of the lens. The focus of the camera will change slightly if the camera iris was adjusted on a light scene, then changes to a dark scene. -
Page 20: Zoom Lens Back Focus Adjustment
ZOOM LENS BACK FOCUS ADJUSTMENT The objective of back focusing a zoom lens is similar to that of a fixed focal length camera except the back focus is also adjusted to maintain the focus when “zooming” the lens in and out on a scene. Choose an object at the farthest range set for viewing with a zoom lens. -
Page 21: Troubleshooting And Maintenance
TROUBLESHOOTING AND MAINTENANCE Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. - Page 22 THIS PAGE INTENTIONALLY LEFT BLANK.
-
Page 23: Specifications
SPECIFICATIONS Power Power source 12V DC Power consumption Max. 4 Watts Sensor Information Image sensor 1/3” CCD (SONY) Chip size 6.0mm (H) x 4.96mm (V) Picture element Standard: 510 (H) x 492 (V) EIA 500 (H) x 582 (V) CCIR High: 768 (H) x 494 (V) EIA 752 (H) x 582 (V) CCIR... - Page 24 BLACK AND WHITE CAMERA 1/3” CCD STANDARD RESOLUTION HIGH RESOLUTION 50301420A...
