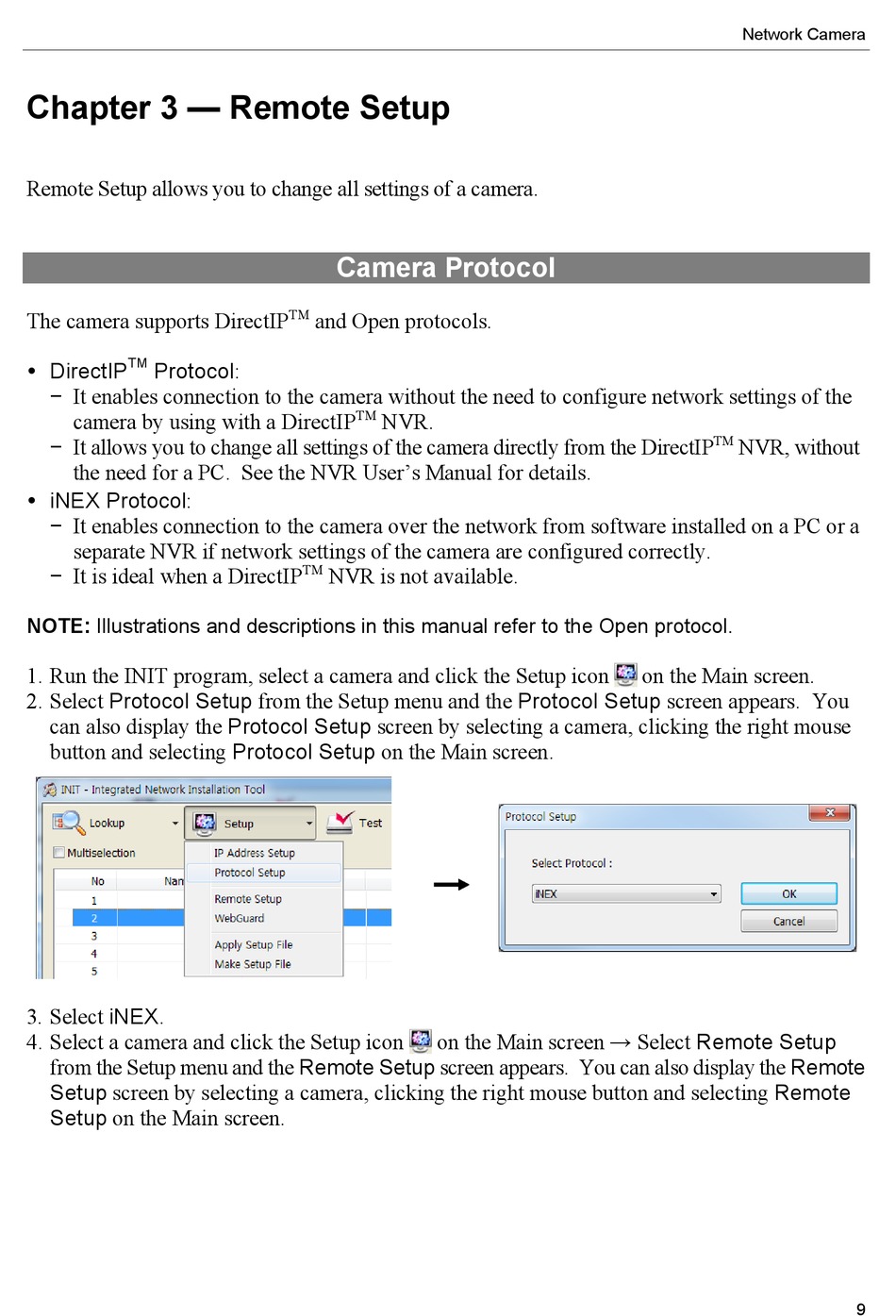

Chapter 3 — Remote Setup
Remote Setup allows you to change all settings of a camera.
The camera supports DirectIP
TM
 DirectIP Protocol:
− It enables connection to the camera without the need to configure network settings of the
camera by using with a DirectIP
− It allows you to change all settings of the camera directly from the DirectIP
the need for a PC. See the NVR User's Manual for details.
 iNEX Protocol:
− It enables connection to the camera over the network from software installed on a PC or a
separate NVR if network settings of the camera are configured correctly.
− It is ideal when a DirectIP
NOTE: Illustrations and descriptions in this manual refer to the Open protocol.
1. Run the INIT program, select a camera and click the Setup icon
2. Select Protocol Setup from the Setup menu and the Protocol Setup screen appears. You
can also display the Protocol Setup screen by selecting a camera, clicking the right mouse
button and selecting Protocol Setup on the Main screen.
3. Select iNEX.
4. Select a camera and click the Setup icon
from the Setup menu and the Remote Setup screen appears. You can also display the Remote
Setup screen by selecting a camera, clicking the right mouse button and selecting Remote
Setup on the Main screen.

Camera Protocol

TM
and Open protocols.
TM
NVR.
TM
NVR is not available.
on the Main screen → Select Remote Setup
Network Camera
TM
NVR, without
on the Main screen.
9
