Appendix B: Transmitter Installation

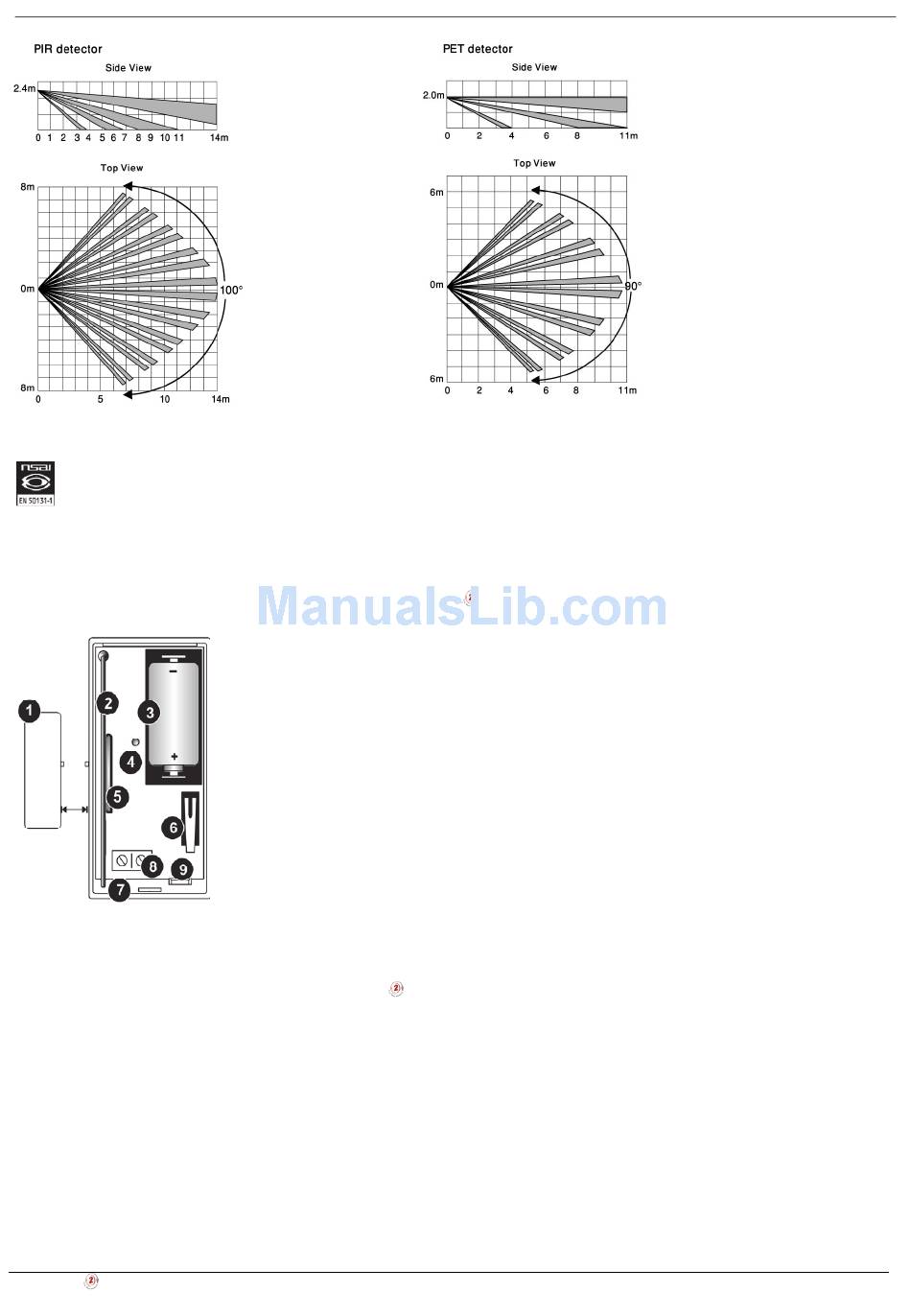

Figure B- 12: Lens Coverage Diagrams EL-4745
EL-4745 complies with EN-50131 2-2 Grade 2 Class II Power Supply Type C

Dual Magnetic Contact/Universal Transmitter (EL-4601DZ)

The EL-4601DZ is a 2-Way wireless device that can be defined either as a magnetic contact, a universal transmitter or both
in combination. The EL4601DZ is for use with the iConnect
4601DZ sends a low battery indication to the Control System.
Figure B- 14: EL-4601DZ (Cover Off)
Registration Procedure
The EL-4601DZ must identify itself to the iConnect
1. Set the system to registration mode.
• Go to the main menu and select [9]>[1]>[1] (Programming > Devices > Zones)
• Select a zone and press '√ʹ.
2. Open the detector housing by inserting a small screwdriver at the bottom of the unit between the front and back
cover and twist the screwdriver to release the cover.
3. Remove the divider separating the battery from the contacts on the battery holder. The detector will send a
transmission. If the transmission is successfully received by the system it will play a confirmation sound. If no
confirmation sound is heard send another transmission by pressing and releasing the tamper switch of the
device.
iConnect Installation Manual
Figure B- 13: Lens Coverage Diagrams EL-4745PI
Control System. When batteries need replacing, the EL-
1. Magnet
2. Antenna
3. Battery Holder
4. LED Indicator
5. Reed switch
6. Tamper Switch
7. Location of Wiring Knockout
8. PCB Release Tab
9. Terminal Block
Control System as follows:
