1. Open the transmitter housing.
2. Remove the PCB by pressing the PCB release tab.
When handling the PCB, do not apply pressure on the antenna
3. Mount the back cover using two screws and replace the PCB. Use ISO 7050 (ST3.5 x 22) or similar countersunk
screws so that the screw head will not touch the PCB.

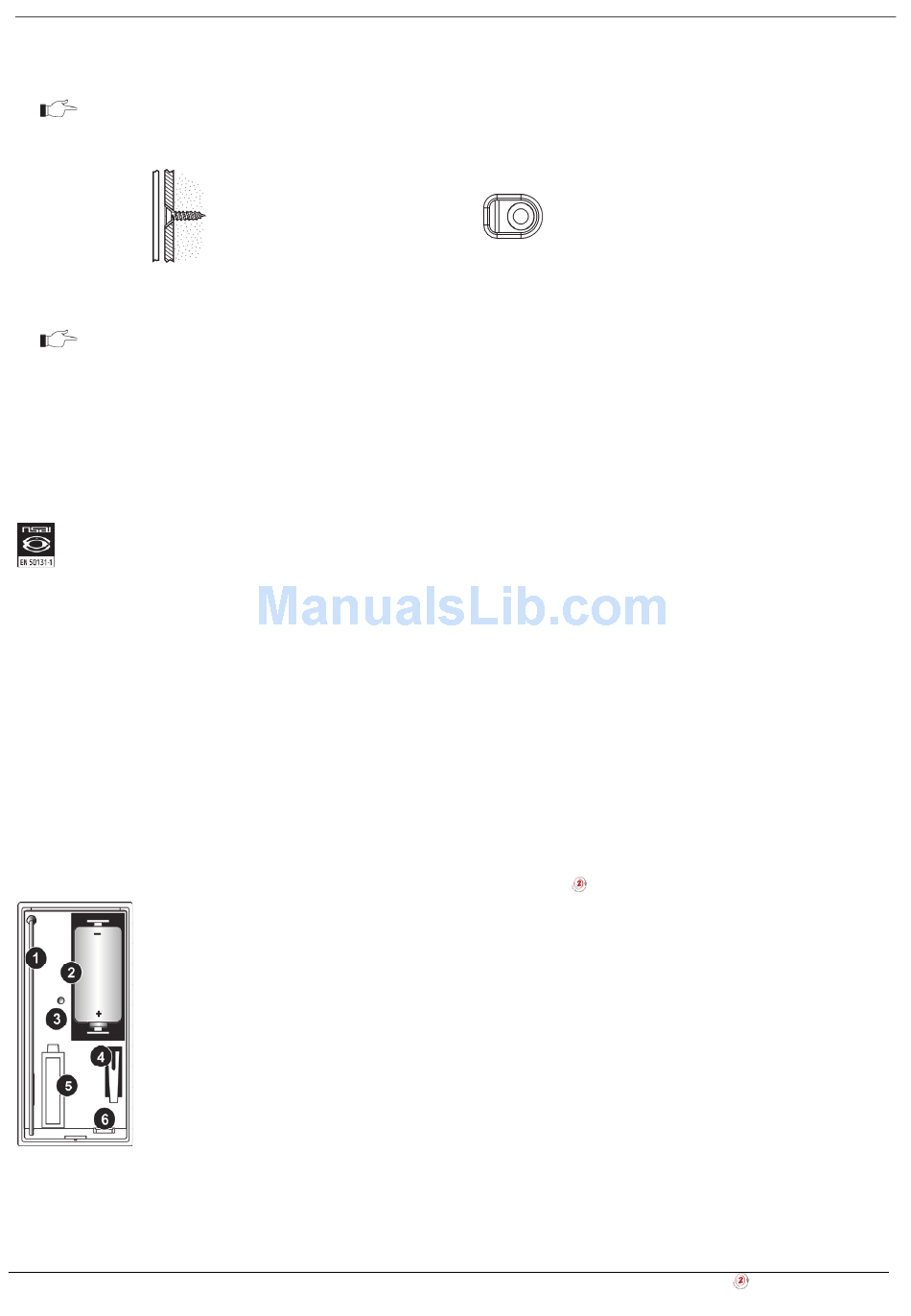

Figure B- 18: Mounting Screw Position
The upper screw is also used for back tamper. When the transmitter is removed from the
wall, the screw causes the tamper release to break away from the back cover and the rear
tamper switch is released.
4. Knockout the wiring hole in the back cover.
5. Thread the wires through the wiring hole.
6. Connect the terminal block.
7. Test the transmitter, making certain that the LED is lit during transmission.
8. Close the front cover of the transmitter.
EL-4602 complies with EN-50131 2-6 Grade 2 Class II Power Supply Type C.
Deleting a Universal Detector
To delete a Universal detector from the system:
1. Set the system to Delete mode.
• Go to the main menu and select [9]>[1]>[1] (Programming > Devices > Zones).
• Select a zone and press '√ʹ
2. Press >12 >√.
3. Open the detector and take out the battery.
4. Press the tamper switch. While the tamper switch is being pressed insert the battery.
5. Within five seconds open the tamper and close it again.

Vibration Detector (EL-4607)

The EL-4607 is a 2-Way wireless vibration detector for use with the iConnect
Figure B- 20: EL-4607 (Cover Off)
90
Figure B- 19: Rear Tamper Release
1. Antenna
2. Battery Holder
3. LED Indicator
4. Tamper Switch
5. Piezo Electric Sensor
6. PCB Release Tab
Appendix B: Transmitter Installation
Control System.
