1 Introduction
1. Interphone module connector
2. Flat-cable interface connector to communication
module
3. Programmable relay output (100mA max. load)
and jumpers for PGM control (JP3, JP4)
4. Wired detector zone (Zone 33, 34)
5. System bus terminal block (Wired Zone
Module)
6. Flat-cable interface connector to Main board
(LCD keypad, built-in speaker, microphone and
siren)

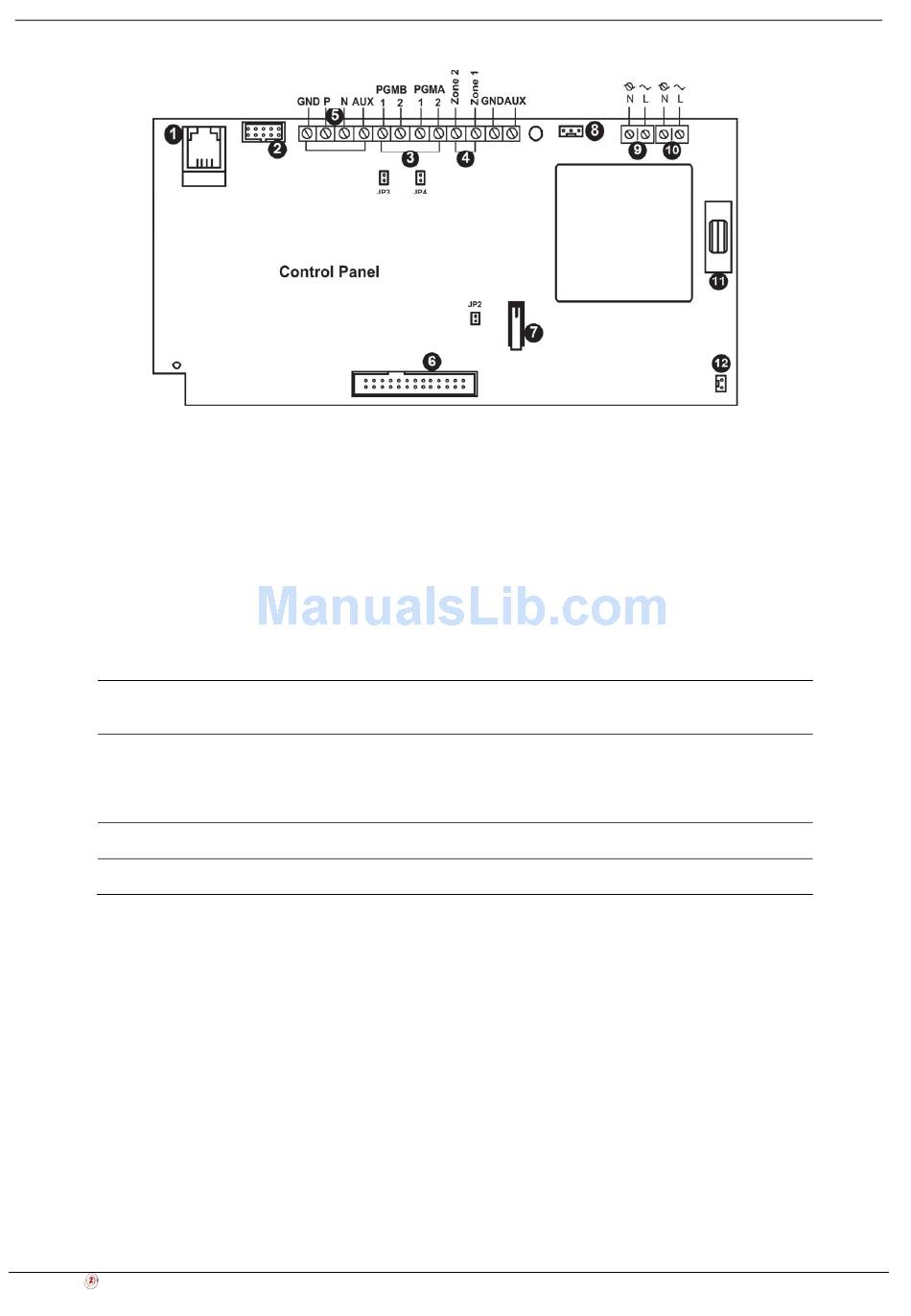

Figure 1-4: Power Supply and Connection Board
Table 1-2: Jumper Settings
JPI Siren Strength (see
Figure 1-2, Main
Panel)
JP2 Backup Battery
Protection
JP3 PGM 1
JP4 PGM 2
1.4.2. Home Automation Module
The Home Automation module provides the system with an interface to the power-line network, enabling control over
16 home automation units employing the X10 protocol via an external or internal Power-line Interface (PLI), depending
on your system configuration. The illustrations below show the HA module used in the systems with internal PLI (for
use in 220V, 50Hz A.C. power systems), and with external PLI (for use in 110V, 60Hz A.C. power systems).
iConnect Installation Manual
7.
8.
9.
10. Home Automation module terminal block
11. AC power protection fuse
12. Backup battery connector and jumper for
Installed: 105dB
Removed: 85dB
Installed: Activated (If a continuous AC power outage occurs, the panel
automatically disconnects the battery when its backup battery voltage drops to a
certain level, in order to prevent "deep discharge" that may damage the battery)
Remove: Disabled (The battery may be totally discharged during continuous AC
failure; therefore battery replacement may be required.
Installed: Open Collector
Removed: Dry Contact
Installed: Open Collector
Removed: Dry Contact
Front tamper switch
Interface connector to Home Automation
module
AC power terminal block
backup battery discharge protection (JP2)
