Appendix B: Transmitter Installation

Indoor Siren (EL-4723)

The EL-4723 is a 2-Way Wireless Indoor Siren for use with the iConnect
control system activates the siren. The Wireless Indoor Siren is sounded until the end of the control-system-programmed
siren cutoff.
Location of the Siren
Consider the following before mounting the siren:
• Choose a suitable mounting location for the siren.
• The siren should be mounted on a flat surface in a highly visible position for maximum deterrence against
potential intruders.
• Before permanently mounting the siren, test the reception from the exact mounting position.
Always wear ear protectors when installing indoor/outdoor sirens
Registration Procedure
The EL-4723 must identify itself to the iConnect
1. Set the system to registration mode.
• Go to the main menu and select [9]>[1]>[5]>[1] (Programming > Devices > Siren>WL Siren)
• Select a siren from the list (1-4) and press '√ʹ.
2. Release the mounting bracket captive locking screw.

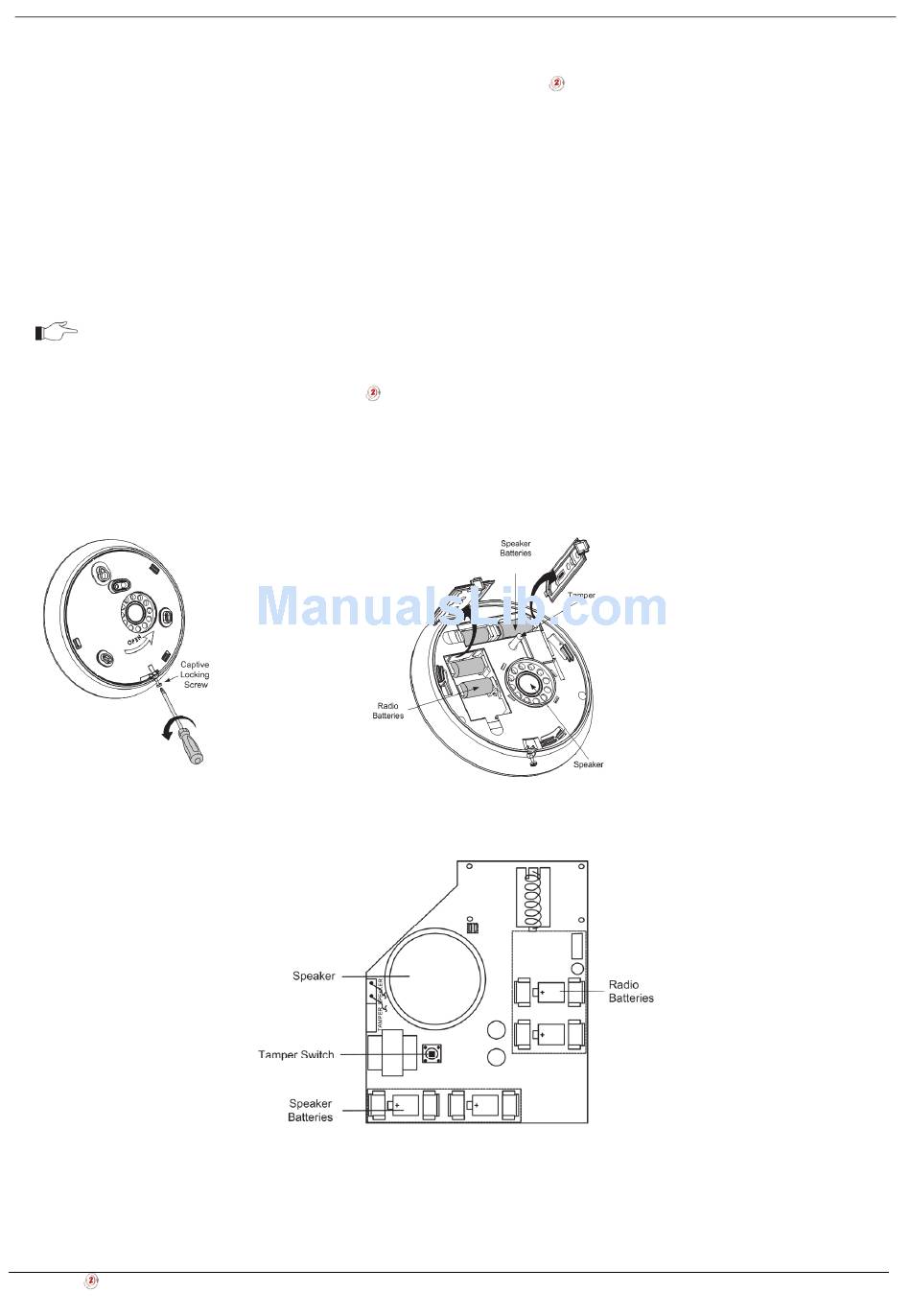

Figure B- 51: Releasing the locking screw
3. Open the housing – lift the front cover away from the rear housing.
4. Insert the batteries while paying attention to polarity.
Figure B- 53: Inserting the batteries (#2)
5. The siren will send a transmission. If the transmission is successfully received by the system it will play a
confirmation sound. If no confirmation sound is heard send another transmission by pressing and releasing
the tamper switch of the siren.
6. As soon as 'Save?' appears press '√ʹ.
