Appendix B: Transmitter Installation

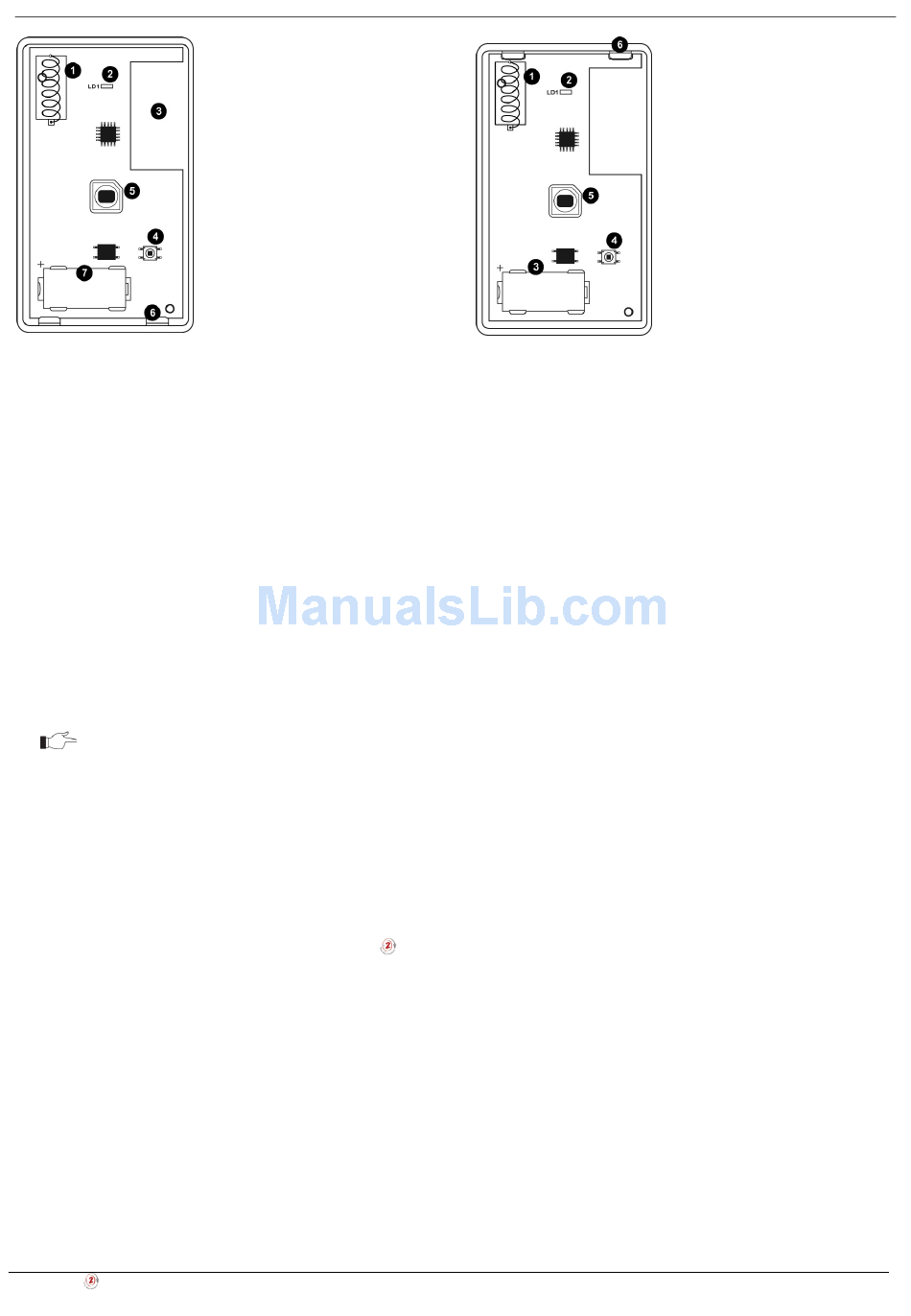

Figure B- 10: PIR Detector with Cover Removed – EL-4745
Considerations before Installation
• Select a location from which the pattern of the detector is most likely to be crossed by a burglar, should there
be a break in.
• Do not place bulky objects in front of the detector.
• Avoid a location which comes in direct contact with radiators, heating/cooling ducts, mirrors and air
conditioners.
• Do not place the detector in front of windows subject to direct sunlight or drafts.
Pet Immunity Guidelines (EL-4745PI)
It is expected that the EL-4745PI detector will eliminate false alarms caused by:
• Animals up to 36kg/80lb (EL-4745PI)
• Several small rodents
• Random flying birds
The weight of the animal should only be used as a guide, other factors such as the length
and color of fur also affect the level of immunity.
For maximum pet immunity the following guidelines are recommended:
• Mount the center of the unit at a height of 2.0m (6.5')
• Do not aim the detector at stairways that can be climbed by an animal.
• Avoid a location where an animal can come within 1.8m (6') of the detector by climbing on furniture, boxes
or other objects.
Registration Procedure
The EL-4745PI must identify itself to the iConnect
1. Set the system to registration mode.
• Go to the main menu and select [9]>[1]>[1] (Programming > Devices > Zones)
• Select a zone and press '√ʹ
2. Detach the mounting bracket from the detector.
3. Open the battery compartment door.
4. Remove the isolator that separates the battery from the contacts on the battery holder. The detector will send a
transmission. If the transmission is successfully received by the system it will play a confirmation sound. If no
confirmation sound is heard, send another transmission by pressing and releasing the tamper switch of the
device.
5. After the detector is successfully registered the display shows: Save? Press '√ʹ to confirm and continue entering
other parameters for the chosen device.
iConnect Installation Manual
1. Antenna
2. LED
3. Battery compartment
4. Tamper switch
5. Pyro sensor
6. PCB Release tab
7. Optional Battery
compartment
Control System as follows:
Figure B- 11: PIR Detector with Cover Removed – EL-
4745PI
1. Antenna
2. LED
3. Battery compartment
4. Tamper switch
5. Pyro sensor
6. PCB Release tab
