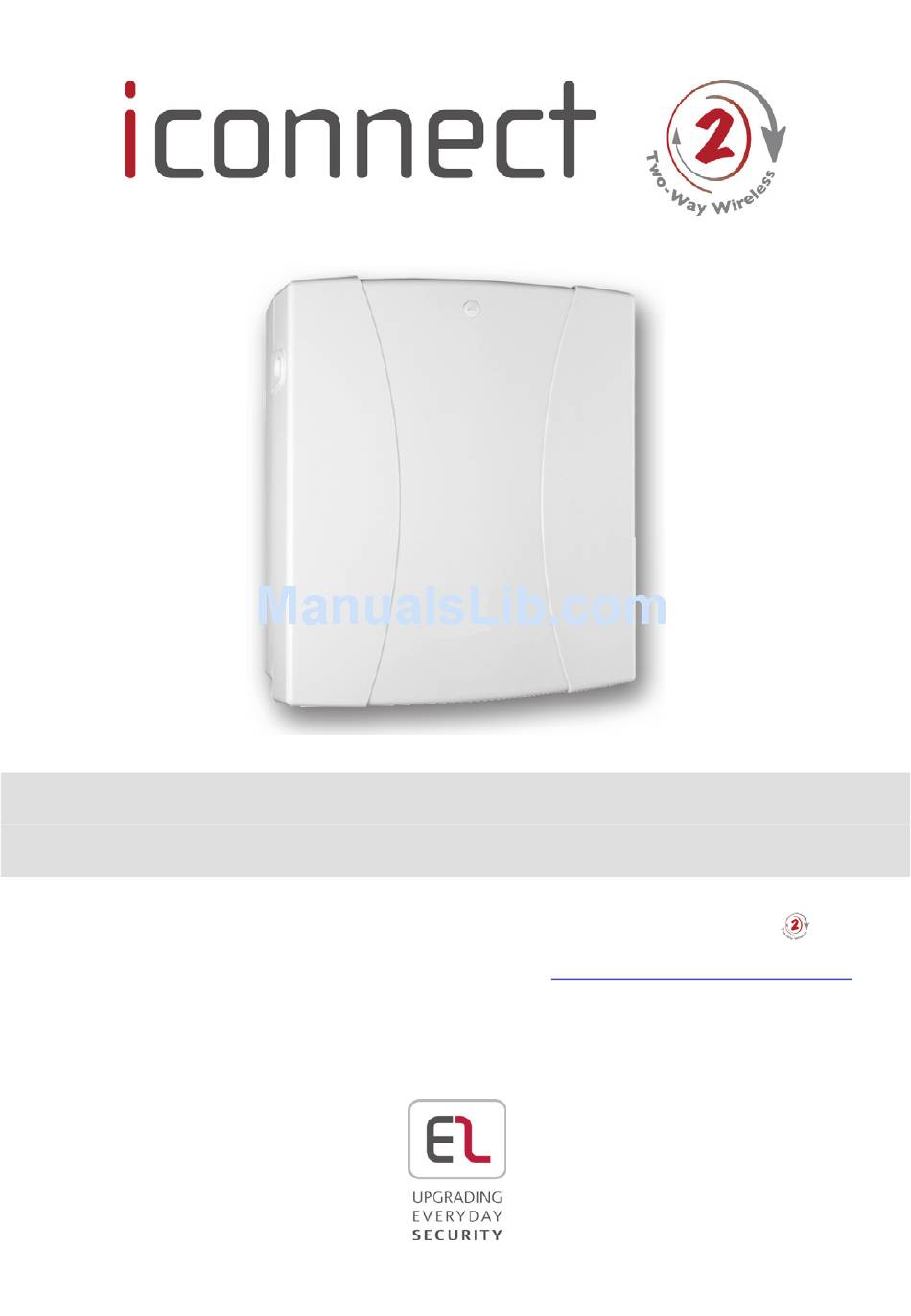

  • Page 1 2-Way Wireless I/O Expander Installation Guide For more detailed information please refer to the iConnect Installer Manual provided on our website: www.electronics-line.com...

  • Page 2: Table Of Contents

    Table of Contents Introduction ....................3 Main Features ..................... 3 2-Way Wireless I/O Expander Module Main Components ..... 4 3.1. LED Indication....................4 3.2. Box & Wall Tamper ..................5 3.2.1. Tamper Bypass ..................5 Choosing the Mounting Location ............5 Mounting the 2-Way Wireless I/O Expander Module ......

  • Page 3: Introduction

    Introduction Electronics Line’s 2-Way Wireless I/O Expander Module (EL-4770) is an extension module enabling wired devices to be connected to the iConnect 2-Way Control System (SW versions 305 and above). The iConnect 2-Way Control System supports up-to two 2-Way Wireless I/O Expander Modules.

  • Page 4: Way Wireless I/O Expander Module Main Components

    2-Way Wireless I/O Expander Module Main Components Backup battery connector Power input jack (by external AC/DC adaptor) Auxiliary parallel outputs (Aux1-2) for powering detection devices Zone inputs (loop type configurable in programming) Programmable outputs (PGM): dry contact Back tamper switch connector Tamper bypass dip switch Front case tamper switch Antenna (868 or 433)

  • Page 5: Box & Wall Tamper

    3.2. Box & Wall Tamper Box and wall tamper switches provides extra protection. If the plastic unit is opened the front tamper switch is released and an alarm is generated. In the event that the plastic unit is removed from the wall, the screw causes the perforated section of the plastic and attached tamper mechanism metal plate to break and remain attached to the wall.

  • Page 6: Mounting The 2-Way Wireless I/O Expander Module

    Mounting the 2-Way Wireless I/O Expander Module The 2-Way Wireless I/O Expander module unit consists of back and front panels and features plastic click-mounting for all internal components. Separate the sub-assemblies by pressing the circular locking plastic brackets on either side to release the front cover, see Figure 5-1 below. Figure 5-1: Box clip release Remove the circuit board (Figure 3-1) and if required open knock outs for the entry of input and power wires.

  • Page 7: Wiring The 2-Way Wireless I/O Expander Module

    6.2. Zone Input Wiring The 2-Way Wireless I/O Expander Module supports 8 hardwired zones (defined in the iConnect 2-Way Control System) that can be defined as Normally Open, Normally Closed, End of Line or Double End of Line resistor zones. Zone connection configuration must be defined accordingly at each zone’s programming parameters –...

  • Page 8: Backup Battery Connection

    Connect a PGM device to the PGM output (see Figure 3-1). PGM control configuration must be defined accordingly at each PGM’s programming parameters – please refer to the iConnect 2-Way Control System’s installation manual. 6.5. Backup Battery Connection Insert the backup battery into its place and connect the lead connector to the backup battery jack on the circuit board, see Figure 3-1.

  • Page 9: Registering The 2-Way Wireless I/O Expander Module

    Registering the 2-Way Wireless I/O Expander Module The 2-Way Wireless I/O Expander Module must identify itself to the iConnect 2-Way Control System as follows: Set the control system to registration mode. • Go to the main menu and select [9]>[1]>[6] (Programming > Devices >...

  • Page 10: Deleting A 2-Way Wireless I/O Expander Module

    Deleting a 2-Way Wireless I/O Expander Module To delete a 2-Way Wireless I/O Expander Module from the system: Set the system to Delete mode. • Go to the main menu and select [9]>[1]>[6] (Programming > Devices > Zone Expanders). • Select a 2-Way Wireless I/O Expander Module from the list (1-2) and press '√ʹ.

  • Page 11: Technical Specification

    Technical Specification Frequency: 868*MHz or 433MHz Power Input: AC/DC Adaptor 100-240V,50/60Hz/14.4VDC,1.5A Current Consumption: Typical:40 mA;65mA maximum Rechargeable Standby Battery: 12VDC±2VDC up to 7Ah, typical Auxiliary Power Outputs: 12VDC@1000mA, maximum (from all AUX terminals) PGM Relay Output Dry Contact Dry contact – 1A@30VDC,0.5A@25VDC Rating: Number of Zones: Zone Loop Type:...
  • Page 12 WARNING: This product should be tested at least once a week. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to local regulations. Contacting Electronics Line 3000 Ltd. International Headquarters: Electronics Line 3000 Ltd.
