Wireless Keypads

The system supports up to four wireless keypads, including the EL-4727 Wireless LCD Keypad. For information on
descriptor editing and deletion, see p. 35, 7.1 Device Descriptors, and p. 35, 7.2.2 Deleting and Deactivating Wireless
Devices. The EL-4727 Wireless LCD Keypad's LED functionality is described in Appendix BError! Reference source
not found..

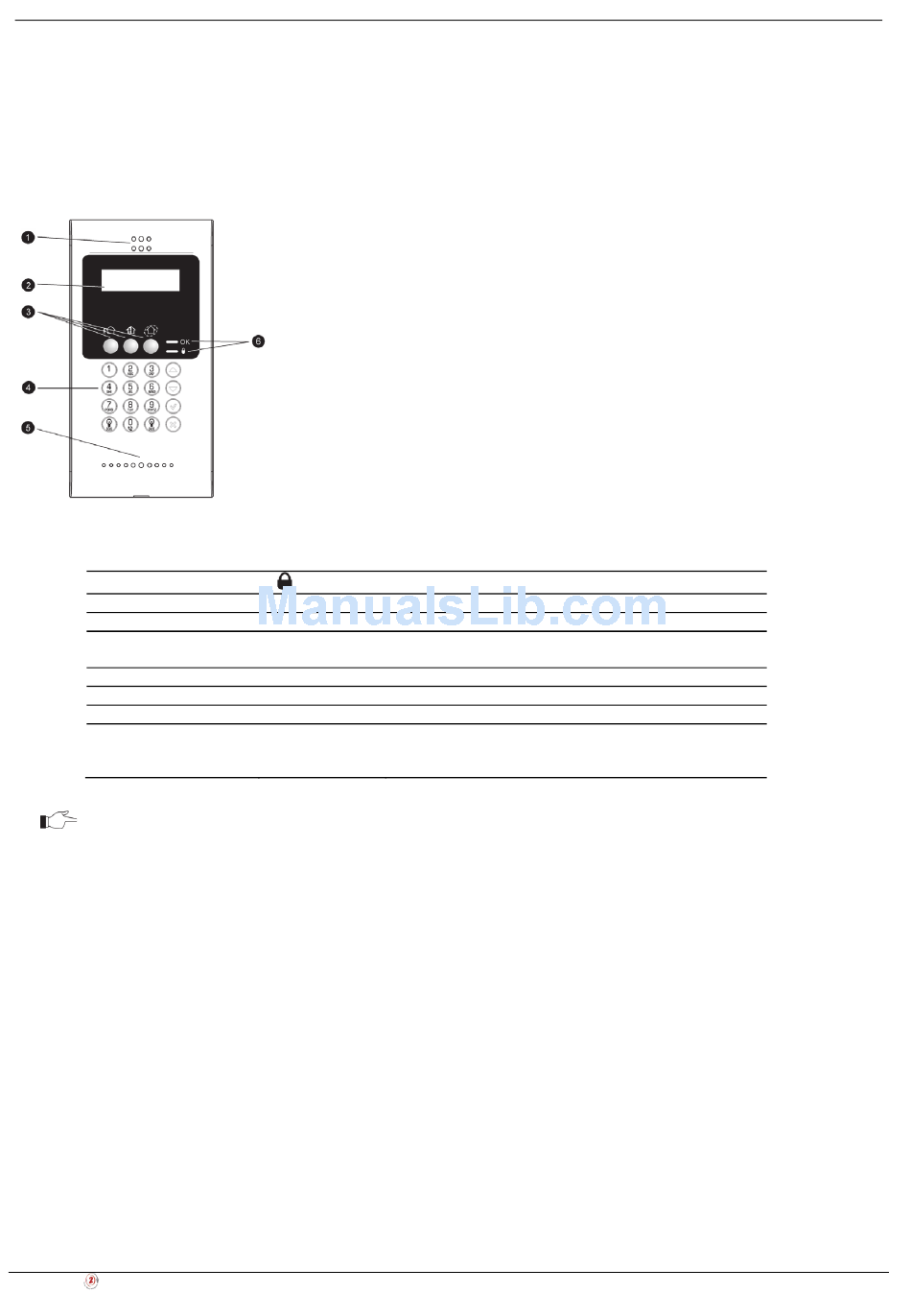

Figure 7-4: EL-4727 Wireless LCD Keypad
Table 7-2: EL-4727 System Status LEDs
OK LED Status
Off
On - Green
Flashing Yellow
(slowly)
Flashing Yellow (fast)
Alarm indication is not displayed after a silent panic alarm.
For Panic Alarm activation using the Wireless LCD Keypad, see p. 19, 3.7.8 Alarm
Activation
7.6.

Repeaters

Repeaters are designed to extend the wireless range of the Control System. Up to four repeaters may be registered to
the system with a maximum of 32 transmitters associated with each receiver. Repeater is a future option that is not
available in the current firmware.
7.7.

Wireless Siren

The Control System sends alarm and arm status information to the wireless siren's receiver. This requires that you
register the Control System to the wireless siren's receiver. For information on registration and deletion, see p. 35, 7.1
Device Descriptors, and p. 35, 7.2.2 Deleting and Deactivating Wireless Devices.
iConnect Installation Manual
1. Speaker
2. LCD Display
3. Arming Keys
4. Keypad
5. Microphone (optional)
6. System Status LEDs
LED Status Meaning
The system is disconnected from all power sources.
The keypad is powered by AC and the battery is not low.
Local backup battery low.
Wireless LCD Keypad AC loss.
Off The system is disarmed.
On - Green The system is armed.
Flashing Red An alarm has occurred. This alarm indication is reset when
the system is armed using any of the three arming
methods.
41
